Rexx - 1.1

Description

If your Mainframe application contains Rexx (z/OS TSO/E REXX) source code and you want to view these object types and their links with other objects, then you should install this extension.

The extension provides Rexx programs and routines, the calls between them and to other programs, the SQL queries run through DB2 (DSNREXX), the files accessed with EXECIO, and the links from JCL steps.

Download and installation instructions

The extension will be automatically downloaded and installed when any of the file types listed below are delivered in the source code. It can be managed through the Application → Extensions interface.

Supported file types

Files that do not look like Rexx (no REXX comment on the first line and no Rexx-only statement such as PARSE ARG) get a Rexx Program object, but their content is not analyzed.

Supported languages

Host commands are interpreted only for EXECIO, DB2 (DSNREXX) and ISPEXEC SELECT PGM. Other host environments (ISREDIT, SYSCALL, NetView, …) are analyzed as plain REXX code.

Transactions

Transaction support is derived from metamodel concepts used to build CAST Imaging Blueprint and structural transaction flows. Entry Points start transactions; Exit Points include both output/boundary concepts and Data Entities manipulated by transactions.

ISO 5055 Structural Rules

Quality support is based on ISO 5055 structural rules available for the selected extension version.

What results can you expect?

Programs, routines and calls

Each .rexx file is a Rexx Program. Each label is a Routine, or a Protected Routine when it is declared with PROCEDURE. A routine runs from its label to the next label.

Calls create a call link from the calling program or routine. The target is found as follows:

• CALL name and function calls name(...): the routine of the same file with this name. When a label is declared several times in the file, the last one is used. Otherwise, all the analyzed Rexx programs with this name. A data set member such as CALL 'MY.REXX.LIB(MYPGM)' is resolved by its member name (MYPGM). Calls to Rexx built-in functions (SUBSTR, DATE, …) and TSO/E external functions (OUTTRAP, LISTDSI, SYSDSN, …) are ignored.
• SIGNAL name and SIGNAL ON condition [NAME name]: only the routine of the same file with this name (for SIGNAL ON condition without NAME, the routine named after the condition). A SIGNAL never targets another program, and a SIGNAL to the routine it is written in (a jump back to its own label) creates no link.
• ADDRESS ISPEXEC "SELECT PGM(name)" (or a "ISPEXEC SELECT PGM(name)" command): only the analyzed Rexx programs with this name, never a routine of the same file.

When a CALL, a function call or an ISPF SELECT PGM matches no routine and no Rexx program, a Call to Generic Program object is created, which can be linked to programs of other languages (see Calls to other languages).

SQL support

The extension creates a SQL Query object for each SQL statement run through the DB2 REXX interface (DSNREXX): CALL SQLEXEC, CALL SQLXCMD and EXECSQL commands. The query is linked from the program or routine that runs it. Links from the queries to the tables, views and procedures are created by the SQL Analyzer extension.

Dynamic SQL is supported: for PREPARE ... FROM :variable and EXECUTE IMMEDIATE :variable, the query text is the value assigned to the variable, with one query for each possible value. A part whose value is not known at analysis time is replaced by {}.

For example:

/* REXX - reorganize a department */
CALL REORG
EXIT

REORG: PROCEDURE
ADDRESS DSNREXX

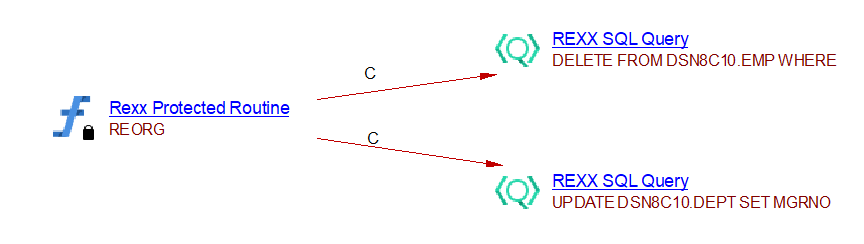

"EXECSQL UPDATE DSN8C10.DEPT SET MGRNO = NULL WHERE DEPTNO = 'E21'"
SQLSTMT = "DELETE FROM DSN8C10.EMP WHERE WORKDEPT = 'E21'"
"EXECSQL EXECUTE IMMEDIATE :SQLSTMT"
RETURN

File access (EXECIO)

EXECIO commands create a Rexx File object for each DD name, with an access read link (DISKR), an access write link (DISKW) or both (DISKRU) from the program or routine that runs the command.

For example:

/* REXX - copy the input records to the output file */
"EXECIO * DISKR INDD (STEM REC. FINIS"
"EXECIO" REC.0 "DISKW OUTDD (STEM REC. FINIS"
EXIT

Calls to other languages

Rexx programs are linked to and from programs written in other languages (COBOL, PL/I, Assembler, …) by the Web Services Linker extension. For example, the Rexx program below is linked to the COBOL program COBPGM, and a COBOL CALL 'MAINPGM' is linked to the Rexx program MAINPGM:

/* REXX - run the COBOL report program */
PARSE ARG MEMBER
CALL COBPGM MEMBER
EXIT

Objects

Type	Object Name	Creation rule
	Rexx Program	Created for each .rexx source file, named after the file.
	Rexx Routine	Created for each name: label that is not followed by PROCEDURE. Its code runs from the label to the next label.
	Rexx Protected Routine	Created for each name: PROCEDURE label. Its code runs from the label to the next label.
	Rexx File	Created once per program for each DD name read or written with EXECIO ... DISKR, DISKRU or DISKW.
CAST_Rexx_SqlQuery	Rexx SQL Query	Created for each SQL statement run with CALL SQLEXEC, CALL SQLXCMD or an EXECSQL command of ADDRESS DSNREXX, attached to the program or routine that runs it. For PREPARE ... FROM :var and EXECUTE IMMEDIATE :var, one query is created for each value assigned to the variable.
	Rexx Call to Generic Program	Created when a program or routine calls a program that is not analyzed. There is one object per caller and called name, attached to the caller.

Links

Rexx links — UA analysis

Caller type	Caller description	Link	Callee type	Callee description	Creation rule
	Rexx Program	call Link		Rexx Routine	Created when the program calls a routine of the same file with CALL name, name(...) or SIGNAL name.
	Rexx Program	call Link		Rexx Protected Routine	Created when the program calls a protected routine of the same file with CALL name, name(...) or SIGNAL name.
	Rexx Program	call Link		Rexx Program	Created when the program calls another analyzed Rexx program with CALL name, name(...) or ISPEXEC SELECT PGM(name). For CALL 'HLQ.LIB(MEMBER)', the member name is used.
	Rexx Program	call Link		REXX Call to Generic Program	Created when the program calls, with CALL name, name(...) or ISPEXEC SELECT PGM(name), a name that is not a label of the file, a Rexx or TSO built-in function, or an analyzed Rexx program.
	Rexx Program	call Link	CAST_Rexx_SqlQuery	REXX SQL Query	Created when the program runs SQL with CALL SQLEXEC, CALL SQLXCMD or an EXECSQL command.
	Rexx Program	accessRead Link		Rexx File	Created when the program reads the file with EXECIO ... DISKR or DISKRU.
	Rexx Program	accessWrite Link		Rexx File	Created when the program writes the file with EXECIO ... DISKW or DISKRU.
	Rexx Routine	call Link		Rexx Routine	Created when the routine calls a routine of the same file with CALL name, name(...) or SIGNAL name.
	Rexx Routine	call Link		Rexx Protected Routine	Created when the routine calls a protected routine of the same file with CALL name, name(...) or SIGNAL name.
	Rexx Routine	call Link		Rexx Program	Created when the routine calls another analyzed Rexx program with CALL name, name(...) or ISPEXEC SELECT PGM(name). For CALL 'HLQ.LIB(MEMBER)', the member name is used.
	Rexx Routine	call Link		REXX Call to Generic Program	Created when the routine calls, with CALL name, name(...) or ISPEXEC SELECT PGM(name), a name that is not a label of the file, a Rexx or TSO built-in function, or an analyzed Rexx program.
	Rexx Routine	call Link	CAST_Rexx_SqlQuery	REXX SQL Query	Created when the routine runs SQL with CALL SQLEXEC, CALL SQLXCMD or an EXECSQL command.
	Rexx Routine	accessRead Link		Rexx File	Created when the routine reads the file with EXECIO ... DISKR or DISKRU.
	Rexx Routine	accessWrite Link		Rexx File	Created when the routine writes the file with EXECIO ... DISKW or DISKRU.
	Rexx Protected Routine	call Link		Rexx Routine	Created when the protected routine calls a routine of the same file with CALL name, name(...) or SIGNAL name.
	Rexx Protected Routine	call Link		Rexx Protected Routine	Created when the protected routine calls a protected routine of the same file with CALL name, name(...) or SIGNAL name.
	Rexx Protected Routine	call Link		Rexx Program	Created when the protected routine calls another analyzed Rexx program with CALL name, name(...) or ISPEXEC SELECT PGM(name). For CALL 'HLQ.LIB(MEMBER)', the member name is used.
	Rexx Protected Routine	call Link		REXX Call to Generic Program	Created when the protected routine calls, with CALL name, name(...) or ISPEXEC SELECT PGM(name), a name that is not a label of the file, a Rexx or TSO built-in function, or an analyzed Rexx program.
	Rexx Protected Routine	call Link	CAST_Rexx_SqlQuery	REXX SQL Query	Created when the protected routine runs SQL with CALL SQLEXEC, CALL SQLXCMD or an EXECSQL command.
	Rexx Protected Routine	accessRead Link		Rexx File	Created when the protected routine reads the file with EXECIO ... DISKR or DISKRU.
	Rexx Protected Routine	accessWrite Link		Rexx File	Created when the protected routine writes the file with EXECIO ... DISKW or DISKRU.

Rexx links — Application level (cross-technology)

Caller type	Caller description	Link	Callee type	Callee description	Creation rule
	JCL Step	call Link		Rexx Program	Created when a JCL step, analyzed by com.castsoftware.mainframe, runs IRXJCL or IKJEFT* and names an analyzed Rexx program in PARM='...' or in its SYSTSIN input (%name or ISPSTART CMD(name)).

Quality rules

• 1.1.0-beta1 

Known limitations

The following common constructs are not supported yet:

• Programs started through a TSO command are not linked: "%NAME", "EX 'HLQ.LIB(NAME)'" (or EXEC), an exec run as an implicit TSO command (ADDRESS TSO "NAME ..."), and ISPEXEC SELECT CMD(...). Only CALL name, name(...) and ISPEXEC SELECT PGM(name) are linked.
• Load modules started with ADDRESS LINKMVS, LINKPGM, ATTCHMVS or ATTCHPGM are not linked.
• Dynamic code is not analyzed: INTERPRET, SIGNAL VALUE, and host commands held in a variable (for example ADDRESS DSNREXX CMD).
• SQL: only DB2 through DSNREXX is supported. IMS DL/I calls (ADDRESS REXXTDLI) are not.
• Files: only EXECIO is supported. ALLOC/FREE are not analyzed, so a Rexx File is named after its DD name and is not linked to the dataset. Stream I/O functions (LINEIN, LINEOUT, CHARIN, …) are not supported.
• JCL: in the SYSTSIN input, EX/EXEC commands are not supported, and a PARM using a symbolic parameter (&NAME) is not resolved.
