jOOQ - 1.0

Extension ID

com.castsoftware.jooq

What’s new?

See jOOQ - 1.0 - Release Notes  for more information.

Description

jOOQ (Java Object Oriented Query), is a library that generates Java classes based on database tables and allows the creation of type-safe SQL queries through its fluent API. This extension supports API for the jOOQ framework, which is responsible for the typical CRUD operations with the database.

In what situation should you install this extension?

If your Java application contains CRUD operations with fluent API or “raw” SQL queries in its source code provided by jOOQ packages and you want to view these object types and their links, then you should install this extension.

Technology support

Item Version Supported Supported Technology
jOOQ Up to : 3.18 ✔️ Java

jOOQ requires minimum of Java 8 to run.

Compatibility

CAST Imaging Core release Supported
8.3.x ✔️

Download and installation instructions

For JEE applications using jOOQ, the extension will be automatically installed by CAST Console. This is in place since october 2023.

For upgrade, if the Extension Strategy is not set to Auto update, you can manually install the new release using the Application - Extensions interface.

What results can you expect?

Objects

The following objects are displayed in CAST Enlighten:

Icon Description When is this object created ?

jOOQ SQL Query

An object is created for each SQL query found and resolved in a jOOQ DSLContext method call.

jOOQ Entity

An object is created for each jOOQ Entity class found which inherits from Table TableImpl.

jOOQ Entity Operation

An object is created for each CRUD operation performed on Entity.

jOOQ Unknown SQL Query

An object is created for each SQL query found and and the exact query cannot be resolved.

jOOQ Unknown Entity

An object is created when entity cannot be resolved.

jOOQ Unknown Entity Operation

An object is created when CRUD operation is performed and Entity cannot be resolved.

The following link types are created by the jOOQ extension, or by other extensions.

Link Type Caller type Callee type Methods Supported
callLink Java Method jOOQ SQL Query, jOOQ Unknown SQL Query
  • org.jooq.DSLContext.fetch
  • org.jooq.DSLContext.execute
  • org.jooq.DSLContext.query
callLink Java method jOOQ Entity Operation, jOOQ Unknown Entity Operation
  • org.jooq.ResultQuery.fetch
  • org.jooq.ResultQuery.fetchOne
  • org.jooq.ResultQuery.fetchAny
  • org.jooq.ResultQuery.fetchLazy
  • org.jooq.ResultQuery.fetchResultSet
  • org.jooq.ResultQuery.fetchStream
  • org.jooq.Query.execute
  • org.jooq.Batch.execute
  • org.jooq.ResultQuery.stream
  • org.jooq.Query.executeAsync
useLink jOOQ SQL Query Table, View Created by SQL Analyzer when DDL source files are analyzed
callLink jOOQ SQL Query Procedure
useLink jOOQ Entity Operation Table, View Created by WBS when DDL source files are analyzed by SQL Analyzer
callLink jOOQ Entity Operation Procedure
useLink jOOQ SQL Query Missing Table Created by Missing tables and procedures for JEE extension when the object is not analyzed.
callLink jOOQ SQL Query Missing Procedure

Example code scenarios

Fluent API

Fluent API Examples

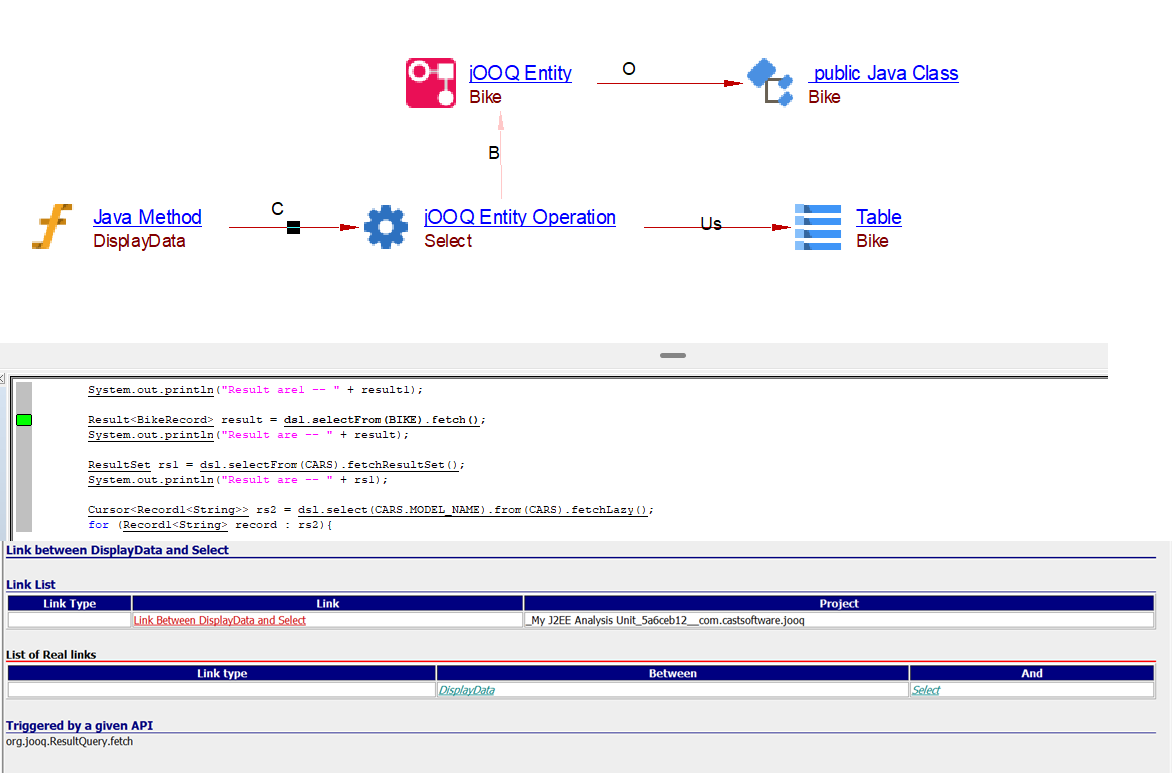

Select Operation

package com.Jooqexample.jooq;

import static com.JooQDemo.jooq.sample.model.Tables.*;
import com.JooQDemo.jooq.sample.model.tables.records.BikeRecord;
import com.JooQDemo.jooq.sample.model.tables.records.CarsRecord;
import org.jooq.*;
import org.jooq.Record;
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import java.sql.ResultSet;
import java.util.stream.Stream;

@SpringBootTest

class SpringBootJooqApplicationTests {

    @Autowired
    private DSLContext dsl;

    @Test
    void DisplayData() {
        CarsRecord Cars = dsl.selectFrom(CARS).fetchAny();
        System.out.println("Result are -- " + Cars);

        Result<Record> result0 = dsl.select().from(AIR_WAYS).fetch();
        System.out.println("Result are1 -- " + result0);

        Result<Record> result0 = dsl.select().from(CARS).stream();

        Result<Record> result1  = dsl.select().from(CARS).fetch();
        System.out.println("Result are1 -- " + result1);

        Result<BikeRecord> result = dsl.selectFrom(BIKE).fetch();
        System.out.println("Result are -- " + result);

        ResultSet rs1 = dsl.selectFrom(CARS).fetchResultSet();
        System.out.println("Result are -- " + rs1);

        Cursor<Record1<String>> rs2 = dsl.select(CARS.MODEL_NAME).from(CARS).fetchLazy();
        for (Record1<String> record : rs2){
            System.out.println("Result are fetchlazy -- " + record);
        }
        Stream<Record1<String>> rs3 = dsl.select(CARS.MODEL_NAME).from(CARS).fetchStream();

        rs3.forEach(record -> {
            System.out.println("Result are fetchStream -- " + record);
            // ...
        });

        CarsRecord Cars1 = dsl.selectFrom(CARS).where(CARS.MODEL_NAME.eq("Ertiga")).fetchOne();
        System.out.println("Result are -- " + Cars1);



    }
}




Example With Cars Entity

Example With Bike Entity

Insert Operation

    void AddData() {
        int insertedrow = dsl.insertInto(CARS).values(2,"TATA","NEXON",2012,100000000).execute();
        System.out.println("Insert Operation Row Affected are -- " + insertedrow);

        int insertedrow_bike = dsl.insertInto(BIKE).values(1,"Bajaj","Avenger",2012,150000).execute();
        System.out.println("Insert Operation Row Affected are -- " + insertedrow_bike);

        int insertedrow_bike2 = dsl.insertInto(BIKE).values(2,"Duke","KTM",2016,150000).execute();
        System.out.println("Insert Operation Row Affected are -- " + insertedrow_bike2);



    }

Delete Operation

  void DeleteData(){

        int deleterow = dsl.deleteFrom(CARS).where(CARS.ID.eq(2)).execute();
        System.out.println("Delete Operation Row Affected are -- " + deleterow);

        int deleterow_bike = dsl.deleteFrom(BIKE).where(BIKE.ID.eq(1)).execute();
        System.out.println("Delete Operation Row Affected are -- " + deleterow_bike);

    }

Update Operation

private void applyRuleFilter(HighlightDSLContext defaultDSLContext, Long aggregatedResultId, Long applicationId) {

        defaultDSLContext.update(AGGREGATED_CLOUD_TECHNOLOGY)
                .set(AGGREGATED_CLOUD_TECHNOLOGY.EXCLUSION, DSL.val(null,String.class))
                .set(AGGREGATED_CLOUD_TECHNOLOGY.MALUSRATIO, AGGREGATED_CLOUD_TECHNOLOGY.EXCLUDED_MALUSRATIO)
                .set(AGGREGATED_CLOUD_TECHNOLOGY.SCANINDICATOR, AGGREGATED_CLOUD_TECHNOLOGY.EXCLUDED_MALUSRATIO)
                .set(AGGREGATED_CLOUD_TECHNOLOGY.COUNTEDELEMENTS, AGGREGATED_CLOUD_TECHNOLOGY.EXCLUDED_COUNTEDELEMENTS)
                .where(AGGREGATED_CLOUD_TECHNOLOGY.AGGREGATED_RESULT_ID.eq(aggregatedResultId))
                .and(AGGREGATED_CLOUD_TECHNOLOGY.EXCLUSION.isNotNull())
                .execute();
}

Batch Operation

void execute_batchUpdate() {

    Result<BikeRecord> existingProjects = DSLContext.selectFrom(BIKE).where(BIKE.ID.eq(1));

    DSLContext.batchUpdate(existingProjects.stream().collect(Collectors.toList())).execute();

}

Raw SQL API

Raw SQL API Example

org.jooq.DSLContext.fetch

 // Import the necessary jOOQ classes
import org.jooq.impl.DSL;
import org.jooq.*;
import org.jooq.Record;
import static org.jooq.impl.DSL.*;

public class JooqSample {

    public static void main(String[] args) {

        String url = "jdbc:mysql://localhost:3306/vehicle";
        String uname = "root";
        String password = "mysql";
        String query = "select * from cars";

        /////////// Creating the connection with database //////////
        try {

            DSLContext context = DSL.using(url, uname, password);

            fetchRecord(context, query);


        } catch (Exception e) {
            System.out.println("\n Exception" + e);
        }

    }


    public static void fetchRecord(DSLContext context, String query) {
        try {


            Result<Record> result = context.fetch(query);
            System.out.println("Result are -- " + result);

        } catch (Exception e) {
            System.out.println("\n Exception " + e);
        }

    }

}

org.jooq.DSLContext.execute

        public static void executeRecord(DSLContext context) {
        try {


            int rowCount = context.execute("insert into cars values(100,'Hyundai','verna',2016,1500000,3)");


            System.out.println("Number of row affected are -- " + rowCount);

        } catch (Exception e) {
            System.out.println("\n Exception " + e);
        }

    }

org.jooq.DSLContext.query

    public static void queryRecord(DSLContext context) {
        try {


            Query query = context.query("insert into cars values(100,'Hyundai','verna',2016,1500000)");


            System.out.println("Number of row affected are -- " + query);

        } catch (Exception e) {
            System.out.println("\n Exception " + e);
        }

    }

Unknown SQL Query

   public static void deleteRecord(DSLContext context) {

        try {

            // Build the query
            String new_query = getQuery();
            int rowCount = context.execute(new_query);
            // Loop through the results

            System.out.println("Number of row affected are -- " + rowCount);

        } catch (Exception e) {
            System.out.println("\n Exception " + e);
        }

    }

Unknown Entity Operation

    void DisplayData() {
		String table = get_table();
		CarsRecord Cars = dsl.selectFrom(table).fetchAny();
		System.out.println("Result are -- " + Cars);

		Result<Record> result0 = dsl.select().from(AIR_WAYS).fetch();
		System.out.println("Result are1 -- " + result0);

		Result<Record> result0 = dsl.select().from(CARS).stream();

		Result<Record> result1  = dsl.select().from(CARS).fetch();
		System.out.println("Result are1 -- " + result1);

		Result<BikeRecord> result = dsl.selectFrom(BIKE).fetch();
		System.out.println("Result are -- " + result);

		ResultSet rs1 = dsl.selectFrom(CARS).fetchResultSet();
		System.out.println("Result are -- " + rs1);

		Cursor<Record1<String>> rs2 = dsl.select(CARS.MODEL_NAME).from(CARS).fetchLazy();
		for (Record1<String> record : rs2){
			System.out.println("Result are fetchlazy -- " + record);
		}
		Stream<Record1<String>> rs3 = dsl.select(CARS.MODEL_NAME).from(CARS).fetchStream();

		rs3.forEach(record -> {
			System.out.println("Result are fetchStream -- " + record);
			// ...
		});

		CarsRecord Cars1 = dsl.selectFrom(CARS).where(CARS.MODEL_NAME.eq("Ertiga")).fetchOne();
		System.out.println("Result are -- " + Cars1);


	}
