Dapper Framework - 1.0

Extension Id

com.castsoftware.dotnet.dapper

What’s new?

See Dapper Framework - 1.0 - Release Notes for more information.

Description

This extension provides support for the following:

Framework Description
Dapper Framework Dapper is a simple Object Relational Mapper (ORM) for .NET, which is responsible for mapping between database and programming language. Dapper also extends the IDbConnection by providing useful extension methods to query your database. This extension supports the framework CRUD operations and SQL queries.
Dapper Plus  (i.e. the Nuget repository Z.Dapper.Plus ) The Dapper Plus (Z.Dapper.Plus) mapper - see https://dapper-plus.net/ and https://www.nuget.org/packages/Z.Dapper.Plus/ allows mapping of the class model (Entity) with the storage model (database) and provides options to perform Bulk Actions. It extends the IDbConnection with high-performance bulk operations like BulkInsert, BulkUpdate, BulkDelete, BulkMerge etc.
Dapper.SimpleCRUD Dapper.SimpleCRUD is a small library that provides simple crud APIs for Dapper. It takes advantage of dynamic programming to make it simple to work with data.
Dapper.Contrib Dapper.Contrib is a NuGet library that extends the IDbConnection interface and adds some generic utility methods to Dapper.  It provides methods that allow less code to be written to perform basic CRUD operations.
Dapper.SqlBuilder Dapper.SqlBuilder library provides various methods to build our SQL queries dynamically. It provides various methods like .Select, .Where, .InnerJoin etc.
Dapper.FastCrud Dapper.FastCrud is a fast orm  that is built around essential features of the C# 6 / VB 14 which helps in improving the simplicity and maintenance levels of SQL operations.
Dapper.FluentMap.Dommel Dapper.FluentMap.Dommel provide API’s for resolving table and column names. Dapper.FluentMap.Dommel implements certain interfaces of Dommel and uses the configured mapping.

In what situation should you install this extension?

If your .NET application contains any source code from the frameworks listed above, and you if want to view these object types and their links, then you should install this extension. More specifically the extension will identify:

  • “callLink” from C# methods to Dapper Entity Operation objects.
  • “callLink” from C# methods to Dapper Sql Query objects.

Technology support

Item Version Supported Supported Technology Notes
Dapper 1.40.0 to 2.0.x ✔️ C# see https://www.nuget.org/packages/Dapper
Dapper Plus (Z.Dapper.Plus) up to version 4.0.31  ✔️ C# see https://www.nuget.org/packages/Z.Dapper.Plus .
Dapper.SimpleCRUD up to version 2.3.0 ✔️ C# see https://www.nuget.org/packages/Dapper.SimpleCRUD/
Dapper.Contrib up to version 2.0.78 ✔️ C# see https://www.nuget.org/packages/Dapper.Contrib/
Dapper.SqlBuilder up to version 2.0.78 ✔️ C# see https://www.nuget.org/packages/Dapper.SqlBuilder/
Dapper.FastCrud up to version 3.1.46 ✔️ C# see https://www.nuget.org/packages/Dapper.FastCrud
Dapper.FluentMap.Dommel  up to version 2.0.0 ✔️  C# see https://www.nuget.org/packages/Dapper.FluentMap.Dommel

Compatibility

CAST Imaging Core release Supported
8.3.x ✔️

Function Point, Quality and Sizing support

This extension provides the following support:

  • Function Points (transactions): a green tick indicates that OMG Function Point counting and Transaction Risk Index are supported
  • Quality and Sizing: a green tick indicates that CAST can measure size and that a minimum set of Quality Rules exist
Function Points (transactions) Quality and Sizing
✔️

Download and installation instructions

For .NET applications using Dapper, the extension will be automatically installed by CAST Console. This is in place since October 2023.

For upgrade, if the Extension Strategy is not set to Auto update, you can manually install the extension using the Application - Extensions interface.

What results can you expect?

Objects

Icon Type Description When is this object created?
Dapper SQL Query Created for each SQL query found and resolved in Dapper or Dapper SqlMapper CRUD method call
Dapper Entity Created and used when CRUD operation is found in the method call
Dapper Entity Operation Created and used when CRUD operation is performed on Dapper Entity
Dapper Unknown SQL Query Used when the query could not be resolved
Dapper Unknown Entity Created and used when the entity could not be resolved
Dapper Unknown Entity Operation Used when CRUD operation is performed and Entity could not be resolved
Link Type Caller type Callee type Methods Supported
callLink C# Method Dapper Sql Query
Dapper.SqlMapper APIs
Dapper.SqlMapper.Query
Dapper.SqlMapper.QueryAsync
Dapper.SqlMapper.QueryFirst
Dapper.SqlMapper.QueryFirstAsync
Dapper.SqlMapper.QueryFirstOrDefault
Dapper.SqlMapper.QueryFirstOrDefaultAsync
Dapper.SqlMapper.QueryMultiple
Dapper.SqlMapper.QueryMultipleAsync
Dapper.SqlMapper.QuerySingle
Dapper.SqlMapper.QuerySingleAsync
Dapper.SqlMapper.QuerySingleOrDefault
Dapper.SqlMapper.QuerySingleOrDefaultAsync
Dapper.SqlMapper.Execute
Dapper.SqlMapper.ExecuteAsync
Dapper.SqlMapper.ExecuteScalar
Dapper.SqlMapper.ExecuteReader
Dapper.SqlMapper.ExecuteScalarAsync
Dapper.SqlMapper.ExecuteReaderAsync

Dapper.SqlBuilder APIs
Dapper.SqlBuilder.AddTemplate
Dapper.SqlBuilder.GroupBy
Dapper.SqlBuilder.Having
Dapper.SqlBuilder.InnerJoin
Dapper.SqlBuilder.Intersect
Dapper.SqlBuilder.Join
Dapper.SqlBuilder.LeftJoin
Dapper.SqlBuilder.OrderBy
Dapper.SqlBuilder.OrWhere
Dapper.SqlBuilder.RightJoin
Dapper.SqlBuilder.Select
Dapper.SqlBuilder.Set
Dapper.SqlBuilder.Where
callLink C# Method Dapper Entity Operation
Z.DapperPlus APIs
Z.Dapper.Plus.DapperPlusExtensions.BulkInsert
Z.Dapper.Plus.DapperPlusExtensions.BulkMerge
Z.Dapper.Plus.DapperPlusExtensions.BulkUpdate
Z.Dapper.Plus.DapperPlusExtensions.BulkDelete

Dapper.SimpleCRUD APIs
Dapper.SimpleCRUD.DeleteAsync
Dapper.SimpleCRUD.DeleteList
Dapper.SimpleCRUD.DeleteListAsync
Dapper.SimpleCRUD.Get
Dapper.SimpleCRUD.GetAsync
Dapper.SimpleCRUD.GetList
Dapper.SimpleCRUD.GetListAsync
Dapper.SimpleCRUD.GetListPaged
Dapper.SimpleCRUD.GetListPagedAsync
Dapper.SimpleCRUD.RecordCount
Dapper.SimpleCRUD.RecordCountAsync
Dapper.SimpleCRUD.Insert
Dapper.SimpleCRUD.InsertAsync
Dapper.SimpleCRUD.Update
Dapper.SimpleCRUD.UpdateAsync

Dapper.Contrib APIs
Dapper.Contrib.Extensions.SqlMapperExtensions.Delete
Dapper.Contrib.Extensions.SqlMapperExtensions.DeleteAll
Dapper.Contrib.Extensions.SqlMapperExtensions.DeleteAllAsync
Dapper.Contrib.Extensions.SqlMapperExtensions.DeleteAsync
Dapper.Contrib.Extensions.SqlMapperExtensions.Get
Dapper.Contrib.Extensions.SqlMapperExtensions.GetAll
Dapper.Contrib.Extensions.SqlMapperExtensions.GetAllAsync
Dapper.Contrib.Extensions.SqlMapperExtensions.GetAsync
Dapper.Contrib.Extensions.SqlMapperExtensions.Insert
Dapper.Contrib.Extensions.SqlMapperExtensions.InsertAsync
Dapper.Contrib.Extensions.SqlMapperExtensions.Update
Dapper.Contrib.Extensions.SqlMapperExtensions.UpdateAsync

Dapper.FastCrud APIs
Dapper.FastCrud.DapperExtensions.BulkDelete
Dapper.FastCrud.DapperExtensions.BulkDeleteAsync
Dapper.FastCrud.DapperExtensions.BulkUpdate
Dapper.FastCrud.DapperExtensions.BulkUpdateAsync
Dapper.FastCrud.DapperExtensions.CountAsync
Dapper.FastCrud.DapperExtensions.Delete
Dapper.FastCrud.DapperExtensions.DeleteAsync
Dapper.FastCrud.DapperExtensions.Find
Dapper.FastCrud.DapperExtensions.FindAsync
Dapper.FastCrud.DapperExtensions.Get
Dapper.FastCrud.DapperExtensions.GetAsync
Dapper.FastCrud.DapperExtensions.Insert
Dapper.FastCrud.DapperExtensions.InsertAsync
Dapper.FastCrud.DapperExtensions.Update
Dapper.FastCrud.DapperExtensions.UpdateAsync
useLink Dapper Sql Query Table, View Created by SQL Analyzer when DDL source files are analyzed
callLink Dapper Sql Query Procedure As above
useLink Dapper Entity Operation Table, View Created by WBS when DDL source files are analyzed by SQL Analyzer
callLink Dapper Entity Operation Procedure As above
useLink Dapper Sql Query Missing Table Created by Missing tables and procedures for .Net extension when the object is not analyzed.
callLink Dapper Sql Query Missing Procedure As above

Code Examples

Dapper

Insert Operation1

Insert Operation

  private static void AddRecord(var builder)
            {

             var conn = new SqlConnection(builder.ConnectionString);
             int insertedUser= conn.Execute("INSERT INTO dbo.[Users] VALUES (1140481,'Andrew','Tate')");
             Console.WriteLine("'Insert' Inserted Rows: {0}", insertedUser);
             int insertedInfo= conn.Execute("INSERT INTO dbo.[Info] VALUES (1140481,'SSE','UK',6)");
             Console.WriteLine("'Insert' Inserted Rows: {0}", insertedInfo);

            }

Insert Operation2

Insert Operation2

Real caller example

 private static void method_calls()
   {
            var insertQuery= "INSERT INTO dbo.[Users] VALUES (1140481,'Andrew','Tate')";
            var updateQuery= "UPDATE dbo.[Users] SET [FirstName] = 'Andrew' WHERE [Id] = 2";
            var deleteQuery= "DELETE FROM dbo.[Users] WHERE [ID] = 1140491";
            AddRecord(builder,insertQuery);
            UpdateRecord(builder,updateQuery);
            DeleteRecord(builder,deleteQuery);

    }

 private static void AddRecord(var builder,var insertQuery)
     {

         var conn = new SqlConnection(builder.ConnectionString);
         int insertedUser= conn.Execute(insertQuery);
         Console.WriteLine("'Insert' Inserted Rows: {0}", insertedUser);
         int insertedInfo= conn.Execute("INSERT INTO dbo.[Info] VALUES (1140481,'SSE','UK',6)");
         var insert_query="INSERT INTO dbo.[Info] VALUES (1140500,'SSE','USA',7)";
         int insertedInfo1=conn.Execute(insert_query);

       }

Update Operation

Update Operation

private static void UpdateRecord(var builder)
            {
              var conn = new SqlConnection(builder.ConnectionString);
              int affectedRows = conn.Execute("UPDATE dbo.[Users] SET [FirstName] = 'John' WHERE [Id] = 3");
              Console.WriteLine("'UPDATE' Affected Rows: {0}", affectedRows);
            }

Delete Operation

Delete Operation

private static void DeleteRecord(var builder)
{
var conn = new SqlConnection(builder.ConnectionString);
int deletedRows= conn.Execute("DELETE FROM dbo.[Users] WHERE [ID]=1140481");
Console.WriteLine("'DELETE' Deleted Rows: {0}", DeletedRows);
}

Z.DapperPlus Operations

BulkInsert Operation

BulkInsert Operation

BulkInsert

public static void StepBulkInsert()
    {
        suppliers.Add(  new Supplier() { SupplierName = "BulkInsert", ContactName = "BulkInsert", Products = new List<Product>
        { new Product() {ProductName = "BulkInsert", Unit = "BulkInsert"},new Product() {ProductName = "BulkInsert", Unit = "BulkInsert"} ,new Product() {ProductName = "BulkInsert", Unit = "BulkInsert"}  }});

        products.Add(  new Product() {ProductID=321,ProductName = "BulkInsert", Unit = "BulkInsert",SupplierID=123});


        // STEP BULKINSERT
        var builder = new SqlConnectionStringBuilder();
        using (var connection = new SqlConnection(builder.ConnectionString))
        {
            connection.BulkInsert(suppliers).ThenForEach(x => x.Products.ForEach(y => y.SupplierID =  x.SupplierID)).ThenBulkInsert(x => x.Products);
            connection.BulkInsert(products);
        }
    }

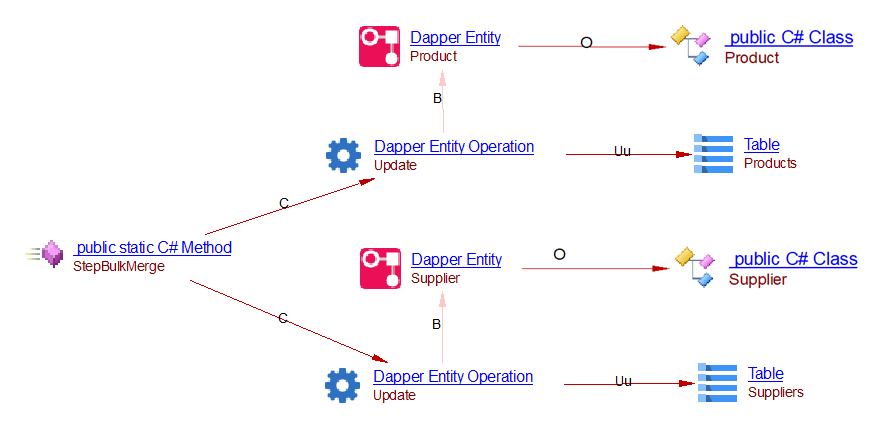

BulkMerge Operation

BulkMerge

BulkMerge

public static void StepBulkMerge()
    {
        suppliers.Add(new Supplier() { SupplierName = "BulkMerge", ContactName = "BulkMerge", Products = new List<Product>()
        { new Product() { ProductName = "BulkMerge", Unit = "BulkMerge"},  new Product() { ProductName = "BulkMerge" , Unit = "BulkMerge"} ,  new Product() { ProductName = "BulkMerge", Unit = "BulkMerge" }
        }});

        suppliers.ForEach(x =>
        {
            x.SupplierName = "BULKMERGE";
            x.Products.ForEach(y => y.ProductName = "BULKMERGE");
        });

        // STEP BULKMERGE


            var builder = new SqlConnectionStringBuilder();
            using (var connection = new SqlConnection(builder.ConnectionString))
            {
            connection.BulkMerge(suppliers).ThenForEach(x => x.Products.ForEach(y => y.SupplierID =  x.SupplierID)).ThenBulkMerge(x => x.Products);
            }


    }

BulkUpdate Operation

BulkUpdate

BulkUpdate

public static void StepBulkUpdate()
    {
        suppliers.ForEach(x =>
        {
            x.SupplierName = "BULKUPDATE";
            x.Products.ForEach(y => y.ProductName = "BULKUPDATE");
        });


        // STEP BULKUPDATE
        var builder = new SqlConnectionStringBuilder();
        using (var connection = new SqlConnection(builder.ConnectionString))
        {
            connection.BulkUpdate(suppliers, x => x.Products);
        }
    }

BulkDelete Operation

BulkDelete Operation

BulkDelete

public static void SteBulkDelete()
    {
        // STEP BULKDELETE
        var builder = new SqlConnectionStringBuilder();
        using (var connection = new SqlConnection(builder.ConnectionString))
        {
            connection.BulkDelete(suppliers.SelectMany(x => x.Products)).BulkDelete(suppliers);
        }
    }

Dapper.SimpleCRUD

Select Operation

Select Operation

Select operation

static void Main(string[] args)
    {
        DeleteSingleAuthor();
        List<Author> authors = GetAllAuthors();
        List<Book> books = GetAllBooks();
        InsertSingleAuthor();
        UpdateSingleBook();
        DeleteSingleAuthor();
        DeleteMultipleBooks();

    }

private static List<Book> GetAllBooks(string category)
    {
        var builder = new SqlConnectionStringBuilder();
        using (var conn= new SqlConnection(builder.ConnectionString))
        {
            List<Book> books = conn.GetList<Book>(new { Category = category }).ToList();
            return books;
        }
    }

Insert Operation

Insert Operation

Insert Operation

static void Main(string[] args)
    {
        DeleteSingleAuthor();
        List<Author> authors = GetAllAuthors();
        List<Book> books = GetAllBooks();
        InsertSingleAuthor();
        UpdateSingleBook();
        DeleteSingleAuthor();
        DeleteMultipleBooks();

    }


private static void InsertSingleAuthor()
    {
        var builder = new SqlConnectionStringBuilder();
        using (var conn= new SqlConnection(builder.ConnectionString))
        {
            Author author = new Author()
            {
                FirstName = "Cokie",
                LastName = "Roberts"
            };

            conn.Insert<Author>(author);
        }
      }

Update Operation

Update operation

Update operation

    static void Main(string[] args)
    {
        DeleteSingleAuthor();
        List<Author> authors = GetAllAuthors();
        List<Book> books = GetAllBooks();
        InsertSingleAuthor();
        UpdateSingleBook();
        DeleteSingleAuthor();
        DeleteMultipleBooks();

    }

    private static void UpdateSingleBook()
    {
        var builder = new SqlConnectionStringBuilder();
        using (var conn= new SqlConnection(builder.ConnectionString))
        {
            Book book = new Book { Id = 1, Title = "Introduction to AI", Category = "Software", AuthorId = 1 };
            conn.Update<Book>(book);
        }
    }


Delete Operation

Delete Operation

Delete Operation

static void Main(string[] args)
    {
        DeleteSingleAuthor();
        List<Author> authors = GetAllAuthors();
        List<Book> books = GetAllBooks();
        InsertSingleAuthor();
        UpdateSingleBook();
        DeleteSingleAuthor();
        DeleteMultipleBooks();

    }

private static void DeleteMultipleBooks()
     {
        var builder = new SqlConnectionStringBuilder();
        using (var conn= new SqlConnection(builder.ConnectionString))
        {
            conn.DeleteList<Book>("where Id > 3");
        }
     }

Dapper.Contrib

Insert Operation

Insert Operation

 private static void InsertSingleAuthor()
        {
            var builder = new SqlConnectionStringBuilder();
            using (var conn= new SqlConnection(builder.ConnectionString))
            {
                Author author = new Author()
                {
                    FirstName = "William",
                    LastName = "Shakespeare"
                };

                conn.Insert<Author>(author);
            }
        }

Update Operation

Update Operation

 private static void UpdateSingleBook()
        {
            var builder = new SqlConnectionStringBuilder();
            using (var conn= new SqlConnection(builder.ConnectionString))
            {
                Book book = new Book { Id = 1, Title = "Introduction to AI", Category = "Software", AuthorId = 1 };
                conn.Update<Book>(book);
            }
        }

Select Operation

Select Operation

 private static List<Author> GetAllAuthors()
        {
            var builder = new SqlConnectionStringBuilder();
            using ( var conn= new SqlConnection(builder.ConnectionString))
            {
                List<Author> authors = conn.GetList<Author>().ToList();
                return authors;
            }
        }

Dapper.SqlBuilder

Select Query

Select Query

private static List<Author> GetAuthors()

            {
                var builder1 = new SqlConnectionStringBuilder();
                using (var connection = new SqlConnection(builder1.ConnectionString))
                {
                    var builder = new SqlBuilder();
                    builder.Select("Id");
                    builder.Select("FirstName");
                    builder.Select("LastName");

                    var builderTemplate = builder.AddTemplate("Select /select/ from Authors");

                    var authors = connection.Query<Author>(builderTemplate.RawSql).ToList();

                    return authors;
                }
            }

InnerJoin Query

InnerJoin Query

private static List<Author> GetAuthorWithBooks()
            {
                var builder = new SqlBuilder();
                builder.Select("*");

                builder.InnerJoin("Books on Books.AuthorId=Authors.Id");

                var builderTemplate = builder.AddTemplate("Select /select/ from Authors /innerjoin/ ");

                var authorDictionary = new Dictionary<int, Author>();
                var builder1 = new SqlConnectionStringBuilder();
                using (var connection = new SqlConnection(builder1.ConnectionString))
                {
                    var authors = connection.Query<Author, Book, Author>(
                        builderTemplate.RawSql,
                        (author, book) =>
                        {
                            Author authorEntry;

                            if (!authorDictionary.TryGetValue(author.Id, out authorEntry))
                            {
                                authorEntry = author;
                                authorEntry.Books = new List<Book>();
                                authorDictionary.Add(authorEntry.Id, authorEntry);
                            }

                            authorEntry.Books.Add(book);
                            return authorEntry;
                        },
                        splitOn: "Id")
                    .Distinct()
                    .ToList();

                    return authors;
                }
            }
    }

Where Query

Where Query

private static Author GetAuthor(int id)
            {
                var builder1 = new SqlConnectionStringBuilder();
                using (var connection = new SqlConnection(builder1.ConnectionString))
                    {
                        var builder = new SqlBuilder();
                        builder.Select("Id");
                        builder.Select("FirstName");
                        builder.Select("LastName");

                        DynamicParameters parameters = new DynamicParameters();
                        parameters.Add("@MyParam", id, DbType.Int32, ParameterDirection.Input);

                        builder.Where("Id = @MyParam", parameters);

                        var builderTemplate = builder.AddTemplate("Select /select/ from Authors /where/ ");

                        var author = connection.Query<Author>(builderTemplate.RawSql, builderTemplate.Parameters).FirstOrDefault();

                        return author;
                    }
            }

Dapper.FastCrud

Insert Operation

Insert Operation

 Expand source

  private static void InsertBook()
    {
        var builder = new SqlConnectionStringBuilder();
        var dbConnection = new SqlConnection(builder.ConnectionString);
        dbConnection.Insert(new BookDbEntity() {BookID=324,BookName = "Data Structure",new StudentDbEntity(){FirstName="David", LastName="Roy"} });

    }

Update Operation

Update Operation

 private static void UpdateStudents()
    {
        var builder = new SqlConnectionStringBuilder();
        var dbConnection = new SqlConnection(builder.ConnectionString);

        students.Add(new StudentDbEntity(){StudentId=1140481,FirstName="Ishanya", LastName="Mittal",
        new TeacherDbEntity(){OnlineTeacher="Vijay Chabraa", OnlineTeacherId=32 ,ClassroomTeacher="Priyanka Alahawat " ,ClassroomTeacherId=53 }},

        new StudentDbEntity(){StudentId=1140491,FirstName="Rachit", LastName="Bansal",
        new TeacherDbEntity(){OnlineTeacher="Vijay Chabraa", OnlineTeacherId=32 ,ClassroomTeacher="Priyanka Alahawat " ,ClassroomTeacherId=53 }}
        );

        dbConnection.BulkUpdate(students);
    }

Delete Operation

Delete Operation

private static void DeleteBooks()
    {
        var builder = new SqlConnectionStringBuilder();
        var dbConnection = new SqlConnection(builder.ConnectionString);
        dbConnection.Delete(new BookDbEntity() { BookID=328, BookName = "Head First Java",new StudentDbEntity(){FirstName="Ishanya", LastName="Mittal"}});
        dbConnection.BulkDelete<BookDbEntity>();

    }

Select Operation

Select operation

private static void GetWorkstationInventoryIndex()
        {
            var queryParams = new {
                                      EmployeeFirstName = "Jane",
                                      EmplopyeeLastName = "Doe",
                                      WorkstationMinInventoryIndex = 5
                                    }
            var builder = new SqlConnectionStringBuilder();
            var dbConnection = new SqlConnection(builder.ConnectionString);
            dbConnection.Find<EmployeeDbEntity>(options => options
                    .WithAlias("em")
                    .Include<WorkstationDbEntity>(join => join
                    .WithAlias("ws")
                    .On($"{nameof(EmployeeDbEntity.WorkstationId):of em} = {nameof(WorkstationDbEntity.WorkstationId):of ws}")
                    .MapResults(true)
                    .Referencing<EmployeeDbEntity>(relationship => relationship
                        .FromAlias("em")
                        .FromProperty(employee => employee.Workstation)
                        .ToProperty(workstation => workstation.Employees))));
        }

Dommel

Overriding of table name

Table Name

This class derives from EntityMap<TEntity> and allows you to map an entity to a database table using the ToTable() method:

Overriding Table Name

public class AuthorMap : DommelEntityMap<TEntity>
{
    public AuthorMap()
    {
        ToTable("tbl_Authors");

        // ...
    }
}

Limitations

  • Objects will not be created if evaluation fails to resolve the necessary parameter.

  • The set of supported methods is limited to what is documented.
