Microsoft Enterprise Library - 1.0
Extension ID
com.castsoftware.msenterpriselibrary
What’s new?
See Microsoft Enterprise Library - 1.0 - Release Notes for more information.
Description
This extension provides support for Microsoft Enterprise Library APIs (see Methods Supported) which are responsible for typical CRUD operations with the database.
In what situation should you install this extension?
If your C# application performs SQL queries with the Microsoft Enterprise Library framework, and you want to modelize the Client/Server links with appropriate objects and links, then you should use this extension.
Technology support
Item | Version | Supported | Supported Technology | Notes |
---|---|---|---|---|
MS Enterprise Library | 2.0 to 6.0.1304 | C# | See https://www.nuget.org/packages/EnterpriseLibrary.Data | |
MS Enterprise Library SqlCe | 5.0 to 6.0.1304 | C# | See https://www.nuget.org/packages/EnterpriseLibrary.Data.SqlCe |
AIP Core compatibility
AIP Core release | Supported |
---|---|
8.3.x |
Download and installation instructions
For applications using Microsoft Enterprise Library APIs, the extension will be automatically installed by CAST Console. This is in place since October 2023.
For upgrade, if the Extension Strategy is not set to Auto update, you can manually install the extension using the Application - Extensions interface.
What results can you expect?
Objects
Icon | Type Description | When is this object created ? |
---|---|---|
MS Enterprise Library SQL Query | An object is created for each SQL query found and resolved in a MS EntLib CRUD method call | |
MS Enterprise Library Unknown SQL Query | An object is created for each SQL query found and not resolved in a MS EntLib CRUD method call |
Links created by this extension and other related extensions
Link Type | Caller type | Callee type | Methods Supported |
---|---|---|---|
callLink | C# Method | MS Enterprise Library SQL Query MS Enterprise Library Unknown SQL Query |
Supported APIsMicrosoft.Practices.EnterpriseLibrary.Data.Database.ExecuteNonQueryMicrosoft.Practices.EnterpriseLibrary.Data.Database.ExecuteScalar Microsoft.Practices.EnterpriseLibrary.Data.Database.ExecuteReader Microsoft.Practices.EnterpriseLibrary.Data.Database.ExecuteDataSet Microsoft.Practices.EnterpriseLibrary.Data.Database.LoadDataSet Microsoft.Practices.EnterpriseLibrary.Data.Database.UpdateDataSet Microsoft.Practices.EnterpriseLibrary.Data.Database.BeginExecuteNonQuery Microsoft.Practices.EnterpriseLibrary.Data.Database.BeginExecuteReader Microsoft.Practices.EnterpriseLibrary.Data.Database.BeginExecuteScalar Microsoft.Practices.EnterpriseLibrary.Data.Database.DoExecuteNonQuery Microsoft.Practices.EnterpriseLibrary.Data.Sql.SqlDatabase.ExecuteNonQuery Microsoft.Practices.EnterpriseLibrary.Data.Sql.SqlDatabase.ExecuteScalar Microsoft.Practices.EnterpriseLibrary.Data.Sql.SqlDatabase.ExecuteReader Microsoft.Practices.EnterpriseLibrary.Data.Sql.SqlDatabase.ExecuteXmlReader Microsoft.Practices.EnterpriseLibrary.Data.Sql.SqlDatabase.ExecuteDataSet Microsoft.Practices.EnterpriseLibrary.Data.Sql.SqlDatabase.LoadDataSet Microsoft.Practices.EnterpriseLibrary.Data.Sql.SqlDatabase.UpdateDataSet Microsoft.Practices.EnterpriseLibrary.Data.Sql.SqlDatabase.BeginExecuteNonQuery Microsoft.Practices.EnterpriseLibrary.Data.Sql.SqlDatabase.BeginExecuteReader Microsoft.Practices.EnterpriseLibrary.Data.Sql.SqlDatabase.BeginExecuteScalar Microsoft.Practices.EnterpriseLibrary.Data.Sql.SqlDatabase.BeginExecuteXmlReader Microsoft.Practices.EnterpriseLibrary.Data.Sql.SqlDatabase.DoExecuteNonQuery Microsoft.Practices.EnterpriseLibrary.Data.Oracle.OracleDatabase.ExecuteNonQuery Microsoft.Practices.EnterpriseLibrary.Data.Oracle.OracleDatabase.ExecuteScalar Microsoft.Practices.EnterpriseLibrary.Data.Oracle.OracleDatabase.ExecuteReader Microsoft.Practices.EnterpriseLibrary.Data.Oracle.OracleDatabase.ExecuteDataSet Microsoft.Practices.EnterpriseLibrary.Data.Oracle.OracleDatabase.LoadDataSet Microsoft.Practices.EnterpriseLibrary.Data.Oracle.OracleDatabase.UpdateDataSet Microsoft.Practices.EnterpriseLibrary.Data.Oracle.OracleDatabase.BeginExecuteNonQuery Microsoft.Practices.EnterpriseLibrary.Data.Oracle.OracleDatabase.BeginExecuteReader Microsoft.Practices.EnterpriseLibrary.Data.Oracle.OracleDatabase.BeginExecuteScalar Microsoft.Practices.EnterpriseLibrary.Data.Oracle.OracleDatabase.DoExecuteNonQuery Microsoft.Practices.EnterpriseLibrary.Data.GenericDatabase.ExecuteNonQuery Microsoft.Practices.EnterpriseLibrary.Data.GenericDatabase.ExecuteScalar Microsoft.Practices.EnterpriseLibrary.Data.GenericDatabase.ExecuteReader Microsoft.Practices.EnterpriseLibrary.Data.GenericDatabase.ExecuteDataSet Microsoft.Practices.EnterpriseLibrary.Data.GenericDatabase.LoadDataSet Microsoft.Practices.EnterpriseLibrary.Data.GenericDatabase.UpdateDataSet Microsoft.Practices.EnterpriseLibrary.Data.GenericDatabase.DoExecuteNonQuery Microsoft.Practices.EnterpriseLibrary.Data.SqlCe.SqlCeDatabase.ExecuteNonQuery Microsoft.Practices.EnterpriseLibrary.Data.SqlCe.SqlCeDatabase.ExecuteNonQuerySql Microsoft.Practices.EnterpriseLibrary.Data.SqlCe.SqlCeDatabase.ExecuteScalar Microsoft.Practices.EnterpriseLibrary.Data.SqlCe.SqlCeDatabase.ExecuteScalarSql Microsoft.Practices.EnterpriseLibrary.Data.SqlCe.SqlCeDatabase.ExecuteResultSet Microsoft.Practices.EnterpriseLibrary.Data.SqlCe.SqlCeDatabase.DoExecuteResultSet Microsoft.Practices.EnterpriseLibrary.Data.SqlCe.SqlCeDatabase.ExecuteReader Microsoft.Practices.EnterpriseLibrary.Data.SqlCe.SqlCeDatabase.ExecuteReaderSql Microsoft.Practices.EnterpriseLibrary.Data.SqlCe.SqlCeDatabase.ExecuteDataSet Microsoft.Practices.EnterpriseLibrary.Data.SqlCe.SqlCeDatabase.ExecuteDataSetSql Microsoft.Practices.EnterpriseLibrary.Data.SqlCe.SqlCeDatabase.LoadDataSet Microsoft.Practices.EnterpriseLibrary.Data.SqlCe.SqlCeDatabase.UpdateDataSet Microsoft.Practices.EnterpriseLibrary.Data.SqlCe.SqlCeDatabase.DoExecuteNonQuery |
useLink | MS Enterprise Library SQL Query | Table, View | Created by SQL Analyzer when DDL source files are analyzed |
callLink | MS Enterprise Library SQL Query | Procedure | As above |
useLink | MS Enterprise Library SQL Query | Missing Table | Created by Missing tables and procedures for .Net extension when the object is not analyzed. |
callLink | MS Enterprise Library SQL Query | Missing Procedure | As above |
Example code scenarios

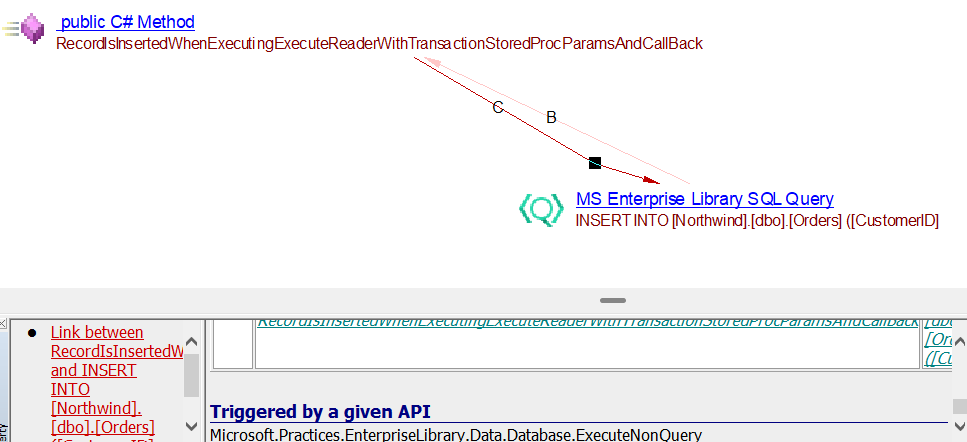

ExecuteNonQuery
public void RecordIsInsertedWhenExecutingExecuteReaderWithTransactionStoredProcParamsAndCallBack()
{
Database db = new DatabaseProviderFactory(base.ConfigurationSource).Create("DefaultSqlAsync");
DbCommand command1 = new SqlCommand();
AsyncCallback cb = new AsyncCallback(EndExecuteReaderCallBack);
DbAsyncState state;
DbTransaction transaction;
DataTable dt = new DataTable();
object[] paramsArray = { "BONAP" };
DataSet ds = db.ExecuteDataSet("CustOrdersOrders", paramsArray);
int originalCount = ds.Tables[0].Rows.Count;
try
{
using (SqlConnection connection = new SqlConnection(db.ConnectionString))
{
connection.Open();
transaction = connection.BeginTransaction();
// Execute the NonQuery insert statement synchronously.
command1.CommandType = CommandType.Text;
command1.CommandText = @"INSERT INTO [Northwind].[dbo].[Orders]
([CustomerID]
,[EmployeeID]
,[OrderDate]
,[RequiredDate]
,[ShippedDate]
,[ShipVia]
,[Freight]
,[ShipName]
,[ShipAddress]
,[ShipCity]
,[ShipRegion]
,[ShipPostalCode]
,[ShipCountry])
VALUES
('BONAP'
,1
,GETDATE()
,GETDATE()
,NULL
,2
,10
,'TestShip'
,'TestShip address'
,'Marseille'
,NULL
,'13008'
,'France')";
db.ExecuteNonQuery(command1, transaction);
// Get the records using overloaded BeginExecuteReader with stored proc and params Asynchronously with DBTransaction.
state = BeginExecuteReader(db, "CustOrdersOrders", transaction, cb, paramsArray);
dt.Load((IDataReader)state.State);
transaction.Commit();
Assert.AreEqual<int>(originalCount + 1, dt.Rows.Count);
Assert.AreEqual<ConnectionState>(ConnectionState.Open, state.AsyncResult.Connection.State);
}
}
ExecuteNonQuery
public string UpdateSC(SubComponentSavedInfo UpdateSCObject, string LoginID, Int64 DisputeID, int UpdateID)
{
string strSPNm = "dbo.dt3_web_UpdateSC";
string NewUpdateID = "";
using (DbCommand ObjDbCommand = objDB.GetStoredProcCommand(strSPNm))
{
objDB.AddInParameter(ObjDbCommand, "@SONo", DbType.String, UpdateSCObject.SoNo);
objDB.AddInParameter(ObjDbCommand, "@SOEBD", DbType.String, UpdateSCObject.SoEBD);
objDB.AddInParameter(ObjDbCommand, "@ChkSOFollowUpDate", DbType.String, UpdateSCObject.ChkSoFollowUpDate);
objDB.AddInParameter(ObjDbCommand, "@ChkSOBilledDate", DbType.String, UpdateSCObject.ChkSOBilledDate);
objDB.AddInParameter(ObjDbCommand, "@SpiritAdjustmentURL", DbType.String, UpdateSCObject.SpiritAdjUrl);
objDB.AddInParameter(ObjDbCommand, "@DeMinimisInd", DbType.String, UpdateSCObject.DeminimisInd);
objDB.AddInParameter(ObjDbCommand, "@DisputeTypeInd", DbType.String, UpdateSCObject.DisputeTypeInd);
objDB.AddInParameter(ObjDbCommand, "@UpdateID", DbType.Int32, UpdateID);
objDB.AddOutParameter(ObjDbCommand, "@NewUpdateID", DbType.String, Int32.MaxValue);
objDB.ExecuteNonQuery(ObjDbCommand);
NewUpdateID = Convert.ToString(objDB.GetParameterValue(ObjDbCommand, "NewUpdateID"));
}
return NewUpdateID;
}
ExecuteReader
public void ValuesAreReadWhenUsingInnerReader()
{
Database db = DatabaseFactory.CreateDatabase("OracleTest");
const string sqlCommand = "select * from Customers where customerId ='BLAUS'";
DbCommand dbCommandWrapper = db.GetSqlStringCommand(sqlCommand);
//IDataReader dataReader = db.ExecuteReader(CommandType.Text, sqlCommand);
using (IDataReader dataReader = db.ExecuteReader(dbCommandWrapper))
{
using (OracleDataReader orareader = ((OracleDataReaderWrapper)dataReader).InnerReader)
{
Assert.IsNotNull(orareader);
int n = orareader.GetOrdinal("customerId");
while (dataReader.Read())
{
string str1 = orareader.GetOracleValue(n).ToString();
string str = ((string)dataReader[0]).Trim();
Assert.AreNotSame(str1, str);
}
}
}
}
ExecuteScalar
public void AllRecordsAreReturnedWhenExecutingExecuteXmlReaderWithSqlCommandAndWithCallBack()
{
DbAsyncState state;
DataTable dt = new DataTable();
DbCommand command = new SqlCommand();
DbCommand command1 = new SqlCommand();
AsyncCallback cb = new AsyncCallback(EndExecuteXmlReaderCallBack);
int rowCount = 0;
SqlDatabase db = new DatabaseProviderFactory(base.ConfigurationSource).Create("DefaultSqlAsync") as SqlDatabase;
//Get the row count synchronously.
command1.CommandType = CommandType.Text;
command1.CommandText = "SELECT count(*) FROM Employees";
int originalCount = (int)db.ExecuteScalar(command1);
// Get the data Asynchronously.
command.CommandType = CommandType.Text;
command.CommandText = "SELECT * FROM Employees FOR XML AUTO, XMLDATA";
state = BeginExecuteXmlReader(db, command, cb);
}
ExecuteDataSet
public void ResultsAreReturnedWhenExecutingAsyncStoredProcAccessor()
{
Database db = new DatabaseProviderFactory(base.ConfigurationSource).Create("DefaultSqlAsync");
DataAccessor<TopTenProduct> accessor = db.CreateSprocAccessor<TopTenProduct>("Ten Most Expensive Products");
AsyncCallback cb = new AsyncCallback(EndExecuteAccessor<TopTenProduct>);
DbAsyncState state = new DbAsyncState(db, accessor);
IAsyncResult result = accessor.BeginExecute(cb, state);
state.AutoResetEvent.WaitOne(new TimeSpan(0, 0, 15));
IEnumerable<TopTenProduct> resultSet = (IEnumerable<TopTenProduct>)state.State;
object[] paramsArray = { };
DataSet ds = db.ExecuteDataSet("Ten Most Expensive Products", paramsArray);
Assert.IsNull(state.Exception);
Assert.AreEqual<int>(ds.Tables[0].Rows.Count, resultSet.Count());
}
UpdateDataSet
public void TestUpdateDatasetMethod()
{
SqlCeDatabase db = (SqlCeDatabase)database;
DataSet dataSet = new DataSet();
db.UpdateDataSet(dataSet, "Region", "insert into region values (99, 'Midwest')", "UPDATE region SET RegionDescription=@RegionDescription WHERE RegionID=@RegionId",
"Delete from Region where RegionId = 99", "Incremental");
}
ExecuteXmlReader
public void CanExecuteXmlQueryThroughTransaction()
{
string insertString = "insert into region values (99, 'Midwest')";
DbCommand insertCommand = sqlDatabase.GetSqlStringCommand(insertString);
string queryString = "Select * from Region for xml auto";
SqlCommand sqlCommand = sqlDatabase.GetSqlStringCommand(queryString) as SqlCommand;
string actualOutput = "";
using (DbConnection connection = sqlDatabase.CreateConnection())
{
connection.Open();
using (RollbackTransactionWrapper transaction = new RollbackTransactionWrapper(connection.BeginTransaction()))
{
sqlDatabase.ExecuteNonQuery(insertCommand, transaction.Transaction);
XmlReader results = sqlDatabase.ExecuteXmlReader(sqlCommand, transaction.Transaction);
results.MoveToContent();
for (string value = results.ReadOuterXml(); value != null && value.Length != 0; value = results.ReadOuterXml())
{
actualOutput += value;
}
results.Close();
}
}
}
BeginExecuteReader
protected override void Act()
{
var asyncResult = database.BeginExecuteReader("Ten Most Expensive Products", null, null);
var reader = database.EndExecuteReader(asyncResult);
reader.Dispose();
}
BeginExecuteScalar
public class WhenAsynchronouslyInvokingExecuteScalarOnSproc : AsynchronousConnectionContext
{
IAsyncResult asyncResult;
protected override void Arrange()
{
base.Arrange();
asyncResult = database.BeginExecuteScalar("Ten Most Expensive Products", null, null);
}
}
BeginExecuteNonQuery
public class WhenAsynchronouslyInvokingBeginExecuteNonQueryOnSproc : AsynchronousConnectionContext
{
IAsyncResult asyncResult;
protected override void Arrange()
{
base.Arrange();
asyncResult = database.BeginExecuteNonQuery("Ten Most Expensive Products", null, null);
}
}
BeginExecuteXmlReader
public class WhenAsynchronouslyInvokingExecuteXmlReader : AsynchronousConnectionContext
{
private readonly Barrier barrier = new Barrier(2);
private XmlReader reader;
protected override void Arrange()
{
base.Arrange();
string queryString = "Select * from Region for xml auto, xmldata";
SqlCommand sqlCommand = database.GetSqlStringCommand(queryString) as SqlCommand;
database.BeginExecuteXmlReader(sqlCommand,
ar =>
{
barrier.Await();
reader = database.EndExecuteXmlReader(ar);
barrier.Await();
}, null);
}
DoExecuteNonQuery
public static void DoExecuteResultSetOracleSample(Database db)
{
db.DoExecuteNonQuery("insert into Region values (99, 'Midwest');");
}
LoadDataSet
public static void LoadTestData(Database database)
{
SqlCeDatabase db = (SqlCeDatabase)database;
db.LoadDataSet("insert into Region values (99, 'Midwest');");
}
ExecuteScalarSql
public void SimplifiedExecuteScalarWithParameters()
{
string sql = "select count(*) from region where regionId=" + db.BuildParameterName("regionId");
int result = (int)db.ExecuteScalarSql(sql, db.CreateParameter("regionId", DbType.Int32, 0, 2));
Assert.AreEqual(1, result);
}
ExecuteNonQuerySql
public void AlternateSqlStatementWithParameters()
{
string sql = "insert into region values ({0}, {1})";
sql = String.Format(sql, db.BuildParameterName("regionId"), db.BuildParameterName("description"));
DbParameter[] parameters = new DbParameter[]
{
db.CreateParameter("regionId", DbType.Int32, 0, 99),
db.CreateParameter("description", DbType.String, 20, "test value")
};
db.ExecuteNonQuerySql(sql, parameters);
}
Unknown
public int GetIssuersCount(string cusip, string name, string ticker)
{
LogHelper lLogger = new LogHelper();
int resultvalues = 0;
try
{
if (!string.IsNullOrEmpty(cusip))
_sqlDB.AddInParameter(dbCommand, "@Cusip", SqlDbType.Char, cusip);
if (!string.IsNullOrEmpty(name))
_sqlDB.AddInParameter(dbCommand, "@Name", SqlDbType.VarChar, name);
if (!string.IsNullOrEmpty(ticker))
_sqlDB.AddInParameter(dbCommand, "@Ticker", SqlDbType.VarChar, ticker);
resultvalues = (int)_sqlDB.ExecuteScalar(dbCommand);
}
catch (Exception ex)
{
lLogger.LogError(ex.ToString());
throw new ApplicationException(Properties.Settings.Default.DBExceptionUserFriendlyMessage);
}
return resultvalues;
}
Limitations
- The support works when the Microsoft Enterprise Library is used directly, that is, not through a custom wrapper delivered as an assembly.
