ADODB.NET - 1.0

Extension ID

com.castsoftware.dotnet.adodb

What’s new?

See ADODB.NET - 1.0 - Release Notes for more information.

Description

This extension provides support for Microsoft ADODB Library APIs which are responsible for typical CRUD operations with the database.

Technology support

Item Version Supported Supported Technology Notes
Microsoft Data Access Components (MDAC) 1.0 to 2.8 SP2 ✔️ C# See https://en.wikipedia.org/wiki/Microsoft_Data_Access_Components#Version_checkingexternal link
Windows DAC 6.0 6.0 ✔️ C# DAC 6.0 is a variant of MDAC for use with Vista
Microsoft ActiveX Data Objects 2.0 to 2.8 and 6.0 to 6.1 ✔️ C# See https://learn.microsoft.com/en-us/sql/ado/guide/referencing-the-ado-libraries?view=sql-server-ver16&source=recommendations
ADOR 2.8 & 6.0 ✔️ C# APIs are similar to that of ADODB; the namespace is ADOR
ADODB Custom Nuget Package 7.10.3077 ✔️ C# See https://www.nuget.org/packages/ADODBexternal link NOTE: This is not a Microsoft package. It’s no longer available to download. However, the APIs are supported.

Compatibility

CAST Imaging Core release Supported
 ≥ 8.3.x ✔️

Download and installation instructions

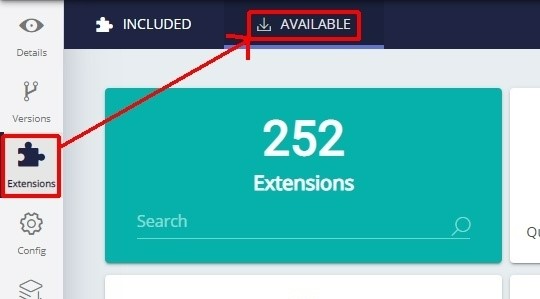

For applications using ADODB Library APIs, the extension needs to be installed manually in CAST Imaging Console.

Any ADODB ActiveX , assembly or Nuget package used to develop the application must be provided along with the source code for analysis.

What results can you expect?

Objects

Icon Description
DotNet ADODB SQL Query
DotNet ADODB Unknown SQL Query

An object is created for each SQL query found and resolved in a ADODB CRUD method call

Link Type Caller type Callee type Methods Supported
callLink C# Method DotNet ADODB SQL Query
DotNet ADODB Unknown SQL Query
Supported APIsADODB.ConnectionClass.Execute
ADODB.Connection15.Execute
ADODB.Connection.Execute
ADODB._Connection.Execute
ADODB.CommandClass.Execute
ADODB.Command.Execute
ADODB.Command15.Execute
ADODB.Command25.Execute
ADODB._Command.Execute
ADODB.RecordsetClass.AddNew
ADODB.RecordsetClass.Delete
ADODB.RecordsetClass.Find
ADODB.RecordsetClass.GetRows
ADODB.RecordsetClass.Update
ADODB.RecordsetClass.UpdateBatch
ADODB.Recordset15.AddNew
ADODB.Recordset15.Delete
ADODB.Recordset15.Find
ADODB.Recordset15.GetRows
ADODB.Recordset15.Update
ADODB.Recordset15.UpdateBatch
ADODB.Recordset20.AddNew
ADODB.Recordset20.Delete
ADODB.Recordset20.Find
ADODB.Recordset20.GetRows.
ADODB.Recordset20.Update
ADODB.Recordset20.UpdateBatch
ADODB.Recordset21.AddNew
ADODB.Recordset21.Delete
ADODB.Recordset21.Find
ADODB.Recordset21.GetRows
ADODB.Recordset21.Update
ADODB.Recordset21.UpdateBatch
ADODB._Recordset.AddNew
ADODB._Recordset.Delete
ADODB._Recordset.Find
ADODB._Recordset.GetRows
ADODB._Recordset.Update
ADODB._Recordset.UpdateBatch
ADODB.Fields.Append
ADODB.Fields.Delete
ADODB.Fields.Update
ADODB.Fields._Append
ADODB.Fields20._Append
ADODB.Fields20.Delete
ADOR._Recordset.AddNew
ADOR._Recordset.Delete
ADOR._Recordset.Find
ADOR._Recordset.GetRows
ADOR._Recordset.Update
ADOR._Recordset.UpdateBatch
ADOR.Fields.Delete
ADOR.Fields.Update
useLink DotNet ADODB SQL Query Table, View Created by SQL Analyzer when DDL source files are analyzed
callLink DotNet ADODB SQL Query Procedure As above
useLink DotNet ADODB SQL Query Missing Table Created by Missing tables and procedures for .Net extension when the object is not analyzed.
callLink DotNet ADODB SQL Query Missing Procedure As above

Example code scenarios

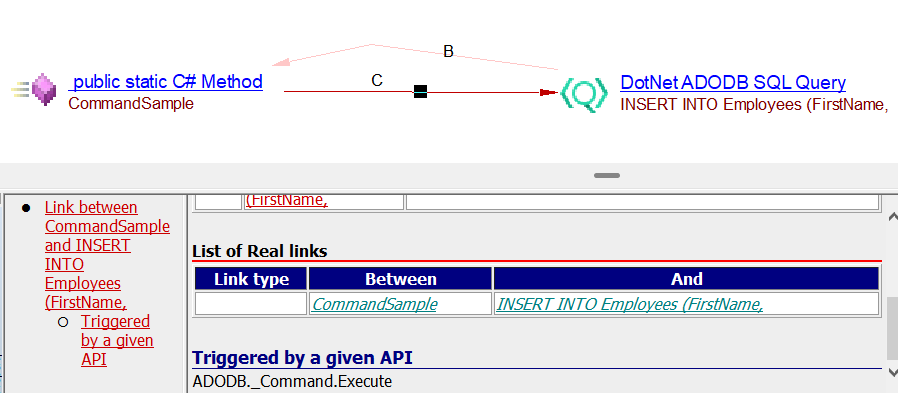

Execute

Sample code for Execute API

public static void CommandSample()
    {
        /// Create a Connection object
        Connection conn = new Connection();
        conn.Open("Provider=Microsoft.Jet.OLEDB.4.0;Data Source=C:\\Northwind.mdb");
        // Create a Command object
        _Command cmd = new Command();
        cmd.ActiveConnection = conn;

        // Specify the SQL command to execute
        cmd.CommandText = "INSERT INTO Employees (FirstName, LastName, Title) VALUES (?, ?, ?)";

        // Add parameters to the command
        cmd.Parameters.Append(cmd.CreateParameter("FirstName", DataTypeEnum.adVarChar, ParameterDirectionEnum.adParamInput, 10, "John"));
        cmd.Parameters.Append(cmd.CreateParameter("LastName", DataTypeEnum.adVarChar, ParameterDirectionEnum.adParamInput, 20, "Smith"));
        cmd.Parameters.Append(cmd.CreateParameter("Title", DataTypeEnum.adVarChar, ParameterDirectionEnum.adParamInput, 30, "Manager"));

        // Execute the command
        object recordsAffected;
        object missing = Type.Missing;
        cmd.Execute(out recordsAffected, ref missing, (int)ExecuteOptionEnum.adExecuteNoRecords);

        Console.WriteLine("Record inserted successfully. Records affected: " + recordsAffected);
    }

Update

Sample code for Update

static void UpdateBatchSample()
    {
        string connectionString = "Provider=Microsoft.Jet.OLEDB.4.0;Data Source=Northwind.mdb;";
        Connection connection = new Connection();
        Recordset rsTitles = new Recordset();

        // Open connection
        connection.Open(connectionString);

        // Open titles table.
        rsTitles.Open("select * from shippers", connection, CursorTypeEnum.adOpenKeyset, LockTypeEnum.adLockBatchOptimistic, -1);

        // Move to the first record
        rsTitles.MoveFirst();

        // Loop through recordset
        while (!rsTitles.EOF)
        {
            string name = rsTitles.Fields["CompanyName"].Value.ToString();
            if (name == "Speedy Express")
            {

                char chKey = Console.ReadKey().KeyChar;
                if (char.ToUpper(chKey) == 'Y')
                {
                    // Change type to other value.
                    rsTitles.Fields["name"].Value = "SuperFast Express";
                }
            }
            rsTitles.MoveNext();
        }

        // UpdateBatch to commit changes
        rsTitles.UpdateBatch(AffectEnum.adAffectAll);

        // Close recordset and connection
        rsTitles.Close();
        connection.Close();


    }

Select

Sample code for Select

static void Main()
    {
        string connectionString = "Provider=Microsoft.Jet.OLEDB.4.0;Data Source=Northwind.MDB;";

        // Create a Connection object
        Connection connection = new Connection();
        connection.Open(connectionString);

        // Create a new ADODB.Recordset
        Recordset recordset = new Recordset();
        recordset.ActiveConnection = connection;
        recordset.Source = "SELECT * FROM Products";
        recordset.Open();

        // Add a new field to the recordset
        Fields fields = recordset.Fields;
        fields.Append("NewField", DataTypeEnum.adVarChar, 50, FieldAttributeEnum.adFldUpdatable);

        // Update the recordset with the new field
        fields.Update();

        // Add a new record to the recordset with FieldList and Values parameters
        object fieldList = new object[] { "ProductName", "NewField" };
        object values = new object[] { "NewProduct", "NewValue" };

        recordset.AddNew(fieldList, values);
        recordset.Update();

        // Find a specific record by ProductName
        recordset.Find("ProductName = 'NewProduct'", 0, SearchDirectionEnum.adSearchForward, Type.Missing);

        // Close the connection
        connection.Close();

    }

Delete

Sample code for Delete API

static void FieldDeletionSample()
{
    // Initialize ADODB objects
    Connection conn = new Connection();
    Recordset rs = new Recordset();

    conn.Open("Provider=Microsoft.Jet.OLEDB.4.0;Data Source=C:\\Northwind.mdb");

    // Open a recordset for Region table
    rs.Open("SELECT * FROM Region", conn, CursorTypeEnum.adOpenDynamic, LockTypeEnum.adLockOptimistic, -1);

    Fields fields = rs.Fields;

    // Check if the recordset contains the "RegionDescription" and "Desc" fields
    if (fields["RegionDescription"] != null)
    {
        // Delete the Desc field
        fields.Delete("RegionDescription");

        // Update the recordset
        rs.Update();

    }

    // Clean up
    rs.Close();
    conn.Close();

 }

Unknown

Sample code for Execute API

public static void ExecuteSample()
        {
            // Initialize ADODB objects
            Connection conn = new Connection();
            Recordset rs = new Recordset();

            try
            {
                // Execute SQL queries or commands
            string sqlQuery = "INSERT INTO Customers (ID, Name, Age) VALUES (1, 'Will', 35)";
            conn.Execute(sqlQuery);

            Console.WriteLine("Record inserted successfully.");

            // Update a record
            conn.Execute(sqlUpdates);
            }
            catch (Exception ex)
            {
                Console.WriteLine("Error: " + ex.Message);
            }
            finally
            {
                // Clean up
                rs.Close();
                conn.Close();
            }
        }

Limitations

  • The support works when the ADODB Library is used directly, that is, not through a custom wrapper delivered as an assembly.
