RDBMS Move to Cloud - 1.0

Extension ID


What’s new?

Please see RDBMS Move to Cloud - 1.0 - Release Notes  for more information.


This extension provides a dedicated set of quality rules (i.e. recommendations) that have been designed to help plan a modernization project for taking an on premise RDBMS to the Cloud or to migrate to another RDBMS. You should install this extension:

  • If you need to have a set of recommendations because you plan to move from Oracle Database to Oracle Cloud
  • If you need to have a set of recommendations because you plan to move from Oracle / DB2 / SQL Server Database to PostgreSQL
  • If you need to have a set of recommendations because you plan to move from DB2 Database to MySQL

Results are shown in CAST Imaging and the CAST Engineering Dashboard. You can view the rules provided in this extension in the “Structural Rules” section below.

When in the same analysis result you mix 2 RDBMS files, the rules for both RDBMS are calculated. E.g.: analyzing DB2 and Oracle SQL files will trigger Oracle and DB2 quality rules.

When vendor is not detected and file is considered ANSI sql, those quality rules are not calculated.

Function Point, Quality and Sizing support

This extension provides the following support:

  • Function Points (transactions): a green tick indicates that OMG Function Point counting and Transaction Risk Index are supported
  • Quality and Sizing: a green tick indicates that CAST can measure size and that a minimum set of Quality Rules exist
Function Points
Quality and Sizing (tick)

AIP Core compatibility

This extension is compatible with:

AIP Core release Supported
8.3.x (tick)

Dependencies with other extensions

Some CAST extensions require the presence of other CAST extensions in order to function correctly. The RDBMS Move to Cloud extension requires that the following other CAST extensions are also installed:

Note that when using CAST Console to download and install the extension, any dependent extensions are automatically downloaded and installed.


Item Description
(tick) An installation of any compatible release of AIP Core (see table above).
(tick) An installation of SQL Analyzer extension (≥ 3.6.7).

Download and installation instructions

The extension will not be automatically downloaded and installed in CAST Console. If you need to use it, should manually install the extension using the Application - Extensions interface:

What results can you expect?

Structural rules

Release Link
1.0.1-funcrel https://technologies.castsoftware.com/rules?sec=srs_sql.movetocloud&ref=||1.0.1-funcrel
1.0.0-funcrel https://technologies.castsoftware.com/rules?sec=srs_sql.movetocloud&ref=||1.0.0-funcrel
1.0.0-beta9 https://technologies.castsoftware.com/rules?sec=srs_sql.movetocloud&ref=||1.0.0-beta9
1.0.0-beta8 https://technologies.castsoftware.com/rules?sec=srs_sql.movetocloud&ref=||1.0.0-beta8
1.0.0-beta7 https://technologies.castsoftware.com/rules?sec=srs_sql.movetocloud&ref=||1.0.0-beta7
1.0.0-beta6 https://technologies.castsoftware.com/rules?sec=srs_sql.movetocloud&ref=||1.0.0-beta6
1.0.0-beta5 https://technologies.castsoftware.com/rules?sec=srs_sql.movetocloud&ref=||1.0.0-beta5
1.0.0-beta4 https://technologies.castsoftware.com/rules?sec=srs_sql.movetocloud&ref= ||1.0.0-beta4
1.0.0-beta3 https://technologies.castsoftware.com/rules?sec=srs_sql.movetocloud&ref= ||1.0.0-beta3
1.0.0-beta2 https://technologies.castsoftware.com/rules?sec=srs_sql.movetocloud&ref= ||1.0.0-beta2
1.0.0-beta1 https://technologies.castsoftware.com/rules?sec=srs_sql.movetocloud&ref= ||1.0.0-beta1

CAST Imaging Viewer

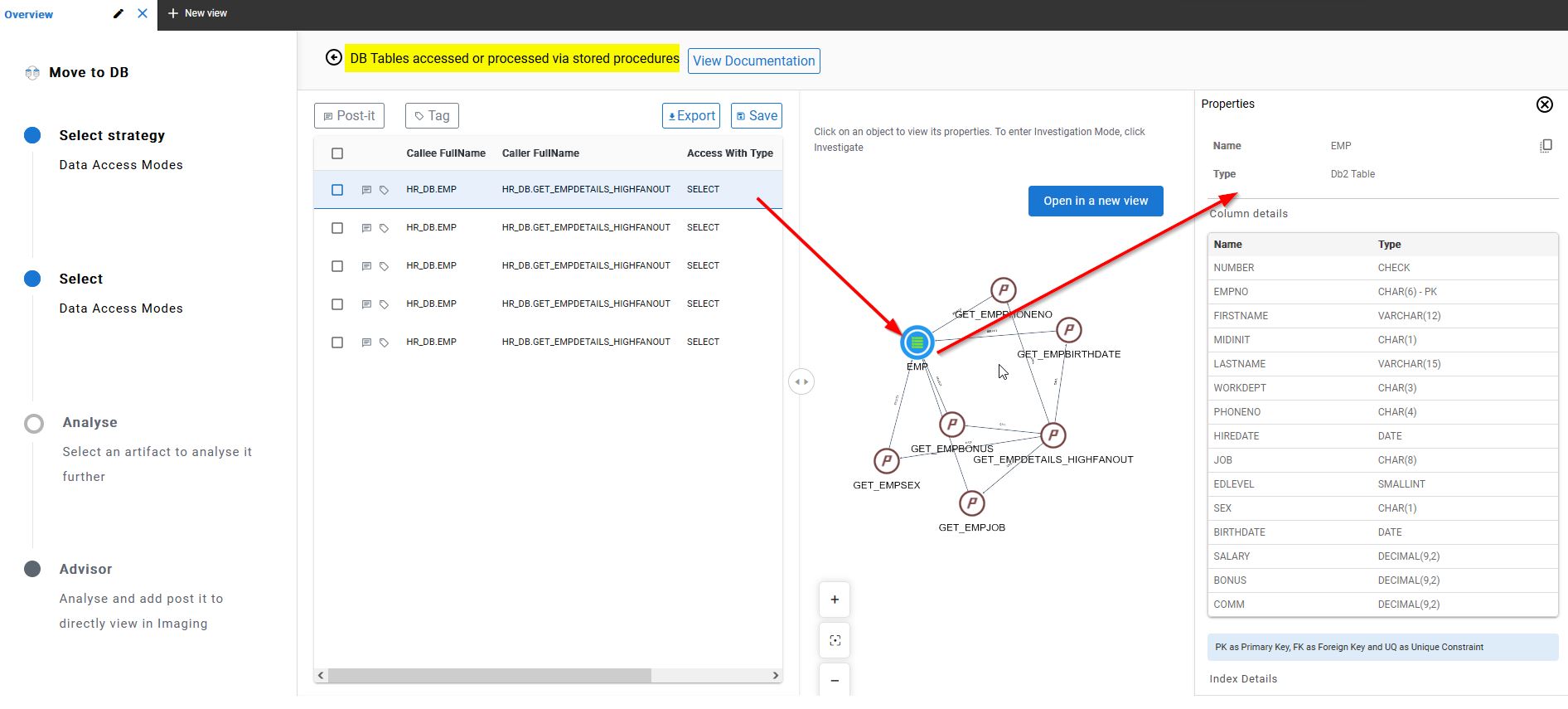

Results are provided in the “Imaging Advisor”:

CAST Engineering Dashboard

Example results for Oracle Database to Oracle Cloud:

Example results for Oracle Database to Amazon Aurora:
