.NET Remoting - 1.0
Description
This extension provides support for .NET Remoting APIs, which are responsible for hosting and receiving objects in .NET applications. If your C# application utilizes .NET Remoting and you want to modelize the communication—such as hosting and receiving—through appropriate objects and links, you should install this extension.
Supported libraries
| Library | Supported |
|---|---|
| System.Runtime.Remoting | ✅ |
| System.Runtime.Remoting.Messaging | ✅ |
Transactions
Transaction support is derived from metamodel concepts used to build CAST Imaging Blueprint and structural transaction flows. Entry Points start transactions; Exit Points include both output/boundary concepts and Data Entities manipulated by transactions.
| Role | Support | Breakdown |
|---|---|---|
| Entry Point |
|
|
| Exit Point |
|
Data version: 1.0.3-funcrel
ISO 5055 Structural Rules
Quality support is based on ISO 5055 structural rules available for the selected extension version.
| Reliability | Maintainability | Security | Performance Efficiency |
|---|---|---|---|
Data version: 1.0.3-funcrel
Dependencies with other extensions
Some CAST extensions require the presence of other CAST extensions in order to function correctly. This extension requires that the following other CAST extensions are also installed (this will be managed automatically):
Download and installation instructions

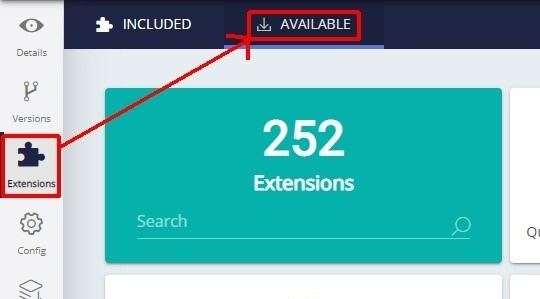

The extension will be automatically downloaded and installed in CAST Console. You can manage the extension using the Application - Extensions interface.

What results can you expect?
Objects
| Icon | Description |
|---|---|
![]() |
DotNet Remoting Server |
![]() |
DotNet Remoting Client |
![]() |
DotNet Remoting Unknown Server |
![]() |
DotNet Remoting Unknown Client |
Links
| Link Type | Source and Destination of link | Supported APIs |
|---|---|---|
| callLink | callLink between the Server object method and the caller C# |
Server APIs
|
| callLink | callLink between the caller C# method and the client object |
Receiver APIs
|
Example code scenarios
System.Runtime.Remoting

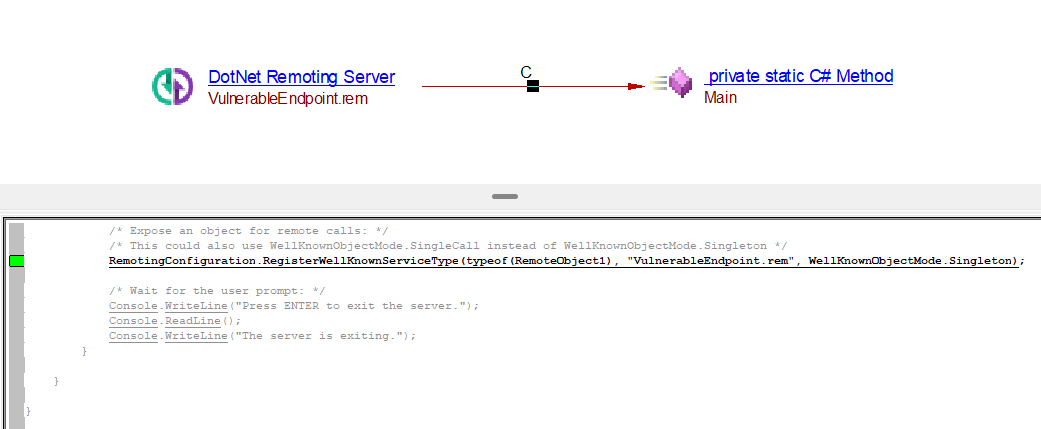

Server APIs
using RemotableObjects;
using System;
using System.Collections;
using System.Runtime.Remoting;
using System.Runtime.Remoting.Channels;
using System.Runtime.Remoting.Channels.Http;
using System.Runtime.Serialization.Formatters;
namespace VulnerableDotNetHTTPRemotingServer
{
class VulnerableServer
{
static void Main(string[] args)
{
SoapServerFormatterSinkProvider soapServerFormatterSinkProvider = new SoapServerFormatterSinkProvider()
{
TypeFilterLevel = TypeFilterLevel.Full
};
IDictionary hashtables = new Hashtable();
hashtables["port"] = 1234;
hashtables["proxyName"] = null;
hashtables["name"] = "Test Remoting Services";
HttpChannel serverChannel = new HttpChannel(hashtables, null, soapServerFormatterSinkProvider);
ChannelServices.RegisterChannel(serverChannel, false);
RemotingConfiguration.RegisterWellKnownServiceType(typeof(RemoteObject1), "VulnerableEndpoint.rem", WellKnownObjectMode.Singleton);
Console.WriteLine("Press ENTER to exit the server.");
Console.ReadLine();
Console.WriteLine("The server is exiting.");
}
}
}

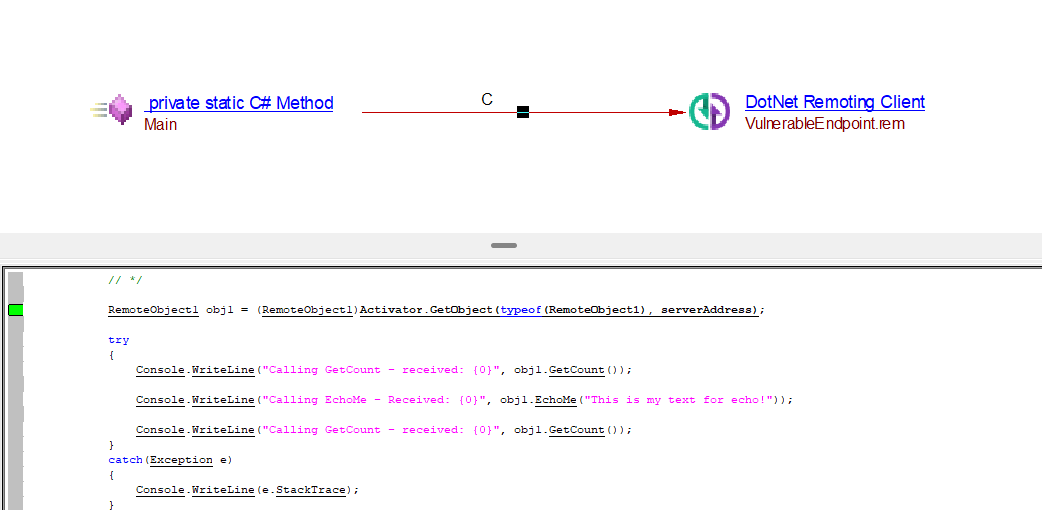

Client APIs
using RemotableObjects;
using System;
using System.Collections;
using System.Runtime.Remoting;
using System.Runtime.Remoting.Channels;
using System.Runtime.Remoting.Channels.Http;
using System.Runtime.Serialization.Formatters;
namespace VulnerableDotNetHTTPRemotingClient
{
class Client
{
static void Main(string[] args)
{
String serverAddress = "http://localhost:8080/VulnerableEndpoint.rem"; // to proxy them in Burp - redirecting it to localhost:1234 with "Support invisible proxying"
IDictionary props = new Hashtable();
SoapClientFormatterSinkProvider clientProvider = new SoapClientFormatterSinkProvider();
SoapServerFormatterSinkProvider serverProvider = new SoapServerFormatterSinkProvider()
{
TypeFilterLevel = TypeFilterLevel.Low
};
props["name"] = "ClientChannel";
props["portName"] = Guid.NewGuid().ToString();
props["typeFilterLevel"] = "Low";
props["port"] = 0;
HttpChannel clientChannel = new HttpChannel(props, clientProvider, serverProvider);
// Register the channel.
ChannelServices.RegisterChannel(clientChannel, false);
RemotingConfiguration.RegisterWellKnownClientType(new WellKnownClientTypeEntry(typeof(RemoteObject1), serverAddress));
RemoteObject1 obj1 = (RemoteObject1)Activator.GetObject(typeof(RemoteObject1), serverAddress);
try
{
Console.WriteLine("Calling GetCount - received: {0}", obj1.GetCount());
Console.WriteLine("Calling EchoMe - Received: {0}", obj1.EchoMe("This is my text for echo!"));
Console.WriteLine("Calling GetCount - received: {0}", obj1.GetCount());
}
catch(Exception e)
{
Console.WriteLine(e.StackTrace);
}
Console.WriteLine("Press ENTER to exit the client.");
Console.ReadLine();
Console.WriteLine("The client is exiting.");
}
}
}

Dotnet Sender and Receiver

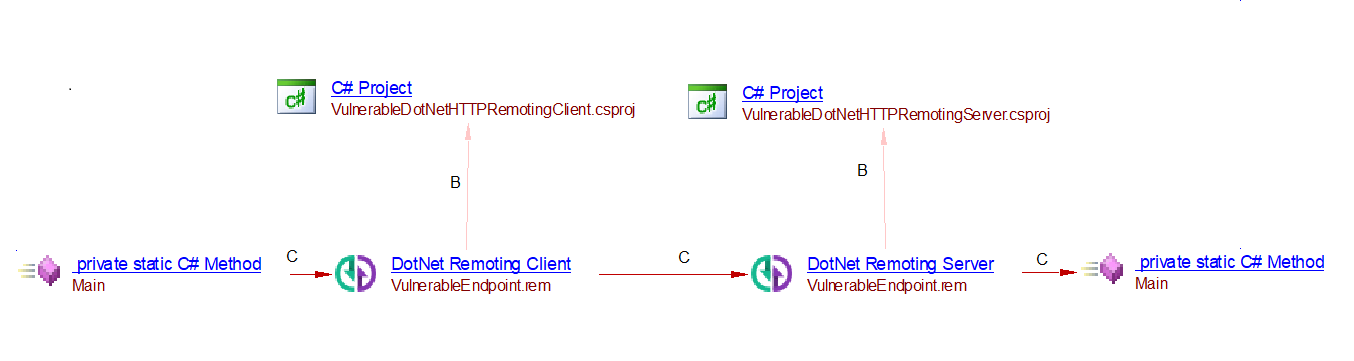

When the service name matches for both the server and client, a callLink will be established between the server object and the client object:
