Description

This extension provides support for Windows Forms external link. Windows Forms is a web app development framework for DotNet that includes a large library of UI components.

Function Point, Quality and Sizing support

  • Function Points (transactions): a green tick indicates that OMG Function Point counting and Transaction Risk Index are supported
  • Quality and Sizing: a green tick indicates that CAST can measure size and that a minimum set of Quality Rules exist
Function Points (transactions) Quality and Sizing
✅ ❌

Technical information

Once the analysis/snapshot generation has completed, you can view the results in the normal manner. The following objects and links will be resolved:

Objects

Icon Object Type Description
Form_icon.png Windows Forms Form Created when a class inherits from System.Windows.Forms.Form.
Event_subscription.png Windows Forms Event Subscription Event Subcription is composed of the controller and the C# Event about to be registered, e.g: my_submit_button.Click.

Table of supported controllers and C# Events:

API String Controller Type(s)
System.Windows.Forms.Control.Click.add
System.Windows.Forms.Control.GotFocus.add
System.Windows.Forms.Control.LostFocus.add
System.Windows.Forms.Control.TextChanged.add		 Control (all controls inherit from Control)
System.Windows.Forms.Control.DoubleClick.add Control (all controls inherit from Control), ListBox
System.Windows.Forms.Control.Leave.add
System.Windows.Forms.Control.Enter.add		 Control (all controls inherit from Control), TextBox
System.Windows.Forms.TextBox.KeyDown.add
System.Windows.Forms.TextBox.KeyPress.add
System.Windows.Forms.TextBox.KeyUp.add		 TextBox
System.Windows.Forms.Button.DoubleClick.add Button
System.Windows.Forms.CheckBox.CheckedChanged.add CheckBox
System.Windows.Forms.RadioButton.CheckedChanged.add RadioButton
System.Windows.Forms.ComboBox.DropDown.add
System.Windows.Forms.ComboBox.SelectedIndexChanged.add
System.Windows.Forms.ComboBox.SelectedValueChanged.add
System.Windows.Forms.ComboBox.TextChanged.add		 ComboBox
System.Windows.Forms.ListBox.SelectedIndexChanged.add
System.Windows.Forms.ListBox.DoubleClick.add		 ListBox
System.Windows.Forms.DataGridView.SelectionChanged.add
System.Windows.Forms.DataGridView.CellValueChanged.add
System.Windows.Forms.DataGridView.CellClick.add
System.Windows.Forms.DataGridView.CellDoubleClick.add
System.Windows.Forms.DataGridView.RowEnter.add
System.Windows.Forms.DataGridView.RowLeave.add		 DataGridView
System.Windows.Forms.Timer.Tick.add Timer
Link Type Caller type Callee type Details / Comments
callLink Windows Forms Form Windows Form Event Subscription based on in which Form the controller is added.
callLink Windows Forms Event Subscription C# Method the Handling c# method registered which the Event Subscription.

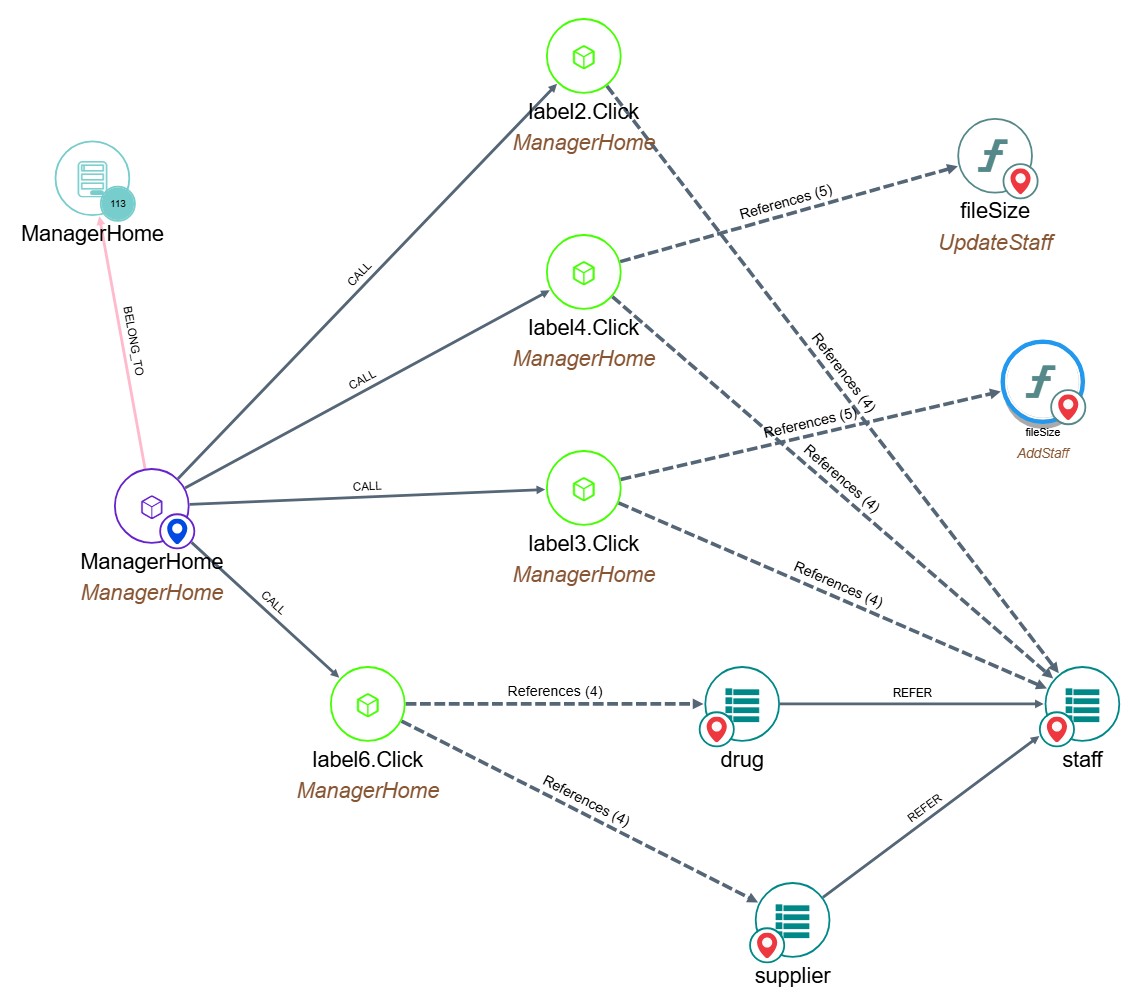

What results can you expect?

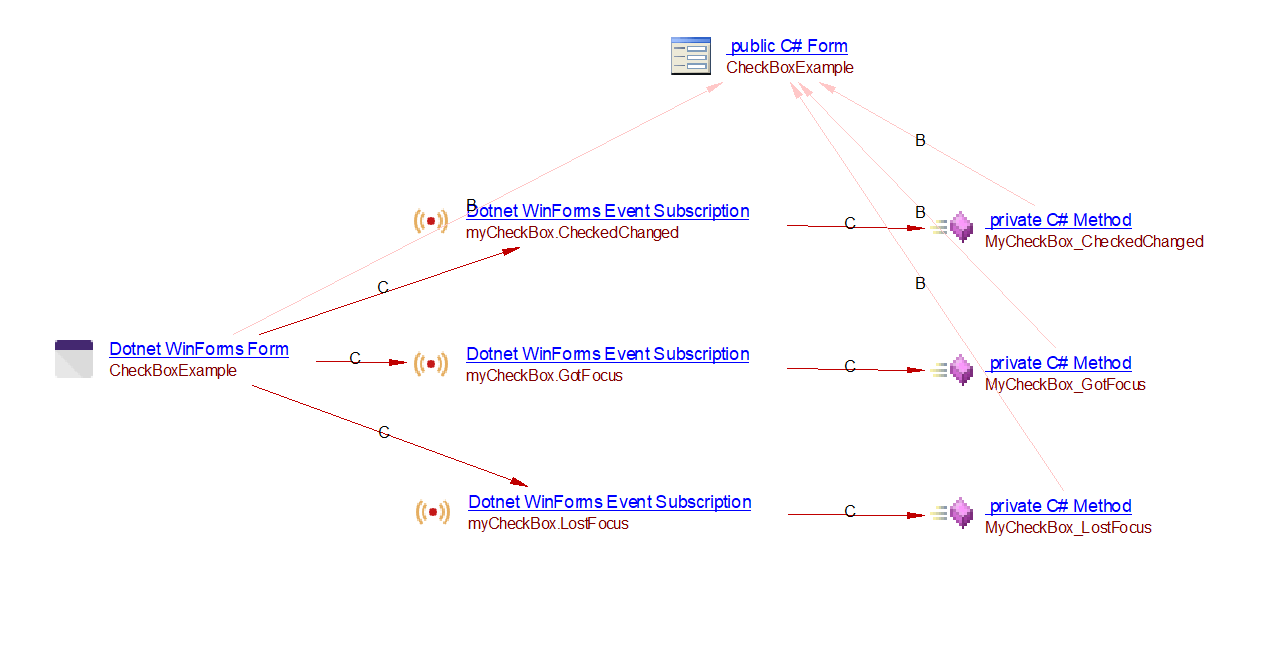

Basic example

using System;
using System.Windows.Forms;

public class CheckBoxExample : Form
{
    private CheckBox myCheckBox;

    public CheckBoxExample()
    {
        myCheckBox = new CheckBox();
        myCheckBox.Text = "Enable feature";

        // Event subscriptions
        myCheckBox.CheckedChanged += new EventHandler(MyCheckBox_CheckedChanged);
        myCheckBox.GotFocus += new EventHandler(MyCheckBox_GotFocus);
        myCheckBox.LostFocus += new EventHandler(MyCheckBox_LostFocus);

        this.Controls.Add(myCheckBox);
    }

    private void MyCheckBox_CheckedChanged(object sender, EventArgs e)
    {
        Console.WriteLine("CheckBox state changed: " + myCheckBox.Checked);
    }

    private void MyCheckBox_GotFocus(object sender, EventArgs e)
    {
        Console.WriteLine("CheckBox got focus");
    }

    private void MyCheckBox_LostFocus(object sender, EventArgs e)
    {
        Console.WriteLine("CheckBox lost focus");
    }

    [STAThread]
    public static void Main()
    {
        Application.EnableVisualStyles();
        Application.Run(new CheckBoxExample());
    }
}

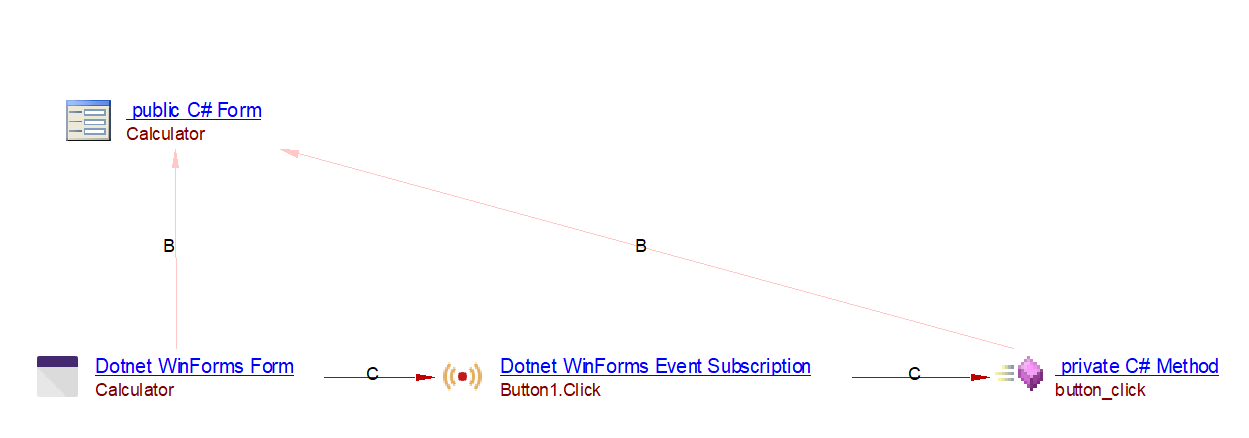

Complex example with partial class

Calculator.cs

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
namespace PHARMACY
{
    public partial class Calculator : Form
    {
        Double results = 0;
        String operation = "";
        bool isOperationPerformed = false;
        public Calculator()
        {
            InitializeComponent();
            System.Drawing.Icon ico = new System.Drawing.Icon("C:\\PMS\\Resources\\form-icon.ico");
            this.Icon = ico;
        }

        private void button_click(object sender, EventArgs e)
        {
            if ((resultsTextBox.Text == "0") || (isOperationPerformed))
                resultsTextBox.Clear();
            isOperationPerformed = false;
            Button button = (Button)sender;
            if (button.Text == ".")
            {
                if (!(resultsTextBox.Text.Contains(".")))
                    resultsTextBox.Text = resultsTextBox.Text + button.Text;
            }
            else
            {
                resultsTextBox.Text = resultsTextBox.Text + button.Text;
            }
        }

    }
}

Calculator.Designer.cs

namespace PHARMACY
{
    partial class Calculator
    {
        /// <summary>
        /// Required designer variable.
        /// </summary>
        private System.ComponentModel.IContainer components = null;
        /// <summary>
        /// Clean up any resources being used.
        /// </summary>
        /// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
        protected override void Dispose(bool disposing)
        {
            if (disposing && (components != null))
            {
                components.Dispose();
            }
            base.Dispose(disposing);
        }
        #region Windows Form Designer generated code
        /// <summary>
        /// Required method for Designer support - do not modify
        /// the contents of this method with the code editor.
        /// </summary>
        private void InitializeComponent()
        {
            this.Button1 = new System.Windows.Forms.Button();
            this.SuspendLayout();
            Button1.Click += new System.EventHandler(button_click);
            this.Controls.Add(Button1);
        }
        #endregion
        private System.Windows.Forms.Button Button1;
    }
}
