Django ORM support

Introduction

Django ORM is an Object-Relational Mapping framework that is part of the Django web framework. It provides a high-level interface to interact with databases using Python objects instead of SQL queries.

The analyzer detects Django ORM method calls made on model managers, creates corresponding objects and links database operations.

Examples

Model definition: countries/models.py

from django.db import models


class Country(models.Model):
    ...

CRUD operation using Django ORM:

import django
from countries.models import Country


class X:
    def __init__(self):
        self.FR = Country.objects.get(id="FR")

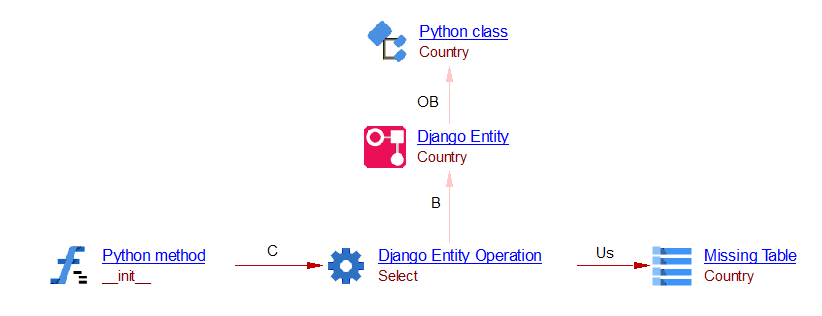

Will create the following objects and links:

Objects

• a Django Entity object is created when a Django model class inheriting from django.db.models.Model is found during the analysis, or when the analyzer detects supported Django Manager APIs on a Django model class
• a Django Entity Operation object is created when one of the supported Django Manager APIs is used on a Django model class inheriting from django.db.models.Model.

Icon	Description
	Python Django Entity
	Python Django Entity Operation

Supported persistence SQL databases

Supported operations

The analyzer detects Django ORM access to database operations through a model manager: <Model>.objects.<API method>.

To get model classes dynamically, django.apps.apps.get_model() and django.apps.AppConfig.get_model() are supported, when the name can be resolved to a string:

app = 'blog'
article_model = 'Article'
article = apps.get_model(app, article_model)
articles = article.objects.all()

Supported links

Known limitations

The following features are not supported:

• custom managers with overridden methods
• custom table names in custom managers: the name of the class inheriting from django.db.models.Model is used as table name
• Q() objects for complex queries
