Keycloak accounts and passwords

Overview

CAST Imaging uses Keycloak  to handle authentication, and a fresh installation provides several distinct accounts. Because some of these accounts share the same default password, they are frequently mistaken for a single account, and changing the wrong one can prevent users from logging in to CAST Imaging altogether.

This page identifies each account, explains what it is for, and gives the correct procedure for changing its password.

Which account do I need?

For credentials that are not Keycloak accounts, such as the LDAP bind account, API keys and the keycloak database user, see Other credentials.

The two accounts most often confused with each other are kcadmin and admin, both of which live in the master realm. The distinction is:

• kcadmin is the only account intended for logging in to the Keycloak admin UI. Its password is not stored anywhere else in CAST Imaging, so you can change it freely.
• admin is a service account. CAST Imaging components authenticate with it internally. Its password is also held in service configuration, so changing it requires additional steps.

Keycloak UI admin account - kcadmin

Use this account to reach the Keycloak admin UI, where you manage local users and groups, or configure LDAP or SAML Single Sign-on. Connect using the following URL, pointing to the machine on which the imaging-services component is installed:

http://<imaging-services-fqdn>:8090/auth

On login you are taken directly to the aip-realm realm.

Where does the kcadmin account come from?

The account is created automatically during installation:

• The default username is kcadmin. You can change it during a fresh installation only, using the KEYCLOAK_LOGIN_ADMIN_USER variable for Linux via Docker/Podman and Microsoft Windows deployments, or the KCADMIN_USERNAME parameter for Kubernetes deployments.
• The default password is admin, but it is temporary. On first login to the Keycloak UI you are prompted to set a new password.

How do I change the kcadmin password?

CAST Imaging does not store this password anywhere, so no configuration changes and no service restarts are required. The procedure is the same for all deployment types:

1. Log in to the Keycloak admin UI as kcadmin.
2. Switch to the master realm.
3. Navigate to Users and select the kcadmin user.
4. On the Credentials tab, reset the password.

Keycloak internal service account - admin

The admin account in the master realm is used exclusively for communication between CAST Imaging services, specifically between the auth-service and the sso-service. It is not intended for logging in to the Keycloak admin UI: use kcadmin for that.

What is the default password for the admin account?

This has changed across releases:

On Linux via Docker/Podman and Kubernetes deployments, a fresh installation generates a random password for the admin service account rather than using admin. On Linux via Docker/Podman the generated value is written to the .env file for the imaging-services component:

<INSTALL_DIR>/installation/imaging-services/.env

How do I change the admin password on Linux via Docker/Podman?

Rather than editing service configuration by hand, set the password in configuration.conf and re-run the update script for the release you already have installed. This propagates the new password to all components and restarts the containers:

1. Open the configuration.conf file in the root of your extracted installation media and set the new password:

KEYCLOAK_SERVICE_ACCOUNT_PASSWORD=<new-password>

2. Run the update script for the same release that is currently installed:

$ ./cast-imaging-update.sh

or, for Podman:

$ ./cast-imaging-update-podman.sh

3. For security, remove the password from configuration.conf once the update completes.

How do I change the admin password on Microsoft Windows?

There is no installation variable for this password on Windows, so the change must be made in Keycloak and then reflected in the configuration of the two services that use it:

1. Log in to the Keycloak admin UI as kcadmin, switch to the master realm, navigate to Users, select the admin user and reset the password on the Credentials tab.

2. Create the following file:

%PROGRAMFILES%\CAST\Imaging\CAST-Imaging-Auth-Service\application-default.yml

3. Add the new password to it:

spring:
  keycloak:
    password: ${KC_PASSWORD:<new-password>}

4. Edit the following file:

%PROGRAMFILES%\CAST\Imaging\CAST-Imaging-SSO\tools\sso-service-program.bat

5. Locate the KEYCLOAK_ADMIN_PASSWORD entry and set the new password:

SET KEYCLOAK_ADMIN_PASSWORD=<new-password>

6. Restart the CAST Imaging SSO Service and the CAST Imaging Authentication Service.

How do I change the admin password on Kubernetes?

Out-of-the-box Keycloak is provisioned with a service account used for intra-component communication, with the username admin. Its password is set by the KeycloakAdminPassword parameter during installation. If you need to change this password post-installation, follow the steps below:

Change the password via the UI

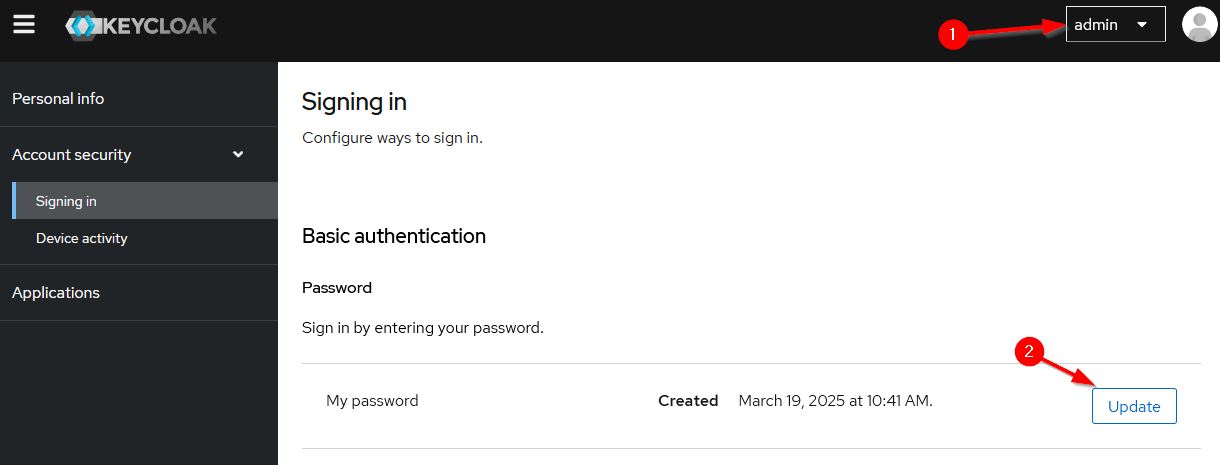

1. Navigate to the Keycloak account security page using the following URL (replace <public-external-url> with your installation’s external URL). This is the self-service account page for the admin service account, not the Keycloak admin console:

https://<public-external-url>/auth/realms/master/account/account-security/signing-in

2. Log in as the admin service account, using its current password
3. Update the password through the account settings interface

Update the password in the Helm Chart

After changing the password in the Keycloak UI, you must update the Helm chart configuration to match.

1. Encode your new password in base64 format. On a Linux machine, run:

echo -n "my-new-password" | base64

2. In your cloned Git repository containing the CAST Imaging Kubernetes installation files, open:

values.yaml

3. Locate this line:

KeycloakAdminPassword: <default-password>

4. Replace the defined password with your base64-encoded password:

KeycloakAdminPassword: <your-base64-encoded-password>

5. Example: If your base64 output is bXktbmV3LXBhc3N3b3Jk, the line should read:

KeycloakAdminPassword: bXktbmV3LXBhc3N3b3Jk

Apply changes

Run Util-ScaleDownAll.bat and helm-upgrade.bat to restart CAST Imaging and apply the changes.

A note on securing these files

Changing the admin service account password requires the new value to be recorded in service configuration files in plain text. Protect these files using appropriate file system permissions, and restrict access to the hosts on which they reside.

Password requirements and restrictions

Special characters in an admin service account password that was changed through the Keycloak UI are now read correctly when you subsequently update CAST Imaging. In 3.5.9-funcrel and 3.6.4-funcrel this was not the case.

Why does my password appear twice in the .env file?

If your password contains a dollar sign ($), it is stored as a double dollar sign ($$) in the .env file for the imaging-services component. This is expected: the doubled character escapes the dollar sign for shell processing, and Docker reads the value back as a single $. No action is required.

CAST Imaging local users

A fresh installation provides one CAST Imaging local user called admin, with the password admin and the global ADMIN profile.

The default password for this account is temporary. On first login to CAST Imaging you are required to change it before you can continue. In releases up to 3.6.4-funcrel there is no such prompt, and CAST recommends changing the password immediately after your first login.

For instructions on changing this password, adding further local users, and creating local groups, see Local Authentication. To grant permissions to your local users and groups, see Manage user permissions.

Other credentials

Several other credentials are involved in a CAST Imaging deployment but are not Keycloak accounts:

• LDAP bind account - the Bind DN and Bind credentials that allow Keycloak to query your directory. See LDAP.
• API keys - used to authenticate API and automation calls in place of a username and password. See API key.
• keycloak database user - allows Keycloak to reach its own PostgreSQL schema. See Database requirements.

Keycloak credentials in 3.5.x-funcrel and earlier

In releases up to and including 3.5.x-funcrel there was no separate kcadmin account. Keycloak was provided with the single set of default credentials admin/admin, used both for Keycloak UI login and for inter-service communication. The password could be customized during a fresh installation for Linux via Docker.

If you have not customized this password, CAST recommends changing it once the installation is running, using the following URL and pointing to the machine on which the imaging-services component is installed:

http://<imaging-services-fqdn>:8090/auth/realms/master/account/account-security/signing-in

Troubleshooting

Whitelabel error page after changing a Keycloak password

Symptom: after changing a Keycloak password, browsing to CAST Imaging returns a Whitelabel Error Page and no users can log in.

Cause: the password for the master realm admin service account was changed in the Keycloak UI only. CAST Imaging services still authenticate using the old password held in their configuration.

Resolution: follow the full procedure for your deployment type, described in Keycloak internal service account - admin. If you have already followed it, confirm that your password does not use one of the patterns listed under password requirements and restrictions.

The kcadmin account does not exist

Symptom: you cannot log in to the Keycloak UI as kcadmin, and the account is not listed in the master realm.

Cause: on installations updated from 3.5.9-funcrel to any release from 3.6.0-funcrel to 3.6.5-funcrel, the init.sh file that creates the kcadmin account was created as a directory rather than as a file, so the account was never created. To confirm, check the following path and verify that init.sh is a file:

<INSTALL_DIR>/installation/imaging-services/keycloak/init.sh

Resolution: update to 3.6.6-funcrel or later. The update recreates init.sh correctly and creates the kcadmin account. See In-place component update for Linux via Docker.
