Support of DynamoDB for Node.js - TypeScript

CAST supports DynamoDB via its com.castsoftware.typescript extension. This page documents the support provided with the latest version of com.castsoftware.typescript.

Objects

Icon	Description
	NodeJS AWS DynamoDB Database
	NodeJS AWS DynamoDB Table

Supported libraries

Library	import path	Versions
AWS SDK for JavaScript v2	aws-sdk	2.0.1 to 2.1692.0
AWS SDK for JavaScript v3	@aws-sdk/client-dynamodb	3.0.0 to 3.927.0
AWS SDK for JavaScript v3 - Helper Library	@aws-sdk/lib-dynamodb	3.8.0 to 3.927.0

Links

From API V2

Link Type	from aws-sdk.DynamoDB	from aws-sdk.DocumentClient
useSelectLink	createBackup getItem batchGetItem transactWriteItems batchWriteItem restoreTableToPointInTime	batchGet transactGet get scan query batchWrite transactWrite
useDeleteLink	deleteTable deleteItem transactWriteItems batchWriteItem	batchWrite transactWrite delete
useUpdateLink	transactWriteItems batchWriteItem updateItem updateTable createBackup putItem restoreTableToPointInTime restoreTableFromBackup	put update batchWrite transactWrite

From API V3

Link Type	Commands from SDK V3 imported from ‘@aws-sdk/client-dynamodb’	Commands from SDK V3 imported from ‘@aws-sdk/lib-dynamodb’
useSelectLink	QueryCommand ScanCommand BatchGetItemCommand GetItemCommand CreateBackupCommand TransactGetItemsCommand	GetCommand BatchGetCommand TransactGetCommand
useDeleteLink	DeleteTableCommand DeleteItemCommand BatchWriteItemCommand TransactWriteItemsCommand	DeleteCommand BatchWriteCommand TransactWriteCommand
useUpdateLink	PutItemCommand UpdateItemCommand UpdateCommand CreateBackupCommand UpdateTableCommand PutItemCommand BatchWriteItemCommand TransactWriteItemsCommand	UpdateCommand BatchWriteCommand PutCommand TransactWriteCommand

Code samples

API V2 sample

These declarations will establish a connection to the database located on localhost:

import AWS from "aws-sdk";

AWS.config.update({
  region: "us-west-2",
  endpoint: "http://localhost:8000"
});

var dynamodb = new AWS.DynamoDB();

These declarations will create a useUpdateLink from code to the table “Music”.

/* This example adds a new item to the Music table. */

var params = {
  Item: {
    "AlbumTitle": {
      S: "Somewhat Famous"
    },
    "Artist": {
      S: "No One You Know"
    },
    "SongTitle": {
      S: "Call Me Today"
    }
  },
  ReturnConsumedCapacity: "TOTAL",
  TableName: "Music"
};

dynamodb.putItem(params, function(err, data) {
  if (err) console.log(err, err.stack); // an error occurred
  else     console.log(data);           // successful response
});

API V3 sample

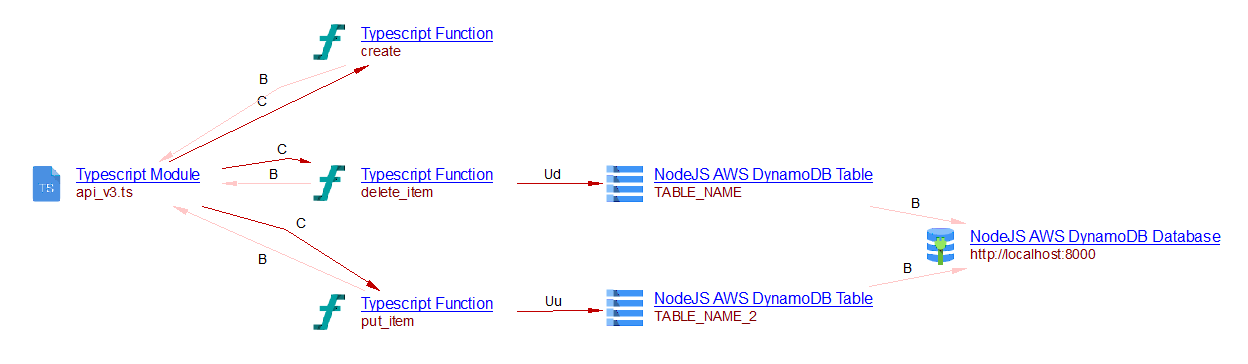

These declarations will establish a connection to the database located on localhost, create two tables, and create links:

import { DynamoDBClient } from "@aws-sdk/client-dynamodb";
import { CreateTableCommand, PutItemCommand, DeleteTableCommand } from "@aws-sdk/client-dynamodb";

const REGION = "us-east-1";
const ddbClient = new DynamoDBClient({region: REGION,
                                      endpoint: "http://localhost:8000" });
export { ddbClient };

// Set the parameters
export const params_put = {
  TableName: "TABLE_NAME_2",
  Item: {
    CUSTOMER_ID: { N: "001" },
    CUSTOMER_NAME: { S: "Richard Roe" },
  },
};

export const create = async () => {
  try {
    const data = await ddbClient.send(new CreateTableCommand({TableName: "TABLE_NAME"}));
    console.log("Table Created", data);
    return data;
  } catch (err) {
    console.log("Error", err);
  }
};
create();

export const put_item = async () => {
  try {
    const data = await ddbClient.send(new PutItemCommand(params_put));
    console.log("Table Updated", data);
    return data;
  } catch (err) {
    console.log("Error", err);
  }
};
put_item();

export const delete_item = async () => {
  try {
    const data = await ddbClient.send(new DeleteTableCommand({TableName: "TABLE_NAME"}));
    console.log("Success, table deleted", data);
    return data;
  } catch (err) {
      console.log("Error", err);
    }
};
delete_item();
