Java Socket - 1.0

package com.mycompany.clientside;

import java.awt.*;
import java.awt.event.WindowAdapter;
import java.awt.event.WindowEvent;
import java.awt.image.BufferedImage;
import java.io.*;
import java.net.Socket;
import java.nio.ByteBuffer;
import java.util.Scanner;

import javax.imageio.ImageIO;
import javax.swing.*;

public class Client extends JFrame {

    // Global Image
    static Image global_img;

    /* Main Function */
    public static void main(String[] args) {

        // Collect inputs from the user
        Scanner input = new Scanner(System.in);

        /* Read the matrix */
        int nodes = 5;
        System.out.println("Making a graph with 5 nodes\n");

        // Declare the matrix
        int adjMatrix[][] = new int[nodes][nodes];
        int entry;
        // Read the matrix values
        System.out.println("Enter the elements of the matrix");
        for (int i = 0; i < nodes; i++)
            for (int j = 0; j < nodes; j++) {
                entry = input.nextInt();
                if(entry >= 1)
                    entry = 1;
                else
                    entry = 0;
                adjMatrix[i][j] = entry;
            }

        // Display the entered matrix
        System.out.println("This is the matrix that was entered\n");
        StringBuilder s = new StringBuilder();
        for (int i = 0; i < nodes; i++) {
            s.append((char)(i+ (int)'A') + ": ");
            for (int j : adjMatrix[i]) {
                s.append((j) + " ");
            }
            s.append("\n");
        }
        System.out.print(s.toString());

        // Input path length
        System.out.println("Enter the path length");
        int pathLength = input.nextInt();

        // Input starting and ending nodes (convert alphabets to index values)
        System.out.println("Enter the start node");
        int start = (int)Character.toUpperCase(input.next().charAt(0)) - (int)'A';

        System.out.println("Enter the end node");
        int end = (int)Character.toUpperCase(input.next().charAt(0)) - (int)'A';

        // TCP Connection and communication with the server
        try {
            // Make a new client side connection

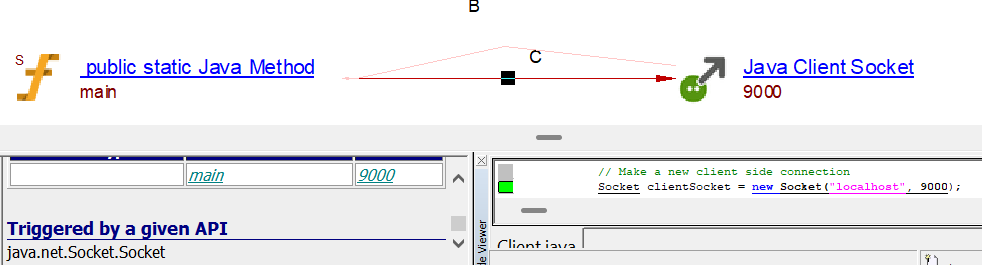

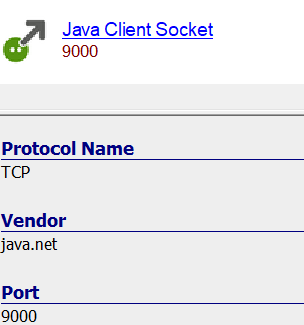

            Socket clientSocket = new Socket("localhost", 9000);

            // Make a new inputstream object
            DataInputStream dataInput = new DataInputStream(clientSocket.getInputStream());

            // Create an output stream
            DataOutputStream dataOutput = new DataOutputStream(clientSocket.getOutputStream());

            // Send data to the server

            // Send Path length
            dataOutput.writeInt(pathLength);
            dataOutput.flush();

            // Send start and end
            dataOutput.writeInt(start);
            dataOutput.flush();
            dataOutput.writeInt(end);
            dataOutput.flush();

            // Send the number of nodes and the matrix
            dataOutput.writeInt(nodes);
            dataOutput.flush();
            for (int i = 0; i < nodes; i++)
                for (int j = 0; j < nodes; j++)
                    dataOutput.writeInt(adjMatrix[i][j]);
                    dataOutput.flush();

            // Read the response input from the server
            char response = dataInput.readChar();

            // Convert start and end node to alphabets
            char startNode = (char)((int)start + (int)'A');
            char endNode = (char)((int)end + (int)'A');
            String statement = "";

            // Check response from the server
            if(response == 'Y'){
                statement = "Yes, there exists a path of length " + pathLength + " from node " + startNode + " to node " + endNode;
            }else if(response == 'N'){
                statement = "No, there exists no path of length " + pathLength + " from node " + startNode+ " to node " + endNode;
            }

            // Print the statement
            System.out.println(statement);

            /* Load the image */

            // getting img from server
            byte[] sizeAr = new byte[4];
            dataInput.read(sizeAr);

            int size = ByteBuffer.wrap(sizeAr).asIntBuffer().get();
            byte[] imageArray = new byte[size];
            dataInput.read(imageArray);
            BufferedImage image = ImageIO.read(new ByteArrayInputStream(imageArray));
            global_img = image;

            JFrame frame = new Client();
            frame.setTitle("Client");
            frame.setSize(1000, 1000);
            frame.setVisible(true);

            System.out.println("Received Bytes " + image.getHeight() + "x" + image.getWidth() + " : " + System.currentTimeMillis());

            // Call the constructor to load image
            dataOutput.close();
            clientSocket.close(); // close the connection

        } catch (IOException ex){}

    }
}

package com.mycompany.serverside;

/* Import java Packages */
import javax.imageio.ImageIO;
import javax.swing.*;
import java.awt.*;
import java.io.*;
import java.net.*;
import java.nio.ByteBuffer;
import java.util.*;
import java.util.List;
import javax.swing.*;
import java.awt.*;
import java.awt.image.BufferedImage;


public class Server extends JFrame{

    // Global adjmatrix
    static int[][] globalAdjMatrix = new int[5][5];

    // Declare global image
    static Image global_img;

    // Global socket variable
//    static ServerSocket serverSocket;
//    static Socket socket;
//    static DataInputStream input;
    static DataOutputStream output;

    /* function to convert adjacency matrix to adjacency list */
    public static ArrayList<Integer>[] mat_to_list(int[][] m){

        // Collect number of vertices
        int vertices = m[0].length;

        // Declare an Array
        ArrayList<Integer>[] adjList = new ArrayList[vertices];

        // Create a new list for each vertex to store the vertices
        for (int i = 0; i < vertices; i++) {
            adjList[i] = (new ArrayList<Integer>());
        }

        // Store the vertices in the adjacency list
        for (int i = 0; i < m[0].length; i++) {
            for (int j = 0; j < m.length; j++) {
                if (m[i][j] >= 1) {
                    adjList[i].add(j);
                }
            }
        }

        return adjList;

    }

    // Set the loaction of the points in the graph
    Point A = new Point(220, 80);
    Point B = new Point(100, 180);
    Point C = new Point(140, 305);
    Point E = new Point(340, 180);
    Point D = new Point(300, 305);

    int drawnEdges1[] = new int[25];
    int drawnEdges2[] = new int[25];



    public static BufferedImage toBufferedImage(Image img)
    {
        if (img instanceof BufferedImage)
        {
            return (BufferedImage) img;
        }

        // Create a buffered image with transparency
        BufferedImage bimage = new BufferedImage(img.getWidth(null), img.getHeight(null), BufferedImage.TYPE_INT_ARGB);

        // Draw the image on to the buffered image
        Graphics2D bGr = bimage.createGraphics();
        bGr.drawImage(img, 0, 0, null);
        bGr.dispose();

        // Return the buffered image
        return bimage;
    }

    // Function to visualise the graph nodes and the edges
    private Image createGraphImage() {

        // Create a buffered image object
        BufferedImage image = new BufferedImage(500, 500, BufferedImage.TYPE_INT_RGB);
        return image;
    }

    /* Function to check if the required path length in the given path lengths */
    public static boolean checkPathLength(ArrayList<Integer>[] list, int source, int dest, int vertices, int reqLength) {
        // Create an array of visited nodes
        boolean[] hasVisited = new boolean[vertices];
        ArrayList<Integer> pathList = new ArrayList<>();

        // add the source node to the path (subtract 1 from path length)
        pathList.add(source);
        ArrayList<Integer> pathLength = new ArrayList<>();

        // Call recursive DFS function
        pathLengthDFS(list, source, dest, pathLength, hasVisited, pathList);

        // Return whether the path length exists or not
        return pathLength.contains(reqLength);
    }

    /* Function to recursively check the path and then add to the list of path lengths */
    private static void pathLengthDFS(ArrayList<Integer>[] adjList, Integer s, Integer d, List<Integer> lengths, boolean[] hasVisited, List<Integer> funcPathList) {

        if (s.equals(d)) {

            // Add the path length to the path lengths list (subtract 1 to remove source node)
            lengths.add(funcPathList.size()-1);

            // If we have found a matching node then we can directly return after adding the length to tha path lenght
            return;
        }

        // Mark the current node as visited
        hasVisited[s] = true;

        // Recur to all the adjacent nodes for all the vertices
        for (Integer i : adjList[s]) {
            if (!hasVisited[i]) {
                // store current node in the path to begin traversal
                funcPathList.add(i);
                pathLengthDFS(adjList, i, d, lengths, hasVisited, funcPathList);

                // remove current node from the path
                funcPathList.remove(i);
            }
        }

        // Mark the current node
        hasVisited[d] = false;
    }


    public static void main(String args[])throws Exception{
        try{

            // create a server socket and bind it to the port number

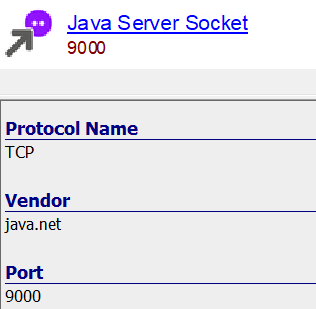

            ServerSocket serverSocket = new ServerSocket(9000);
            System.out.println("Server has been started");

            while(true){

                // Create a new socket to establish a virtual pipe
                // with the client side (LISTEN)

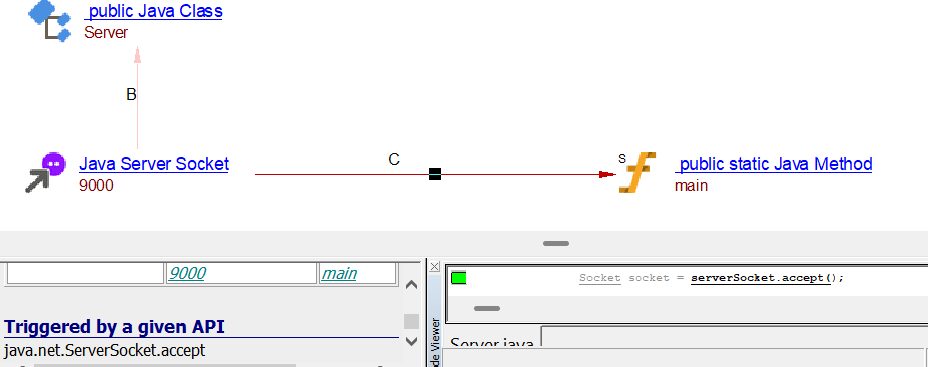

                Socket socket = serverSocket.accept();

                // Create a datainput stream object to communicate with the client (Connect)
                DataInputStream input = new DataInputStream(socket.getInputStream());

                // Create a dataoutput stream object to communicate with the client (Connect)
                output = new DataOutputStream(socket.getOutputStream());

                // Read the data from the client (Receieve)
                int pathLength = input.readInt();
                int start = input.readInt();
                int end = input.readInt();

                // Collect the nodes and the matrix through the data
                int nodes = input.readInt();
                for (int i = 0; i < nodes; i++)
                    for (int j = 0; j < nodes; j++)
                        globalAdjMatrix[i][j] = input.readInt();

                // Convert adjacency matrix to adjacency list
                ArrayList<Integer>[] adjList = new ArrayList[nodes];
                adjList = mat_to_list(globalAdjMatrix);

                // Check whether path length is present in the array
                boolean pathExists = checkPathLength(adjList, start, end, nodes, pathLength);

                // Send the Y or N to the client
                char response;
                if(pathExists)
                    response = 'Y';
                else
                    response = 'N';

                // Send the response
                output.writeChar(response);

            }
        } catch(IOException e){}
    }
}
