Apache Camel - 1.1
Description
Apache Camel is an open-source integration framework that provides a rule-based routing and mediation engine to seamlessly connect diverse systems, applications, and protocols.
This extension adds support for analyzing Apache Camel communication operations across multiple channels—including HTTP-based interactions, messaging systems such as Kafka, file movements, inter-process communication, and database integrations like MongoDB and others.
It supports both Java DSL and XML-based route definitions, enabling comprehensive coverage of Camel’s integration patterns and components.
In what situation should you install this extension?
This extension should be installed when your Java application consists of Apache Camel Routes. Objects created for the components encountered in Apache Camel Route are linked to objects produced by the JEE Analyzer. This will result in better transactions and calculation of Automated Function Points.
Technology support
The following libraries are supported by this extension:
| Library name | Version | Supported | Supported Technology |
|---|---|---|---|
| camel-core-model | 3.7.x to 4.16.x | ✅ | Java |
| camel-core-engine | 3.0.x to 4.6.x | ✅ | Java |
| camel-seda | 3.0.x to 4.6.x | ✅ | Java |
Function Point, Quality and Sizing support
- Function Points (transactions): a green tick indicates that OMG Function Point counting and Transaction Risk Index are supported
- Quality and Sizing: a green tick indicates that CAST can measure size and that a minimum set of Quality Rules exist
| Function Points (transactions) | Quality and Sizing |
|---|---|
| ✅ | ❌ |
Download and installation instructions
For Java applications using any of the above mentioned libraries, this extension will be automatically installed. This is in place since January 27, 2021.
For upgrade, if the Extension Strategy is not set to Auto update, you can manually upgrade the extension using the Application - Extensions interface.
What results can you expect?
Once the analysis/snapshot generation is completed, you can view the results in the normal manner (for example via CAST Enlighten):
Objects
| Icon | Description |
|---|---|
![]() |
Apache Camel HTTP Get Operation |
![]() |
Apache Camel HTTP Put Operation |
![]() |
Apache Camel HTTP Post Operation |
![]() |
Apache Camel HTTP Delete Operation |
![]() |
Apache Camel HTTP Any Operation |
![]() |
Apache Camel Route Call |
![]() |
Apache Camel Route |
![]() |
Apache Camel Bean Call |
![]() |
Apache Camel Process Call |
![]() |
Apache Camel Database Query |
![]() |
Apache Camel Unknown Kafka Topic Receive |
![]() |
Apache Camel JMS Queue Receive |
![]() |
Apache Camel JMS QueueCall |
![]() |
Apache Camel Unknown JMS Queue Receive |
![]() |
Apache Camel Unknown JMS Queue Call |
![]() |
Apache Camel IBM Queue Receive |
![]() |
Apache Camel IBM Queue Call |
![]() |
Apache Camel Unknown IBM_Queue Receive |
![]() |
Apache Camel Unknown IBM Queue Call |
![]() |
Apache Camel ActiveMQ Queue Receive |
![]() |
Apache Camel ActiveMQ Queue Call |
![]() |
Apache Camel Unknown Kafka Topic Call |
![]() |
Apache Camel Unknown ActiveMQ Queue Receive |
![]() |
Apache Camel Unknown ActiveMQ Queue Call |
![]() |
Apache Camel RabbitMQ Topic Receive |
![]() |
Apache Camel RabbitMQ Topic Call |
![]() |
Apache Camel Unknown RabbitMQ Topic Receive |
![]() |
Apache Camel Unknown RabbitMQ Topic Call |
![]() |
Apache Camel File |
![]() |
Apache Camel File Call |
![]() |
Apache Camel Kafka Topic Receive |
![]() |
Apache Camel Kafka Topic Call |
![]() |
Apache Camel MongoDB collection |
![]() |
Apache Camel unknown MongoDB collection |
![]() |
Apache Camel MongoDB database |
![]() |
Apache Camel unknown MongoDB database |
![]() |
Apache Camel AWS S3 Bucket |
![]() |
Apache Camel AWS Unknown S3 Bucket |
Links
| Link Type | Source of link | Destination of link | Supported APIs |
|---|---|---|---|
| callLink | Apache Camel caller objectsApache Camel HTTP Get OperationApache Camel HTTP Put Operation Apache Camel HTTP Post Operation Apache Camel HTTP Delete Operation Apache Camel HTTP Any Operation Apache Camel Route Apache Camel JMS Queue Receive Apache Camel IBM Queue Receive Apache Camel Unknown IBM_Queue Receive Apache Camel ActiveMQ Queue Receive Apache Camel RabbitMQ Topic Receive Apache Camel File Apache Camel Kafka Topic Receive Apache Camel Unknown Kafka Topic Receive Apache Camel Unknown JMS Queue Receive Apache Camel Unknown ActiveMQ Queue Receive Apache Camel Unknown RabbitMQ Topic Receive |
Apache Camel callee objectsApache Camel JMS QueueCallApache Camel Route Call Apache Camel Bean Call Apache Camel Process Call Apache Camel Database Query Apache Camel IBM Queue Call Apache Camel ActiveMQ Queue Call Apache Camel RabbitMQ Topic Call Apache Camel File Call Apache Camel Kafka Topic Call Apache Camel AWS S3 Bucket Apache Camel AWS Unknown S3 Bucket Apache Camel Unknown JMS Queue Call Apache Camel Unknown IBM Queue Call Apache Camel Unknown Kafka Topic Call Apache Camel Unknown ActiveMQ Queue Call Apache Camel Unknown RabbitMQ Topic Call |
API’s to fetch caller objectorg.apache.camel.builder.RouteBuilder.fromorg.apache.camel.model.RouteDefinition.routeId API’s to fetch callee objectorg.apache.camel.model.ProcessorDefinition.toorg.apache.camel.model.ProcessorDefinition.toD org.apache.camel.model.ProcessorDefinition.recipientList org.apache.camel.model.ProcessorDefinition.bean org.apache.camel.model.ProcessorDefinition.setBody org.apache.camel.builder.ExpressionClause.simple org.apache.camel.model.ProcessorDefinition.process |
| callLink | Apache Camel Bean Call object | Java class object | API’s to fetch caller objectorg.apache.camel.model.ProcessorDefinition.bean |
| callLink | Apache Camel Process Call object | Java method object | API’s to fetch caller objectorg.apache.camel.model.ProcessorDefinition.process |
| useSelectLink useInsertLink useUpdateLink useDeleteLink |
Apache Camel caller objectsApache Camel HTTP Get OperationApache Camel HTTP Put Operation Apache Camel HTTP Post Operation Apache Camel HTTP Delete Operation Apache Camel HTTP Any Operation Apache Camel Route Apache Camel JMS Queue Receive Apache Camel IBM Queue Receive Apache Camel Unknown IBM_Queue Receive Apache Camel ActiveMQ Queue Receive Apache Camel RabbitMQ Topic Receive Apache Camel File Apache Camel Kafka Topic Receive Apache Camel Unknown Kafka Topic Receive Apache Camel Unknown JMS Queue Receive Apache Camel Unknown ActiveMQ Queue Receive Apache Camel Unknown RabbitMQ Topic Receive |
Apache Camel callee objectsApache Camel MongoDB collectionApache Camel unknown MongoDB collection Apache Camel AWS S3 Bucket Apache Camel AWS Unknown S3 Bucket |
API’s to fetch caller objectorg.apache.camel.builder.RouteBuilder.fromorg.apache.camel.model.RouteDefinition.routeId org.apache.camel.model.ProcessorDefinition.bean org.apache.camel.builder.ExpressionClause.simple org.apache.camel.model.ProcessorDefinition.process Apache Camel callee objectsorg.apache.camel.model.ProcessorDefinition.toorg.apache.camel.model.ProcessorDefinition.toD org.apache.camel.model.ProcessorDefinition.recipientList |
Code examples
XML DSL- callLink between REST POST service and Apache Camel Route Call
<rest path="restservices/sapmp/v1/cart/">
<post uri="/addCart">
<to uri="direct:addCart" />
</post>

Java DSL- callLink between REST POST service and Apache Camel Route Call
public void subscriberServiceRoute() {
ajscRoute.setRoute(from("restlet:/subscriber/subscribernotifications?restletMethods=POST&restletBinding=#customBinding")
.log(" Determine the event type ")
.choice()
.when().simple("${body} =~ '" + SubscriberConstants.CANCEL_SUBSCRIBER + "'").to("direct:cancelSubscriber")
}

XML DSL - callLink between REST DELETE and Apache Camel Route Call
<delete uri="/order/modify/modifyOrder">
<to uri="direct:modifyOrder" />
</delete>

XML DSL - callLink between REST PUT and Apache Camel Route Call
<put uri="/order/modify/modifyOrder">
<to uri="direct:modifyOrder" />
</put>

XML DSL - callLink between ApacheCamel Route and Apache Camel Route Call
<from uri="direct:submitOrder" />
<to uri="direct:fanAuthorization" />

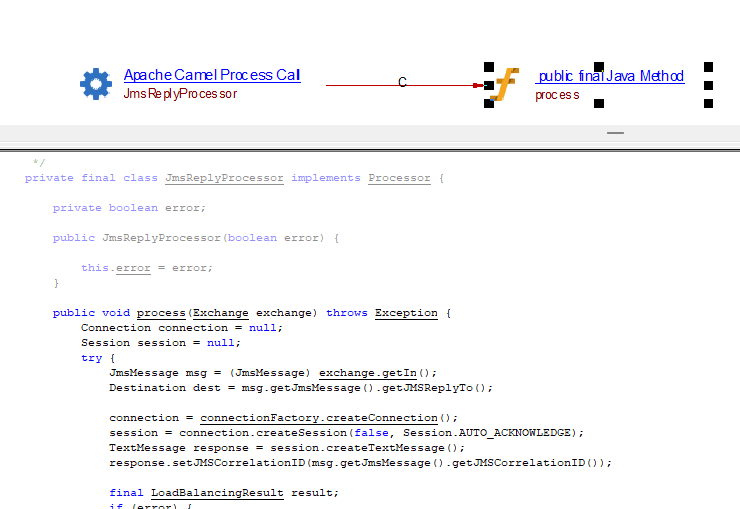

Java DSL - callLink between Java method object and Apache Camel Process Call
public class MongoDBInsertRouteBuilder extends RouteBuilder {
@Override
public void configure() {
if (replicationBatch) {
from("jms:queue://" + replicationNode.getDestination() + "?disableReplyTo=true&concurrentConsumers=" + replicationNode.getMaxCapacity())
.process(new JmsReplyProcessor(false))
.to("bean:securityContextHelper?method=createBatchServerSecurityContext");
}
}

Java DSL - useInsertLink between REST POST and MongoDB Collection
public class MongoDBInsertRouteBuilder extends RouteBuilder {
@Override
public void configure() {
from("jetty:http://0.0.0.0:8081/hello?httpMethodRestrict=POST")
.log("Called insert API")
.to("mongodb:myDb?database=test&collection=test&operation=insert")
.setBody(simple("${body}"));
}
}

Java DSL - useDeleteLink between REST GET and AWS S3 Bucket
public class AwsRouteBuilder extends RouteBuilder {
@Override
public void configure() {
from("jetty:http://0.0.0.0:8081/s3?httpMethodRestrict=GET")
.log("Called s3 delete API")
.to("aws2-s3://customer-cart?amazonS3Client=#s3Client&operation=deleteBucket")
.setBody(simple("${body}"));
}
}

Java DSL - callLink between Apache Camel Route and Apache Camel Route Call
public void unenroll()
{
from("direct:unenrollSubscriber")
.process("prepareInputToUnEnroll")
.to("invokeUnenrollService")
.log("Unenroll Service Status Code in MobileSplit :: ${in.headers.CamelHttpResponseCode}")
.choice()
.when().simple("${in.headers.CamelHttpResponseCode} =~ "+ "'"+SubscriberConstants.RESPONSE_SUCCESS_CODE+"'"
+ " || ${in.headers.CamelHttpResponseCode} =~ '"+SubscriberConstants.ACCEPTED_CODE+"'")
.to("direct:retireRecord")
.process(SubscriberConstants.RESPONSE_HANDLER)
.otherwise()
.setBody().constant(SubscriberConstants.MESSAGE_UNENROLLMENT_UNSUCCESSFUL)
.process(SubscriberConstants.RESPONSE_ERROR_HANDLER)
.endChoice().end();
}

Java DSL - callLink between Apache Camel Route (seda) and Apache Camel Route Call (direct)
public void configure() throws Exception {
from("seda:largeListConsumer?concurrentConsumers=1&size=1000&timeout=0&blockWhenFull=true")
.routeId("largeListConsumer")
.to("direct:processFile")
.end();
}

XML DSL - callLinks between Rest POST service and Bean Call, Process Call
<from id="_from1" uri="restlet:/addp/v1/account/profiles?restletMethods=POST&restletBinding=#customBinding"/>
<doTry id="_doTrymp">
<to id="_to_MAN1" uri="bean:restServiceImpl?method=manageProfile"/>
<process id="_manageProfileService" ref="manageProfileService"/>

Java DSL - callLinks between Rest POST service and Bean Call, Process Call
public void subscriberServiceRoute()
{
ajscRoute.setRoute(from("restlet:/subscriber/subscribernotifications?restletMethods=POST&restletBinding=#customBinding")
.bean("SubscriberNotificationBeans","getSubscriberNotifications(exchange)")
.process("decideEventType"));
}

XML DSL - callLink between Apache Camel Route and Bean Call
<from uri="direct:submitOrder" />
<interceptFrom id="_interceptFrom2">
<to id="submitOrderCamelInterceptor" uri="bean:camelInterceptor?method=invokepreInterceptorChain" />
</interceptFrom>

XML DSL - callLink between Apache Camel Route and Process Call
<from id="_from_D4" uri="direct:fanAuthorization" />
<process ref="prepareProfileInputData" />

Java DSL - callLinks between Apache Camel Route and Bean Call, Process Call
public void cancelSubscriber() {
from("direct:cancelSubscriber").process("prepareInputToAddpDeviceDetails")
.bean("inquireEnterpriseDeviceDeploymentDetails", "inquireDeviceDetailsByCtn(${body})");
}

XML DSL - callLinks between REST Post Service and JDBC Query
<from uri="restlet:/user?restletMethod=POST"/>
<setBody>
<simple>select * from user ORDER BY id desc LIMIT 1</simple>
</setBody>
<to uri="jdbc:dataSource"/>

<route id="createUser">
<from uri="restlet:/user?restletMethod=POST"/>
<setBody>
<simple>insert into user(firstName, lastName) values('${header.firstName}','${header.lastName}');
CALL IDENTITY();
</simple>
</setBody>
<to uri="jdbc:dataSource"/>

Java DSL - callLink between REST Post Service and JDBC Query
public void configure() {
from("restlet:/user?restletMethod=POST")
.setBody(simple("select * from user ORDER BY id desc LIMIT 1"))
.to("jdbc:dataSource");
}

public void configure() {
from("restlet:/user/{userId}?restletMethods=GET,PUT,DELETE")
.setBody(simple("update user set firstName='${header.firstName}', lastName='${header.lastName}' where id = ${header.userId}"))
.to("jdbc:dataSource");
}

Java DSL - callLink between JMS Queue Receive and JMS Queue Call
public void configure() throws Exception
{
from("jms:JmsQueue").bean(ProcessingBean.class, "doSomething").to("jms:redirected");
}

XML DSL - callLink between File and File Call
<route id="fileRoute2">
<from uri="file:home/customers/new?fileName=new.xml"/>
<to uri="file://home/customers/old"/>
</route>

Java DSL - callLink between File and File Call
public void configure() throws Exception {
from("file:home/customers/old")
.routeId("transfer")
.log(LoggingLevel.INFO, "com.toyota.tme.cws.transform.route.error", "Transferring File - ${file:name}")
.to("file:home/customers/new")
.end();
}

Java DSL - callLink between File and Bean Call
public void configure () throws Exception {
from("file://inputdir?fileName=order.xml")
.routeId("readFilefromDir")
.log(LoggingLevel.INFO, "com.toyota.tme.cws.transform.route.error", "Processing File - ${file:name}")
.bean("FileBusiness", "moveToSedaQueue")
.end();
}

Java DSL - callLink between Apache Camel Route and Kafka Topic Call
public void configure () throws Exception {
from("direct:start")
.to("kafka:localhost:8080?topic=testkafkaprod3");
}

Java DSL - callLink between Kafka Topic Receive and File Call
public void configure () throws Exception {
from("kafka:localhost:8080?topic=testkafkacon1&zookeeperHost=localhost&zookeeperPort=2181&groupId=group1").to("file:input");
}

callLinks in the complete transaction







Limitations
- Unknown queue/process/bean/route/file/jms/kafka object is created in case where the exact name can’t be retrieved
- Routes defined using route templates result in unknown route objects
- All other route components are ignored. Any Route starting with a component not mentioned in the Object section , the whole of the Route with its components will be ignored.
- One of the signature for the overloaded method idempotentConsumer method of org.apache.camel.model.ProcessDefinition is not supported. This suspends the creation of the objects for the components in that route following this method.
- Current version does not support Kafka topic using Kafka idempotent repository
- Kafka topic receive/call object is always created by the name whatever is present in Kafka component topic. There is a possibility that name mentioned of the topic is an alias and refers to something else. Due to some design constraints, it will not be evaluated to refer to the exact value. Hence, object will be created in the name present in Kafka component.
- In case of AWS-S3 copy operation, only source bucket is considered currently.
