Legacy support of MongoDB for TypeScript

CAST supports MongoDB via its com.castsoftware.typescript extension. Details about the support provided for TypeScript source code is discussed below.

WARNING: This documentation page is for com.castoftware.typescript from 1.13.x to 1.17.x. If you need to view documentation for more recent releases see here.

Supported Libraries

The following libraries are supported:

MongoDB
Mongoose
Prisma

Objects

Icon	Description
	Node.js MongoDB connection
	Node.js unknown MongoDB connection
	Node.js MongoDB collection
	Node.js unknown MongoDB collection

Supported MongoDB

Supported links

Link Type	Source and destination of link	Supported APIs
useInsertLink	Between TypeScript Function/Method/Module and Node.js MongoDB collection	db.collection.insert db.collection.insertMany db.collection.insertOne
useUpdateLink	Between TypeScript Function/Method/Module and Node.js MongoDB collection	db.collection.bulkWrite db.collection.findAndModify db.collection.findOneAndReplace db.collection.findOneAndUpdate db.collection.replaceOne db.collection.update db.collection.updateMany db.collection.updateOne
useDeleteLink	Between TypeScript Function/Method/Module and Node.js MongoDB collection	db.collection.deleteMany db.collection.deleteOne db.collection.drop db.collection.findOneAndDelete db.collection.remove
useSelectLink	Between TypeScript Function/Method/Module and Node.js MongoDB collection	db.collection.aggregate db.collection.count db.collection.countDocuments db.collection.createIndex db.collection.createIndexes db.collection.distinct db.collection.dropIndex db.collection.dropIndexes db.collection.ensureIndex db.collection.estimatedDocumentCount db.collection.find db.collection.findOne db.collection.isCapped db.collection.mapReduce db.collection.reIndex db.collection.stats db.collection.watch

Example

Taking the following codes:

import * as http from 'http';
import {MongoClient} from 'mongodb';

const server = http.createServer(async (req, res) => {
  await new Promise((resolve, reject) => {
    MongoClient.connect('mongodb://localhost:2701/mongodb', function(err: any, client: any) {
      client.db('admin').collection('docs').findOne().then(
        (resDB: any) => {
          res.end('${resDB}');
          client.close();
        },
        (err: any) => {
          res.end('${err}');
          client.close();
        },
      );
    });
  });
});

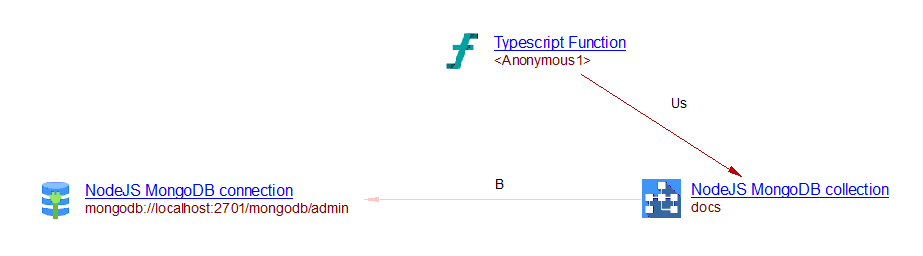

In this example, a ‘Node.js MongoDB connection’ and a ‘Node.js MongoDB collection’ objects are created. This extension creates a ‘useSelect’ link from function ‘Anonymous1’ to the collection ‘docs’:

Supported Mongoose

Supported links

Link Type	Source and destination of link	Supported APIs
useInsertLink	Between TypeScript Function/Method/Module and Node.js MongoDB collection	model.create model.insertMany
useUpdateLink	Between TypeScript Function/Method/Module and Node.js MongoDB collection	model.aggregate model.findByIdAndUpdate model.findOneAndUpdate model.findOneAndReplace model.replaceOne model.updateOne model.updateMany
useDeleteLink	Between TypeScript Function/Method/Module and Node.js MongoDB collection	model.deleteOne model.deleteMany model.findByIdAndDelete model.findOneAndDelete
useSelectLink	Between TypeScript Function/Method/Module and Node.js MongoDB collection	model.exists model.find model.findOne model.findById model.where

Example

Taking the following codes:

import * as mongoose from 'mongoose'

class DbService {
  private db: any;
  private dbConn: any = null;
  constructor (conn: any = connection) {
    this.dbConn = conn
  };
  connect (): Promise<string> {
    mongoose.connect('mongodb://localhost:2701/mongoose', this.dbConn.options)
      .then(success => {
        this.db = mongoose.connection
      })
  }
  async findbyId (tprid, id?) {
    response = await this.db.models.Engagement.find(query);
  }
}

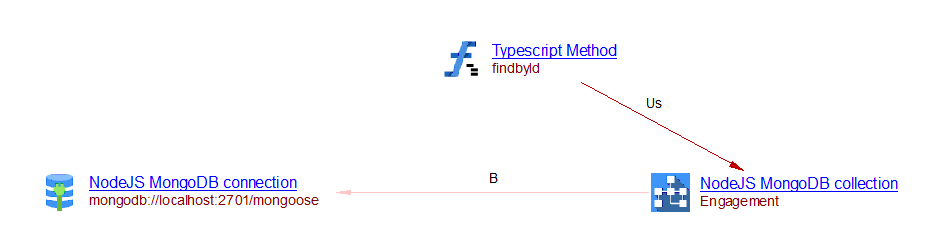

In this example, a ‘Node.js MongoDB connection’ and a ‘Node.js MongoDB collection’ objects are created. This extension creates a ‘useSelect’ link from method ‘findbyId’ to the collection ‘Engagement’:

Supported Prisma

See Node.js - Prisma support - MongoDB database.
