PetaPoco - 1.0

Extension ID

com.castsoftware.dotnet.petapoco

What’s new?

Please see Release Notes for more information.

Description

This extension provides support for the PetaPoco and NPoco .NET frameworks.

In what situation should you install this extension?

This extension should be installed when analyzing a .NET project that uses the Petapoco/NPoco framework, and you want to view CRUD transactions of the NPoco objects. Links to corresponding SQL database tables can also be resolved, provided that the SQL database has been extracted and DDL has been created.

Technology support

The following libraries are supported by this extension:

Language Library name Namespace Version Supported
C# PetaPoco PetaPoco Up to 6.x
C# NPoco NPoco Up to 5.x

Compatibility

CAST Imaging Core release Supported
8.4.x
8.3.x

Download and installation instructions

For applications using any of the above mentionned libraries, this extension will be automatically installed. For upgrade, if the Extension Strategy is not set to Auto Update, you can manually upgrade the extension.

What results can you expect?

Once the analysis/snapshot generation has completed, you can view the below objects and links created.

Objects

Icon Description Comment
entity_icon NPoco Entity An object is created for each PetaPoco/NPoco Persistent Object
entity_operation NPoco Entity Operation An object is created for each PetaPoco/NPoco Persistent Object CRUD operation
unknown_entity_icon NPoco Unknown Entity An object is created for when PetaPoco/NPoco Persistent Object cannot be resolved
unknown_entity_operation NPoco Unknown Entity Operation An object is created for each PetaPoco/NPoco Persistent Object CRUD operation and respective Entity cannot be resolved
sql_query_icon NPoco SQL Query An object is created for each direct SQL query operation found in PetaPoco/NPoco project and resolved in a method call
unknown_sql_query_icon NPoco Unknown SQL Query An object is created for each direct SQL query found in PetaPoco/NPoco project and the exact query cannot be resolved
Link Type Caller Callee APIs Supported
callLink C# Method NPoco Entity Operation
NPoco Unknown Entity Operation
PetaPoco.Database.Insert
PetaPoco.Database.Update
NPoco.Database.UpdateAsync
NPoco.Database.UpdateMany
NPoco.Database.UpdateManyAsync
PetaPoco.Database.Delete
PetaPoco.Database.Exists
PetaPoco.Database.Save
NPoco.Database.Insert
NPoco.Database.InsertAsync
NPoco.Database.InsertBulk
NPoco.Database.InsertBulkAsync
NPoco.Database.InsertBatch
NPoco.Database.InsertBatchAsync
NPoco.Database.SingleById
NPoco.Database.SingleOrDefaultById
NPoco.Database.Update
NPoco.Database.Delete
NPoco.Database.DeleteAsync
NPoco.Database.DeleteMany
NPoco.Database.DeleteManyAsync
NPoco.Database.Exists
NPoco.Database.IsNew
NPoco.Database.Save
NPoco.Database.SaveAsync
callLink C# Method NPoco SQL Query
NPoco Unknown SQL Query
PetaPoco.Database.SingleOrDefault
PetaPoco.Database.Single
PetaPoco.Database.FirstOrDefault
PetaPoco.Database.First
PetaPoco.Database.Fetch
PetaPoco.Database.Query
PetaPoco.Database.Page
PetaPoco.Database.Delete
PetaPoco.Database.Execute
NPoco.Database.Single
NPoco.Database.SingleAsync
NPoco.Database.SingleOrDefault
NPoco.Database.First
NPoco.Database.FirstAsync
NPoco.Database.FirstOrDefault
NPoco.Database.Fetch
NPoco.Database.FetchAsync
NPoco.Database.Query
NPoco.Database.Page
NPoco.Database.PageAsync
NPoco.Database.Delete
NPoco.Database.Execute
NPoco.Database.ExecuteAsync
useLink NPoco Entity Operation Table, View Created by SQLAnalyzer when DDL source files are analyzed
callLink NPoco Entity Operation Procedure Created by SQLAnalyzer when DDL source files are analyzed
useLink NPoco SQL Query Table, View Created by SQLAnalyzer when DDL source files are analyzed
callLink NPoco SQL Query Procedure Created by SQLAnalyzer when DDL source files are analyzed

Examples

Persistent Objects CRUD

Entity Object
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using PetaPoco;
using System.ComponentModel.DataAnnotations;
using System.ComponentModel;

namespace PetaPocoWebTest.Poco
{
	[TableName( "tag")]
	public class Tag
	{
		public int Id {get; set;}

		[Column( "tagName")]
		public string TagName {get; set;}

		public Tag() : this( string.Empty)
		{
		}

		[ResultColumn]
		public List<Article> Articles {get; set;}

		public override string ToString()
		{
			return this.TagName;
		}

		public Tag( string tagName)
		{
			this.TagName = tagName;
			this.Id = int.MinValue;
			this.Articles = new List<Article>();
		}
	}
}

Insert Operation
using SubSonic;
public bool Insert( Tag tag)
		{
			_database.Insert( "tag", "id", true, tag);

			return true;
		}

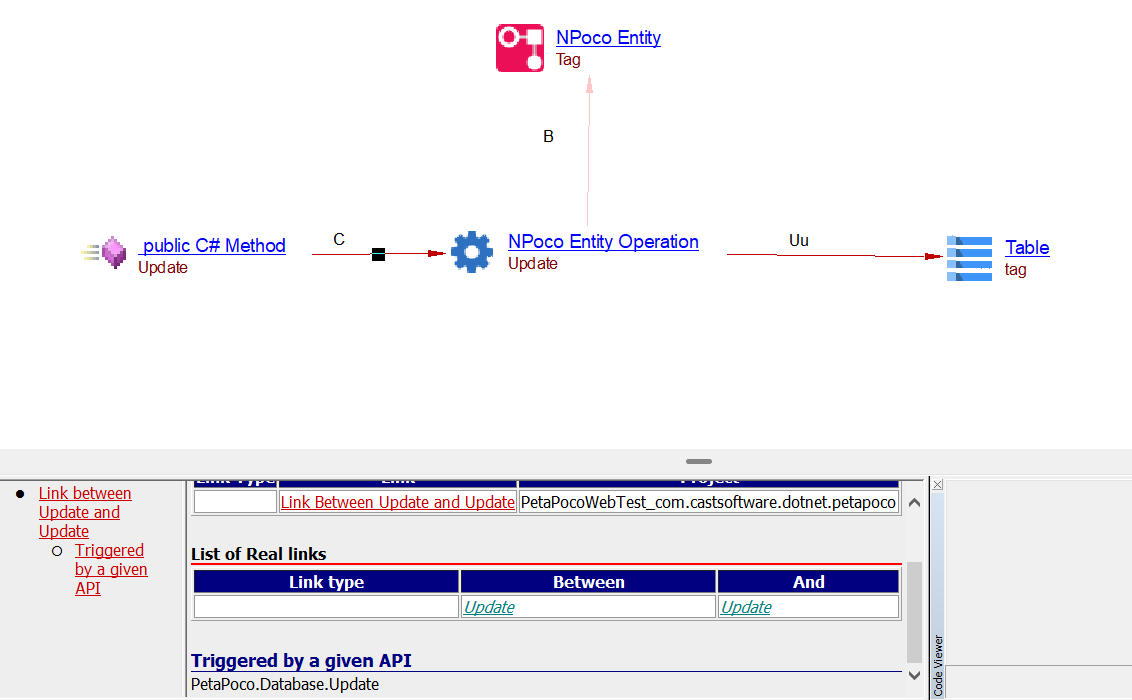

Update Operation
public bool Update( Tag tag)
		{
			_database.Update( tag);

			return true;
		}

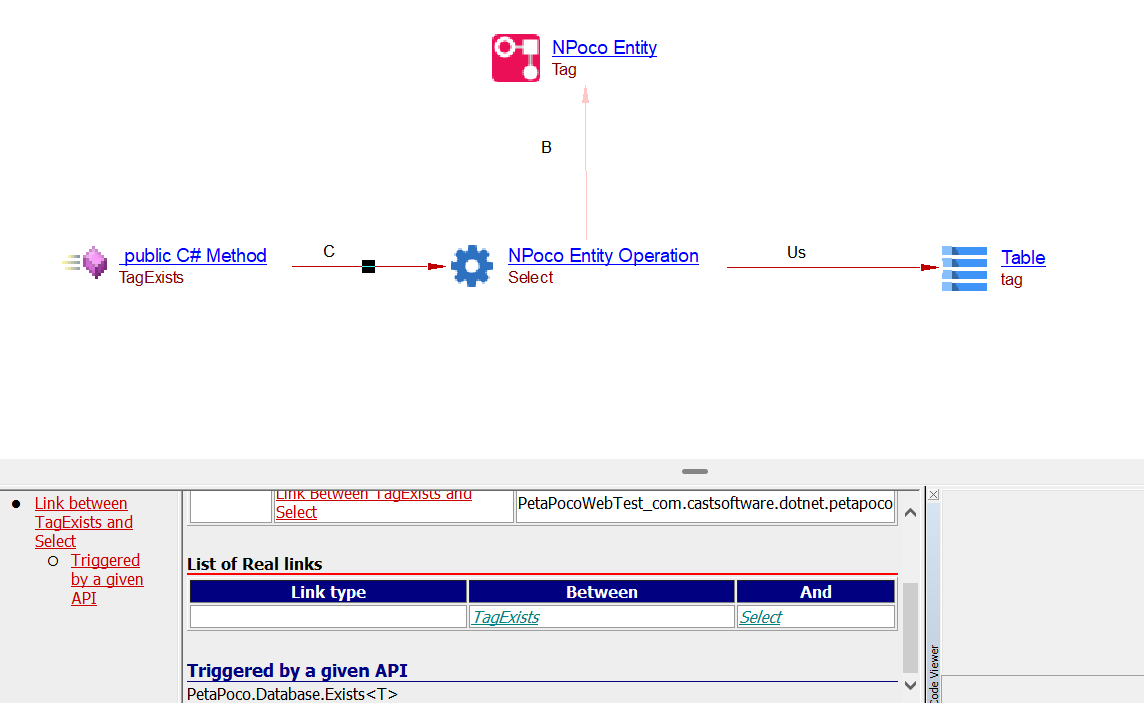

Select Operation
public bool TagExists(int tagId)
		{
			return _database.Exists<Tag>(tagId);
		}

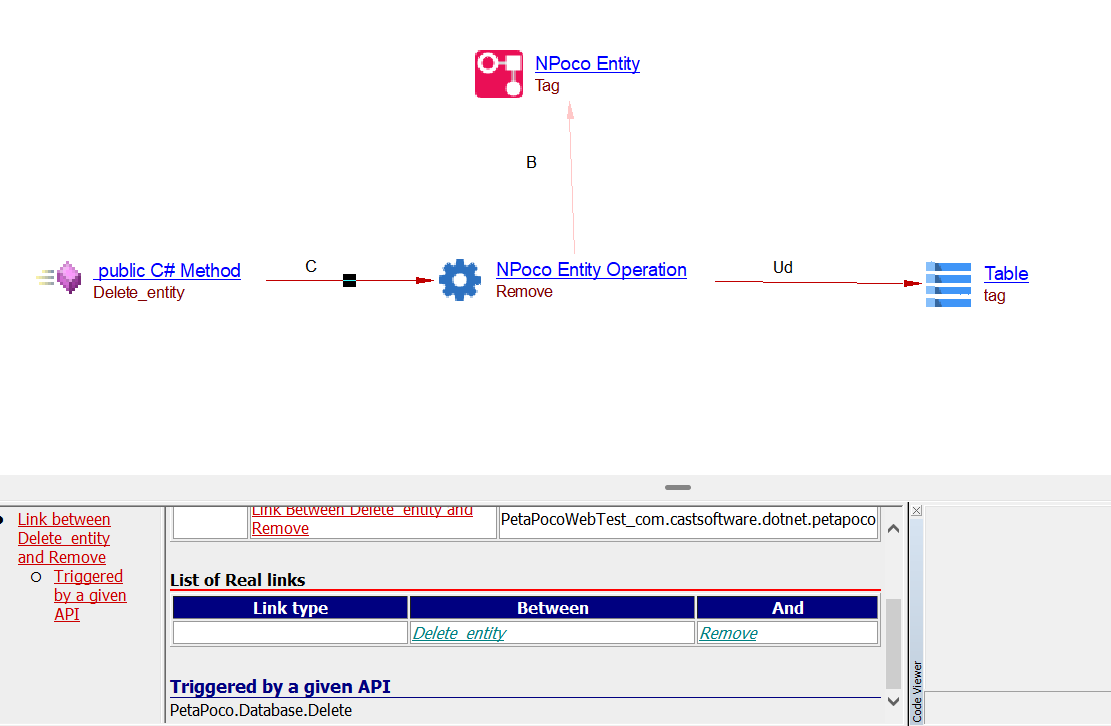

Delete Operation
public bool Delete_entity(Tag tag)
		{
			using (var scope = _database.GetTransaction())
			{
				int rowsAffected = _database.Delete(tag);

				if (rowsAffected > 0)
				{
					scope.Complete();
					return true;
				}
				else
				{
					return false; // Deletion failed or the entity did not exist
				}
			}
		}

Query Operation
public List<Tag> RetrieveAll()
		{
			return _database.Fetch<Tag, Article, Author, Tag>(
				new TagRelator().Map,
				"select * from tag " +
				"left outer join articleTag on articleTag.tagId = tag.id " +
				"left outer join article on article.id = articleTag.articleId " +
				"join author on author.id = article.author_id order by tag.tagName asc").ToList();
		}
