Storing analyzed source code in encrypted format

Overview

CAST Imaging can be configured to store analyzed source code in an encrypted format within your PostgreSQL instance(s). Encryption uses PostgreSQL’s built-in pgcrypto module and operates at the PostgreSQL host level - when enabled, all application schemas on that host will store source code in encrypted format (in the _local and _central schemas).

Important considerations

Before enabling source code encryption, note the following:

• Encryption and decryption introduce performance overhead during both source code upload (analysis) and retrieval (viewing in the UI).
• Encrypted source code requires more storage space than unencrypted source code.
• There is no tooling to change encryption keys once applied. To change a key you must re-upload the source code by running a new analysis.
• This feature should be enabled after a “from scratch” installation and after updating to a new release of CAST Imaging which supports the feature.

Configuration

Step 1 - Install the pgcrypto module

Run the following SQL on each PostgreSQL instance that will store encrypted source code - the module will be installed to the public schema:

SET search_path = public;
CREATE EXTENSION IF NOT EXISTS pgcrypto;

You can check that the module has been installed by running:

SELECT * FROM pg_available_extensions WHERE name='pgcrypto';

Step 2 - Create an encryption key file

Create a plain text .ini file with the following structure:

[host:port,database]
encryption_key_default=MYKEY

Guidelines:

• The host name must use lowercase letters (ip address or fully qualified domain name)

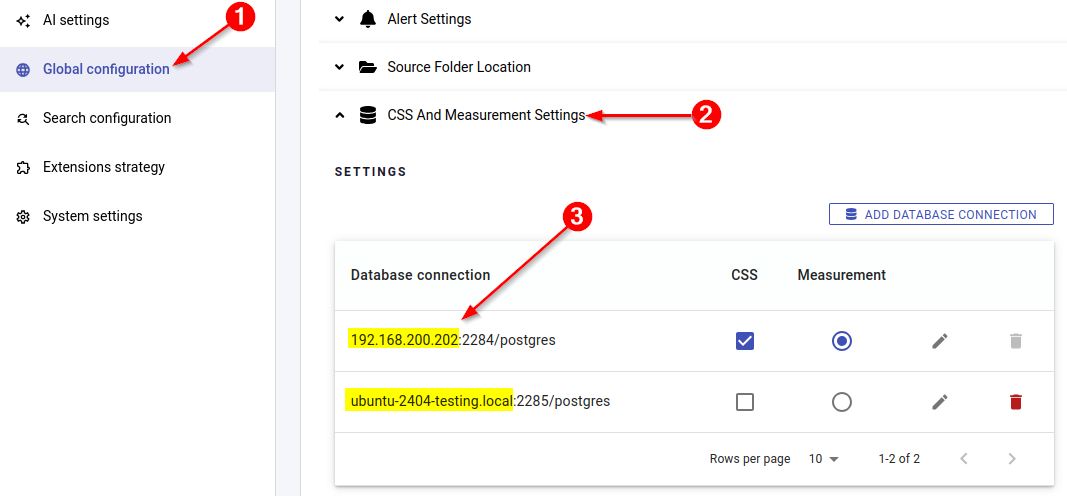

• Ensure that the host name used in your .ini file exactly match the host name configured in CAST Imaging. A mismatch will prevent decryption. For example:

• If the database value is omitted, postgres is assumed.
• Avoid using localhost as the host name, especially in Docker environments - use the actual hostname instead.
• Use a completely random encryption key. Using a unique key per PostgreSQL instance is recommended.
• The file can be stored on a shared network drive (recommended so all nodes can access a single copy to ease maintenance) or on the local file system of each machine that requires the file. Note that since the file contains the encryption key, appropriate permissions should be granted so that unauthorised access is prevented.

Example - single PostgreSQL instance:

[my_postgresql1:2284,postgres]
encryption_key_default=J3citp%FNYF*qa7c&Ps

Example - multiple PostgreSQL instances:

[my_postgresql1:2284,postgres]
encryption_key_default=J3citp%FNYF*qa7c&Ps

[my_postgresql2:5432,postgres]
encryption_key_default=AFK%3JdMEn99WypMVSCU

Current known issue on custom database names

Where the database value is anything other than postgres, for example postgres_362, specific configuration is required in the .ini file - the database should be configured twice - first as normal and then with a LIBPQ entry, for example:

[my_postgresql1:2284,postgres_362]
encryption_key_default=J3citp%FNYF*qa7c&Ps
[LIBPQ:my_postgresql1:2284,postgres_362:2284,postgres_362]
encryption_key_default=J3citp%FNYF*qa7c&Ps

Step 3 - Set the environment variable

The CASTCONNECTIONEXTRAPARAMETERS environment variable must point to the .ini file on every machine running any of the following CAST Imaging components:

• imaging-services
• imaging-viewer
• analysis-node
• dashboards

Microsoft Windows

Create a new SYSTEM environment variable on the relevant machine(s):

• Single machine deployment: apply this on the host machine.
• Distributed deployment: apply this on each machine.

Restart all affected host servers after setting the variable.

Docker/Podman/Kubernetes

The same approach applies for both single machine and distributed deployments. A docker-compose.override.yml file is required in each affected installation directory. The file:

• defines a volume that maps the folder containing the .ini file on the host into the container
• sets the CASTCONNECTIONEXTRAPARAMETERS environment variable to the container-internal path of the .ini file

The .ini file can be stored anywhere on the host machine - only the folder containing it needs to be specified in the volume.

analysis-node - create/edit the following file:

/opt/cast/installation/imaging-node/docker-compose.override.yml

services:
  nodev3:
    volumes:
      - /opt/cast:/app/ssl
    environment:
      CASTCONNECTIONEXTRAPARAMETERS: /app/ssl/myfile.ini

imaging-services - create/edit the following file:

/opt/cast/installation/imaging-services/docker-compose.override.yml

services:
  control-panel:
    volumes:
      - /opt/cast:/app/ssl
    environment:
      CASTCONNECTIONEXTRAPARAMETERS: /app/ssl/myfile.ini

imaging-viewer - create/edit the following file:

/opt/cast/installation/imaging-viewer/docker-compose.override.yml

services:
  etl:
    volumes:
      - /opt/cast:/app/ssl
    environment:
      CASTCONNECTIONEXTRAPARAMETERS: /app/ssl/myfile.ini

dashboards - create/edit the following file:

/opt/cast/installation/imaging-dashboards/docker-compose.override.yml

services:
  dashboards:
    volumes:
      - /opt/cast:/app/ssl
    environment:
      CASTCONNECTIONEXTRAPARAMETERS: /app/ssl/myfile.ini

In all examples, /opt/cast is the path on the host to the folder containing the .ini file - replace this with the actual path where the file is stored. The container-internal mount point /app/ssl and the env var value /app/ssl/myfile.ini should remain as shown (but you can change the .ini file name to match your own).

Run the following in each affected installation directory to restart the containers and apply the changes:

$ sudo docker compose down
$ sudo docker compose up -d
$ sudo docker ps

Step 4 - run a new analysis and check encryption

Check that the source code is stored in encrypted format in the application schema (*_local) by running a new analysis of your existing application, or onboard and analyze a new application.

Then run the following SQL on analysis completion (where <app_name> is the name of the application):

select source_path ,source_id,
	source_error,source_code,source_crc
from <app_name>_local.dss_code_sources

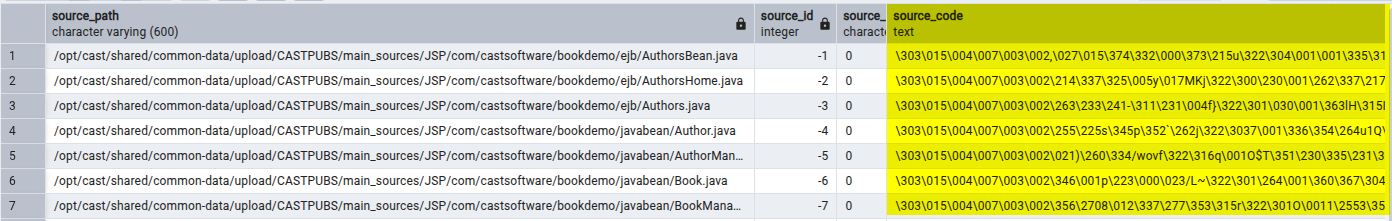

If source code is correctly encrypted, you will see the following in the source_code column (i.e. random characters instead of the source code):
