HTTPS configuration for Linux via Docker

Overview

Configuring HTTPS for Linux via Docker installations involves the use of an NGINX web server in reverse proxy mode placed in front of the various CAST Imaging components. All requests for CAST Imaging v3 services will then be handled by NGINX and forwarded to the relevant service.

Requirements

CAST Imaging v3 must be installed and up and running before you proceed.
NGINX can be installed on a dedicated machine or on an existing machine where CAST Imaging Docker containers are already running.
A public/private key pair is required, which are installed on NGINX (i.e. NGINX handles the HTTPS protocol).
CAST highly recommends using CA (Certificate Authority) signed certificates, rather than self-signed. This documentation assumes that CA signed certificates are in use.
Some minor changes are required to CAST Imaging Docker containers, detailed in the instructions below.
Commands detailed below require execution with a user in the sudoers list.

Step 1 - generate public/private keys

A public (e.g.: public_key.crt) and private (e.g. private_key.key) key pair in PEM format is required by NGINX CAST highly recommends that you do not use self-signed certificates - instead you should use certificates signed by a CA (Certificate Authority).

To generate a private key and a CSR (certificate signing request) which can be sent to a Certificate Authority, run the following command on the machine where NGINX is installed, with elevated permissions (see also https://docs.openssl.org/1.1.1/man1/req/ ):

$ openssl req -new -newkey rsa:2048 -nodes -keyout private_key.key -out csr.csr

Where:

req - indicates that we want a CSR
-new - generates a brand new CSR
-newkey - generates a new private key
rsa:2048 - generates a 2048-bit RSA private key
-nodes - no DES, meaning do not encrypt the private key in a PKCS#12 file
-keyout - defines the name of the private key file
-out - defines the name of the CSR file

You can of course, change any of the parameters to match your own requirements, these are simply suggestions. Ensure that when prompted you fill in the correct FQDN (fully qualified domain name) matching your host machine: this will be used by end users to access CAST Imaging. Retain the private_key.key file and use the contents of the csr.csr file to generate the public_key.crt at your chosen Certificate Authority.

Step 2 - Install NGINX

Install NGINX: this is beyond the scope of this document, instead please consult the following third-party documentation: https://nginx.org/en/docs/install.html .

Step 3 - Configure NGINX

When NGINX is installed, you now need to configure it. There are two parts to this process:

configure the HTTPS element
configure the reverse proxy

Step 3a - Configure HTTPS

See also Configuring HTTPS servers for more information about HTTPS setup with NGINX.

Out of the box, NGINX contains one “vHost” called “default”, serving various default files on port 80. CAST recommends creating a new vHost and using this specifically for the HTTPS requirements. To add a new vHost, create a new empty .conf file using an editor such as vi or nano in the following location on disk (in our example the file is named with the machine’s FQDN imaging.corp.domain.com):

/etc/nginx/conf.d/imaging.corp.domain.com.conf

Paste in the following server block configuration to define the HTTPS protocol and then save the file:

server {
    listen 443 ssl;
    server_name imaging.corp.domain.com;
    server_tokens off;
    ssl_certificate path/to/public_key.crt;
    ssl_certificate_key path/to/private_key.key;
    ssl_protocols TLSv1.2;
    ssl_ciphers !EDH:!RC4:!ADH:!DSS:HIGH:+AES128:+AES256-SHA256:+AES128-SHA256:+SHA:!3DES:!NULL:!aNULL:!eNULL;
    ssl_prefer_server_ciphers on;
    ssl_ecdh_curve secp384r1;

    location / {

    }
}

Where:

listen 443 ssl - indicates that we want NGINX to listen on all ipv4 addresses on the server, on port 443
server_name - indicates the FQDN on which NGINX will listen for incoming connections
server_tokens off - disables emitting NGINX version numbers on error pages and in the “Server” response header field.
ssl_certificate / ssl_certificate_key - paths to the public_key.crt and private_key.key files on the local disk
ssl_protocols - specifies the protocol to use, a minimum of TLSv1.2 is recommended
ssl_ciphers - sets the SSL ciphers to use. This is only a recommendation and you should choose your own ciphers
ssl_prefer_server_ciphers - specifies that server ciphers should be preferred over client ciphers
ssl_ecdh_curve - specifies a curve for ECDHE ciphers (if you use them)

Step 3b - Configure reverse proxy

The next step involves configuring NGINX to function in reverse proxy mode, i.e. to accept incoming connections and forward them to the relevant CAST Imaging services.

Edit the vHost configuration file (the same one you created in the previous step), add the following parameters to the location / {} block and then save the file:

location / {
	proxy_http_version 1.1;
    proxy_buffering off;
    proxy_cache off;
    proxy_cookie_flags ~.* secure samesite=None; # Required in ≥ 3.4.0-funcrel only
    proxy_pass http://imagingv3_VM.corp.castsoftware.com:8090/;
    proxy_redirect off;
    proxy_set_header Connection '';
    proxy_set_header Host $host;
    proxy_set_header X-Forwarded-Proto $scheme;
    proxy_set_header X-Real-IP $remote_addr;
    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    chunked_transfer_encoding off;
    client_max_body_size 100M;
}

Where:

proxy_http_version - sets the HTTP protocol version for proxying, use 1.1
proxy_buffering - enables or disables buffering of responses from the proxied server - set to off
proxy_pass - sets the protocol and address/port of the proxied server - set this to the machine on which the CAST Imaging v3 imaging-services component is installed, using port 8090 (unless you have customized it). The address can be specified as a domain name or IP address
proxy_cache - defines a shared memory zone used for caching. - set to off
proxy_cookie_flags - required in ≥ 3.4.0-funcrel only: sets specific secure flags for cookies - see https://nginx.org/en/docs/http/ngx_http_proxy_module.html#proxy_cookie_flags for more information
proxy_set_header - allows redefining or appending fields to the request header passed to the proxied server - see https://nginx.org/en/docs/http/ngx_http_proxy_module.html#proxy_set_header for more information
chunked_transfer_encoding - allows disabling chunked transfer encoding in HTTP/1.1 - set to off
client_max_body_size - sets the maximum allowed size of the client request body. This limit determines the maximum file size that will be accepted: if your users upload ZIP archive files during the application onboarding, set this to an appropriate limit to accept the file

Additionally, you will also need to add various proxy_set_header parameters to the server {} block created previously:

server {
    ...
    ...
    ...
    proxy_set_header X-Forwarded-For $proxy_protocol_addr; #to forward the original client's IP address
    proxy_set_header X-Forwarded-Proto $scheme; #to forward the original protocol (HTTP or HTTPS)
    proxy_set_header Host $host; #to forward the original host requested by the client
}

Don’t forget to ensure that an unhindered path exists between the machine on which NGINX is installed and the machine running the CAST Imaging v3 imaging-services component, e.g. appropriate firewall rules/VLAN configuration is in place.

Step 4 - Update imaging-services SSO (Keycloak) component

To ensure that the imaging-services SSO (Keycloak) component functions correctly behind the NGINX reverse proxy, you need to add some entries to the following files (these files will be located on disk following a successful installation):

/opt/cast/installation/cast_imaging_services/docker-compose.yml
/opt/cast/installation/cast_imaging_services/.env

docker-compose.yml

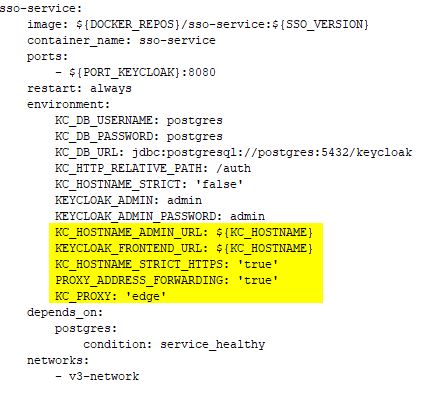

First add the following lines to the services:sso-service:environment block in the file and then save it:

KC_HOSTNAME: ${KC_HOSTNAME}
KC_HOSTNAME_ADMIN_URL: ${KC_HOSTNAME}
KC_HOSTNAME_STRICT_HTTPS: 'true'
KC_PROXY: 'edge'
KC_PROXY_HEADERS: 'xforwarded'
KEYCLOAK_FRONTEND_URL: ${KC_HOSTNAME}
PROXY_ADDRESS_FORWARDING: 'true'

For example:

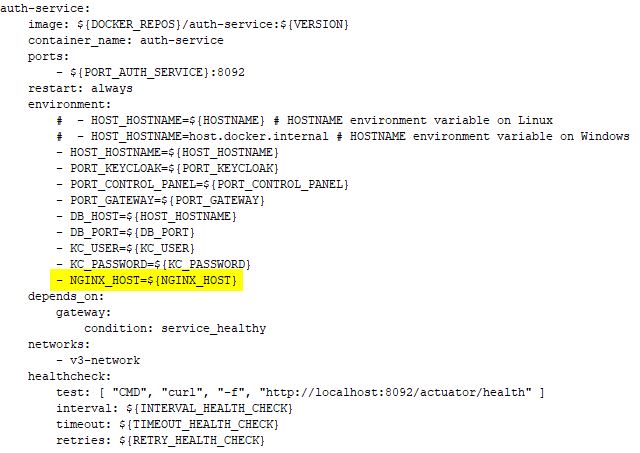

Next, add the following line to the services:auth-service:environment block in the same file and then save it:

NGINX_HOST=${NGINX_HOST}

For example:

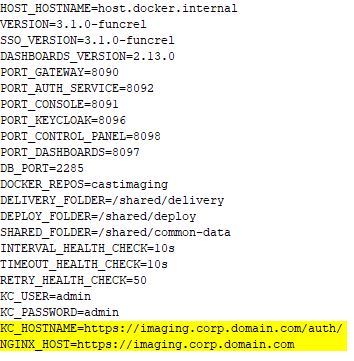

.env

Add the following lines to the end of the file and then save it (where <my_fqdn> is the FQDN defined for the parameter server_name in the server block of the NGINX vHost you created earlier):

KC_HOSTNAME=https://<my_fqdn>/auth/
NGINX_HOST=https://<my_fqdn>

For example:

Step 5 - Restart services

To ensure the changes you have made are taken into account, you should restart the imaging-services component and NIGINX:

imaging-services component

Issue the following command from the /opt/cast/installation/cast_imaging_services/ installation folder:

# docker-compose up -d

This command will rebuild only the images/containers with the changes you have implemented.

NGINX

Issue the following command:

# systemctl restart nginx

Step 6 - Check access and HTTPS

Check that you can access CAST Imaging over HTTPS from the FQDN you declared in the NGINX vHost, e.g. https://imaging.corp.domain.com.
