Sizing definitions

Overview

This document explains the sizing information displayed across CAST Imaging and the SQG dashboards. Sizing information is divided into two categories:

• Application Size
• Measured Size

Each category is explained in the table below:

What is Application Size?

Application Size is a basic count of how many lines of code are in your source code files, including comments.

What’s included?

✅

• Programming files such as .cs, .java, .py, .js
• All lines of code
• Comment lines

What’s not included?

❌

• Empty lines within programming files.
• Non-code files such as .txt, .md, .json, .xml, .uax, .yaml, .yml
• Test code (e.g., files in test/ folders)
• Temporary or system files such as .git, .tmp, .target, .github, .svn, .eclipse, .vs, .vscode, .idea, .bin, .properties

Example

/MyProject
├── src/
│   ├── MainController.cs       ✅ Included
│   ├── DatabaseHelper.java     ✅ Included
│   ├── script.js               ✅ Included
│   ├── info.txt                ❌ Not Included
├── test/
│   ├── MainControllerTest.cs   ❌ Not Included
├── docs/
│   ├── README.md               ❌ Not Included
├── config/
│   ├── settings.json           ❌ Not Included
├── .git/                       ❌ Not Included
├── tmp/                        ❌ Not Included

Where can I see Application Size?

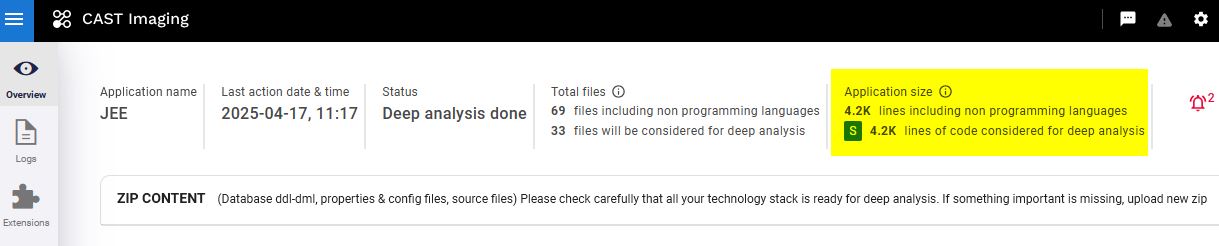

• Analysis Overview page:

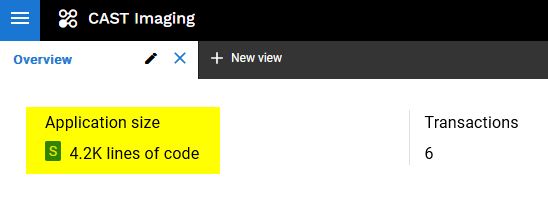

• Viewer Overview page:

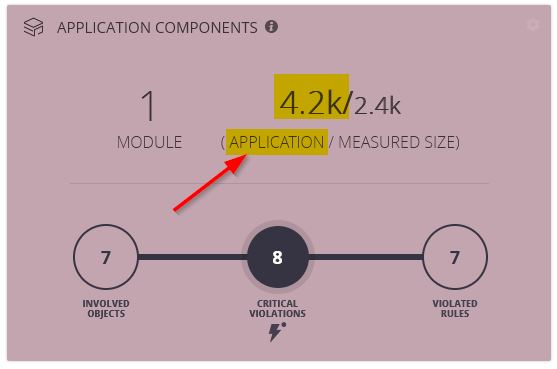

• Application Components tile - Engineering Dashboard:

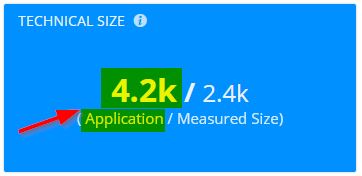

• Technical tile - Management Dashboard:

What is Measured Size?

Measured Size is derived through focusing only on lines of code from artifacts (e.g., methods, constructors, and class members) that contribute directly to the functional implementation of a software component.

What’s included?

✅

• Artifact code written inside classes, functions, methods, constructors etc. that performs actions during program execution.
• Executable statements (assignments, return statements, etc.)
• Control statements (if, for, while, switch, etc.)
• Object and data manipulations
• Method calls and assignments

What’s not included?

❌

• File headers
• Empty Lines
• import or using statements, namespaces
• Package declarations (e.g., package com.example)
• Comment lines

Example

using System;// ❌ Excluded (Import/Using statement)
            // ❌ Excluded (Empty Line)
namespace Sample // ❌ Excluded (Namespace declaration)
{
    public class PaymentDetails  // ✅ Included (Class definition)
    {
       // This is sample code  // ❌ Excluded (Comment Line)
        const int RecordsPerPage = 10;           // ✅ Included (Constant declaration)
        IPaymentlisting objIPaymentlisting;      // ✅ Included (Field declaration)
        public JsonResult CheckStatus(string memberId)           // ✅ Included (method)
        {
            if (string.IsNullOrEmpty(memberId))                  // ✅ Included (Control statement - if)
            {
                return Json("Invalid ID", JsonRequestBehavior.AllowGet); // ✅ Included (Return statement)
            }
            var status = objIPaymentlisting.GetStatus(memberId); // ✅ Included (Method call + assignment)
            return Json(status, JsonRequestBehavior.AllowGet);   // ✅ Included (Return statement)
        }
    }
}

Artifacts considered for Measured Size

This list defines the core code artifacts to be included during parsing, documentation, or static analysis. These represent meaningful logic or structure in a codebase, across most common programming languages.

🔧 Structural Artifacts

• Classes
• Interfaces
• Enums
• Annotations / Attributes

🔁 Executable Artifacts

• Methods
• Functions
• Constructors
• Lambdas / Anonymous Functions
• Procedures
• Stored Procedures
• Triggers
• Static Blocks

🧱 Operational Artifacts

• Constants / Final Variables
• Field / Variable Declarations
• Assignments / Instantiations
• Control Flow Statements (if, switch, for, etc.)
• Try-Catch-Finally Blocks
• Return Statements

🗂️ Data Structure Artifacts

• Database Tables
• Views
• Indexes
• Stored Procedures

Where can I see Measured Size?

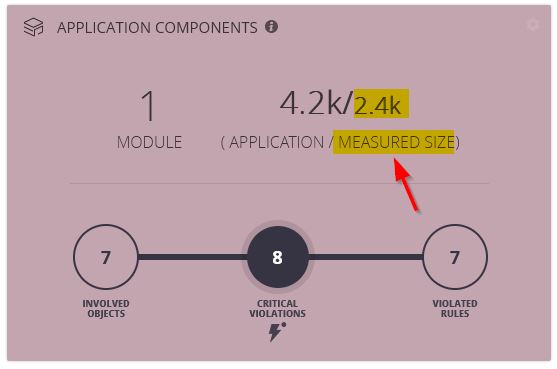

• Application Components tile - Engineering Dashboard:

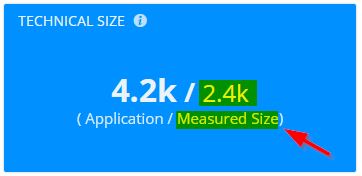

• Technical tile - Management Dashboard:

Example code

The following section takes some example code and provides an explanation of how CAST Imaging counts LOC values for this code using both counting methods. The example code is available as a zip here and contains the following files:

Sample_Code/
    Sample_Code/
        Program.cs ✅ (Included - C# source code)
        README.md ❌ (Excluded - Documentation file)
        SampleCode.csproj ❌ (Excluded - Project configuration file)
        SampleText.txt ❌ (Excluded - Non-programming text file)

There are a total of 15 lines in Program.cs (the only file “included” for LOC counts):

 1using System;
 2using System.Collections.Generic;
 3namespace SampleCode
 4{
 5    public class LinesOfCode
 6    {
 7        // This is a sample code
 8
 9        public string LOCDetails()
10        {
11            return "Lines of code for the application";
12
13        }
14    }
15}

Results with Application Size

Using the Application Size LOC count, CAST Imaging will count the following for Program.cs:

• Included code lines: 12
• Included comment lines: 1
• Excluded empty lines: 2

I.e.:

 1using System;
 2using System.Collections.Generic;
 3namespace SampleCode
 4{
 5    public class LinesOfCode
 6    {
 7        // This is a sample code
 8        public string LOCDetails()
 9        {
10            return "Lines of code for the application";
11        }
12    }
13}

Results with Measured Size

Using the Measured Size LOC count, CAST Imaging will count the following for Program.cs:

• Included code lines: 7
• Excluded comment lines: 1
• Excluded empty lines excluded: 2
• Excluded using statements and namespace declaration: 5

I.e.:

1public class LinesOfCode
2    {
3        public string LOCDetails()
4        {
5            return "Lines of code for the application";
6        }
7    }
