Enlighten - Information - USE Insert or Select or Update Links not created
Purpose
This page explains why USE Insert or Select or Update Links are not created.
Applicable in CAST Version
| Release | Yes/No |
|---|---|
| 8.1.x | ❌ |
| 8.0.x | ❌ |
| 7.3.x | ❌ |
| 7.2.x | ❌ |
| 7.0.x | ✅ |
Details
Situation
Version : 7.0.11
Analyze VB.Net source code with Participating Database (Oracle 10g). Searching for linked objects in Enlighten shows regular “U” link for functions containing Select / Update / Insert query but not the expected “Ui” / “Us” / Uu" links.
Expected :
- Ui Link for Insert Query
- Us Link for Select Query
- Uu for Update Query

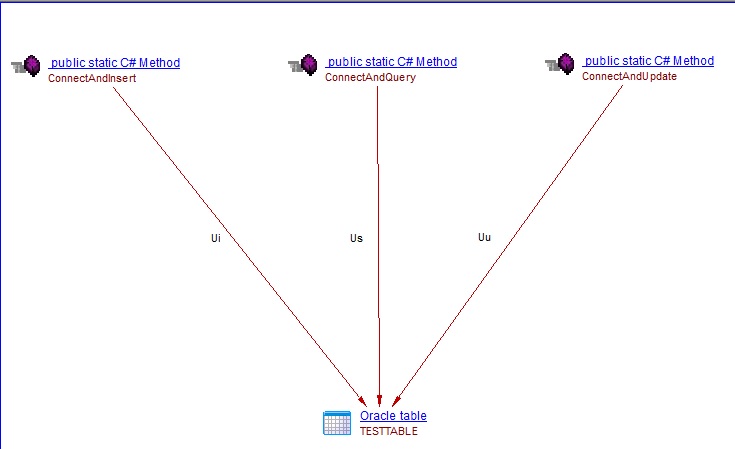

Below image shows the expected USE Insert / Select / Update Links
Solution
This is Normal Behavior since Inference Engine (IE) cannot be enabled in Legacy Analyzer to analyze VB.NET source code, USE Insert / Select / Update links will not be displayed in Enlighten.
Notes / Comments
