Purpose
This page provides information on how to configure the AIP Console to access the Engineering Dashboard for all applications.
For more information on the AIP Console, refer to:
- Official documentation for AIP Console: AIP Console
- For Engineering Dashboard for AIP Console, please see this page: Engineering Dashboard User Guide
CAST Component Version
| Release | Yes/No |
|---|---|
| 1.12.0 | ✅ |
| 1.11.0 | ✅ |
Applicable RDBMS
| RDBMS | Yes/No |
|---|---|
| Oracle Server | N/A |
| Microsoft SQL Server | N/A |
| CSS3 | N/A |
| CSS2 | N/A |
Details
To configure the AIP Console to access the applications from the Engineering Dashboard

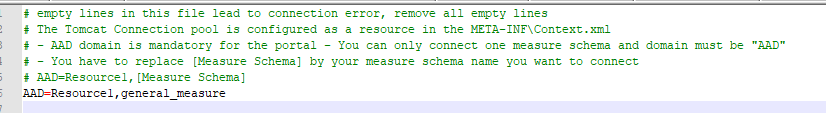

- You need to edit the domains.properties file to include only the details for the Application Analytics Dashboard as shown below.
- The domains.properties file is located in your Tomcat folder - C:\ProgramFiles\Apache Software Foundation<Tomcat Version>\webapps<Engineering Dashboard war folder>\WEB-INF\

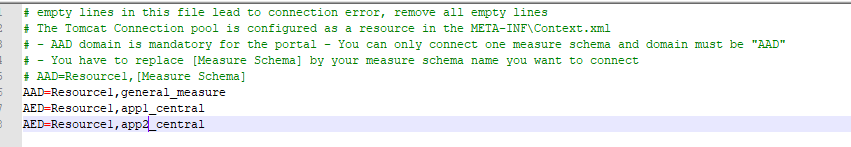

- Once the above is updated, you can run the Snapshot and the AED details will get added to the domains.properties file. as shown below.
- When you access the Engineering Dashboard from the Health Dashboard on AIP Console, you can view the applications now.
- If you do not find the information you are looking for or solution for your problem, please contact CAST Technical Support
